5S SMD 5032 VCXO
Model: 5S Series (SMD 5032 VCXO)
Frequency range: 50~200MHz
Output type: CMOS
Supply voltage: 3.3V
Size: 5.0×3.2×1.2mm
Applications: PC, Base station, Ethernet, SONET, Sever, etc

Specifications and Dimensions

Features of 5S Series SMD 5032 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

5032 size, 1.2mm hign, SMD 5032 VCXO

CMOS output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free




Electrical Specifications Of 5S Series SMD 5032 VCXO

Item /Type5S Series (SMD 5032 VCXO)
Output TypeCMOS
Output Load15pF, or specify
Supply Voltage3.3V
Frequency Range
50~200MHz
Supply Current
60mA Max.
Frequency Stability
±25ppm, ±50ppm, or specify
Operating Temperature
-40~+85℃, or specify
Storage Temperature-55~+125℃
Voltage Vol (Max.) /Voh (Min.)
0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time5ns Max.
Start-up Time
10ms Max.
Duty Cycle
45~55%
Absolute Pulling Range (APR)*
±50ppm Min., or specify
Nominal Control Range0.5 Vcc
Control Voltage Range
0~Vcc
Lineartiy10% Max.
Phase Jitter (12KHz~20MHz)1pS Max.
Packing Unit
1000pcs./Reel

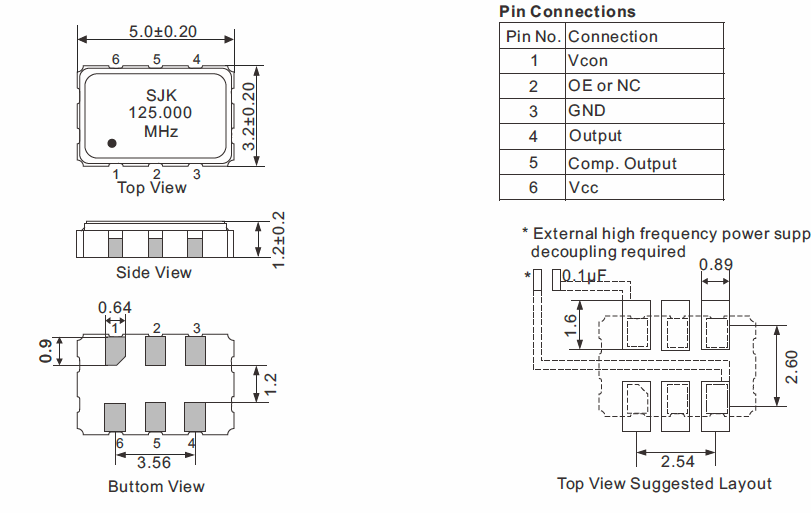

Dimensions[mm]

SMD-5032-VCXO-Dimensions
