HomeDIP Crystal
Products
| Series | Datasheet | Photo | Frequency Range |
Package | Load Capacitance |
Tolerance | Operating Temperature |
|---|---|---|---|---|---|---|---|

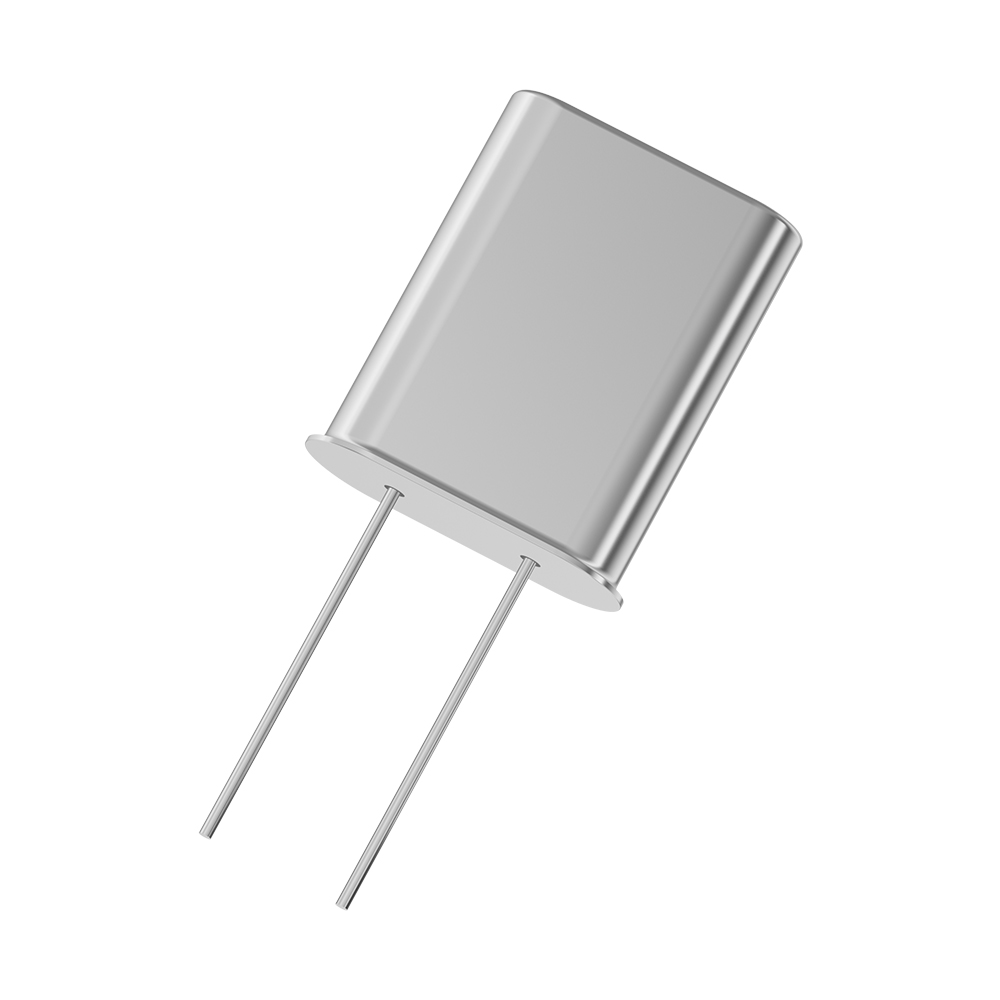

| 6A 49U Crystal Resonator | Datasheet |  |
1~150MHz | HC-49U / 2 leads | 12~32pF | ±10ppm | -40~+85℃ |
| 6B 49S Crystal Resonator | Datasheet |  |
3~100MHz | HC-49S & 49SS / 2 leads | 12~32pF | ±10ppm | -40~+85℃ |
| 6D UM-1 Crystal Resonator | Datasheet |  |
4~200MHz | UM-1 / 2 leads | 9~50pF | ±10ppm | -40~+85℃ |

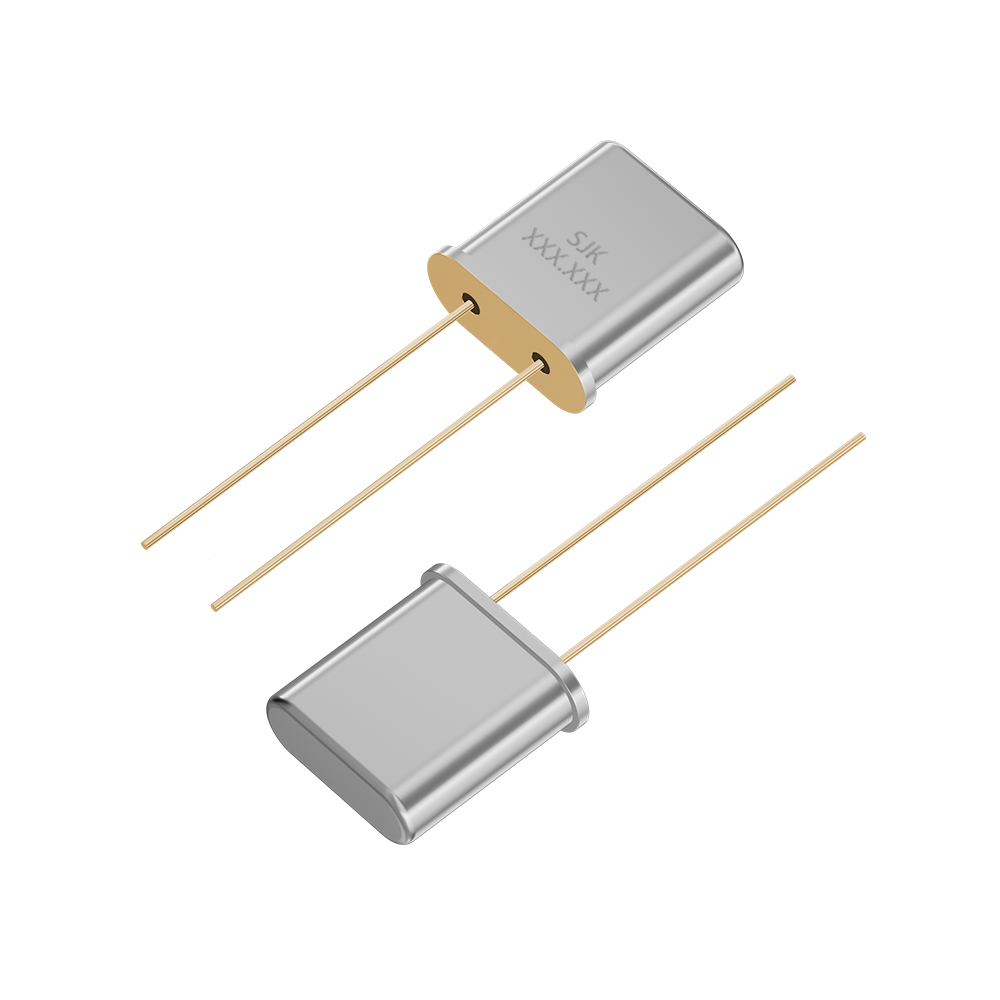

| 6E UM-5 Crystal Resonator | Datasheet |  |
4~200MHz | UM-5 / 2 leads | 9~50pF | ±10ppm | -40~+85℃ |

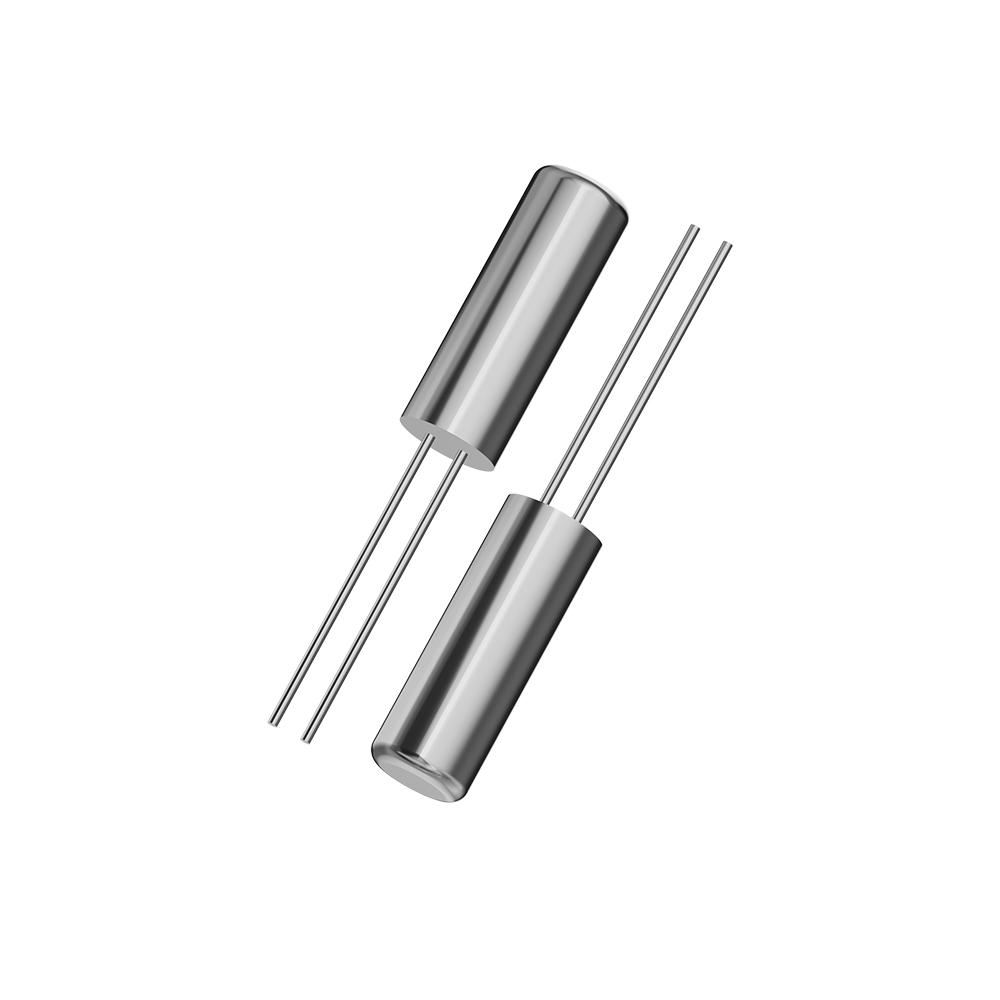

| 6Z Cylinder Crystal Unit | Datasheet |  |
3-50MHz | Ø2×6 / Ø3×8 / Ø3×9 / Ø3×10 / 2-leads | 9~50pF | ±10ppm | -40~+85℃ |
| 6C 49SMD Crystal Resonator | Datasheet |  |
3~100MHz | 49SMD & 49SSMD / 2 pins | 12~32pF | ±10ppm | -40~+85℃ |
| 6P Mini 49SMD Crystal Resonator | Datasheet |  |
8~50MHz | 49SSMD Mini / 2 pins | 12~32pF | ±10ppm | -40~+85℃ |
