| Series | Photo | Package | Frequency Range |
Insertion Loss |
Pass Bandwidth |
Operating Temperature |
Pole | Datasheet |
|---|---|---|---|---|---|---|---|---|

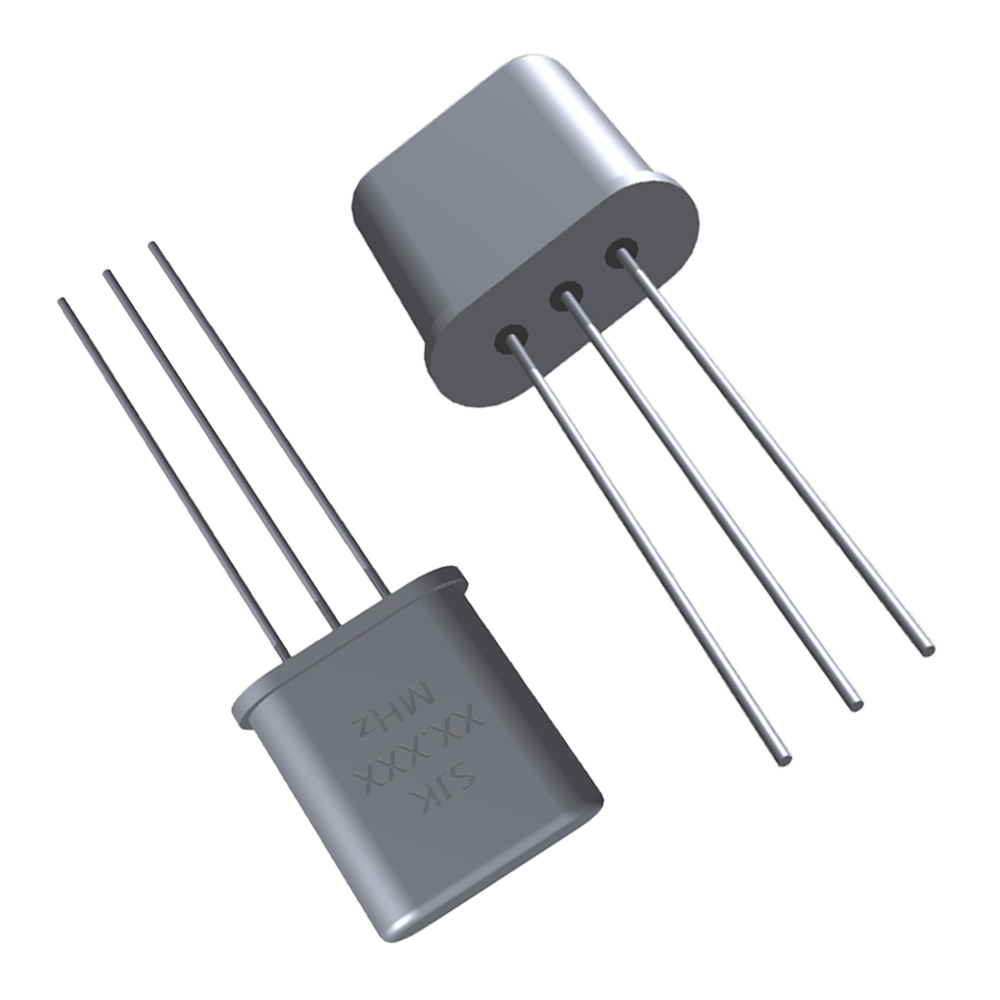

| 7D 49T Crystal Filter | HC-49T 3 Pin | 10.7MHz~10.8MHz | 1.5dB | ±3.5/±7.5/±15KHz@3dB | -20~+70ºC | 2 /4 /6 /8 | Datasheet | |

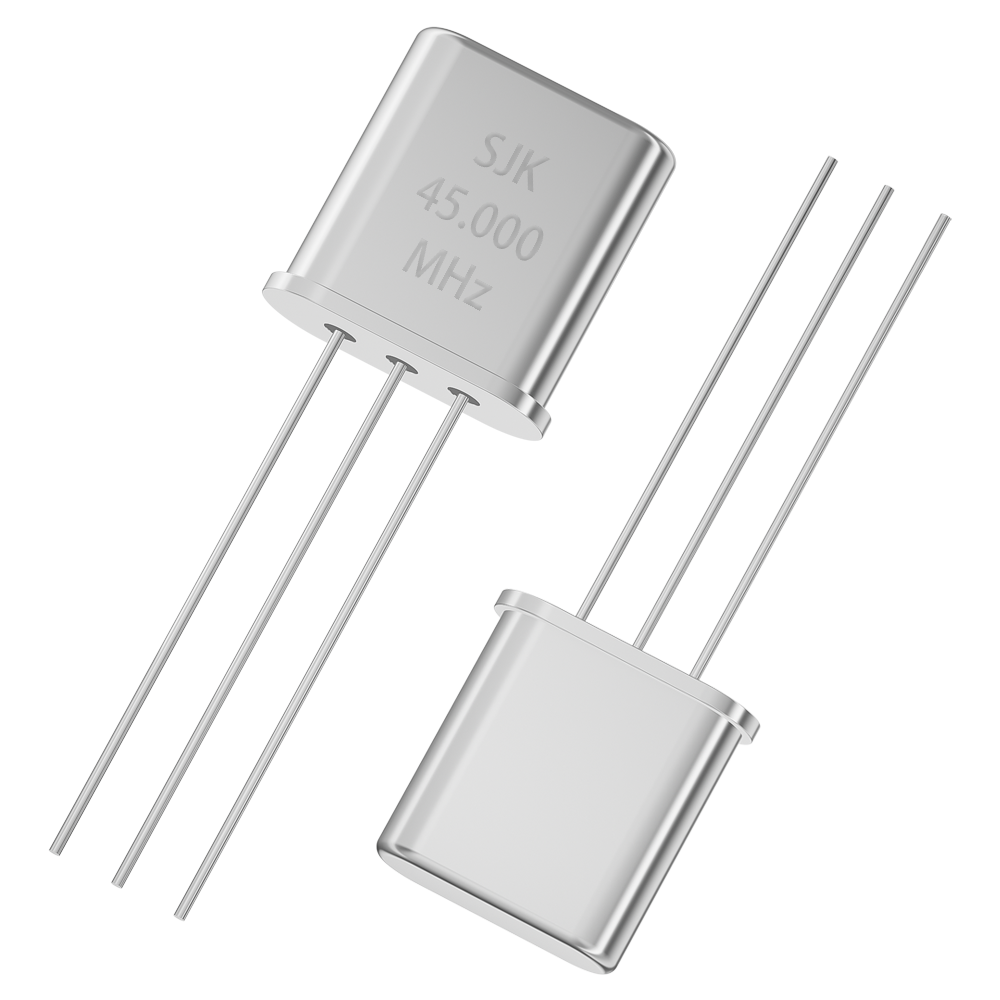

| 7D UM-1 Crystal Filter | UM-1 3 Pin | 21.7MHz~45MHz | 1.5dB | ±3.5/±7.5/±15KHz@3dB | -20~+70ºC | 2 /4 /6 /8 | Datasheet | |

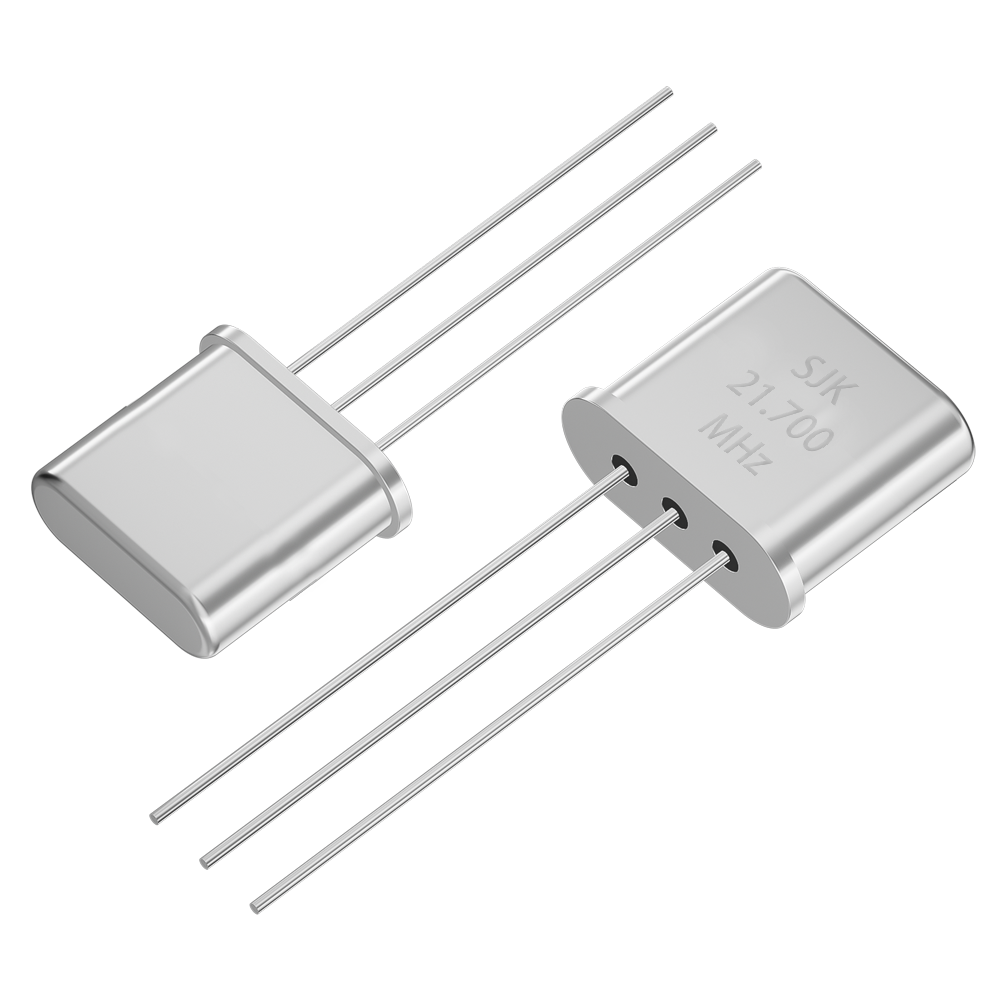

| 7D UM-5 Crystal Filter | UM-5 3 Pin | 21.7MHz~45MHz | 1.5dB | ±3.5/±7.5/±15KHz@3dB | -20~+70ºC | 2 /4 /6 /8 | Datasheet | |

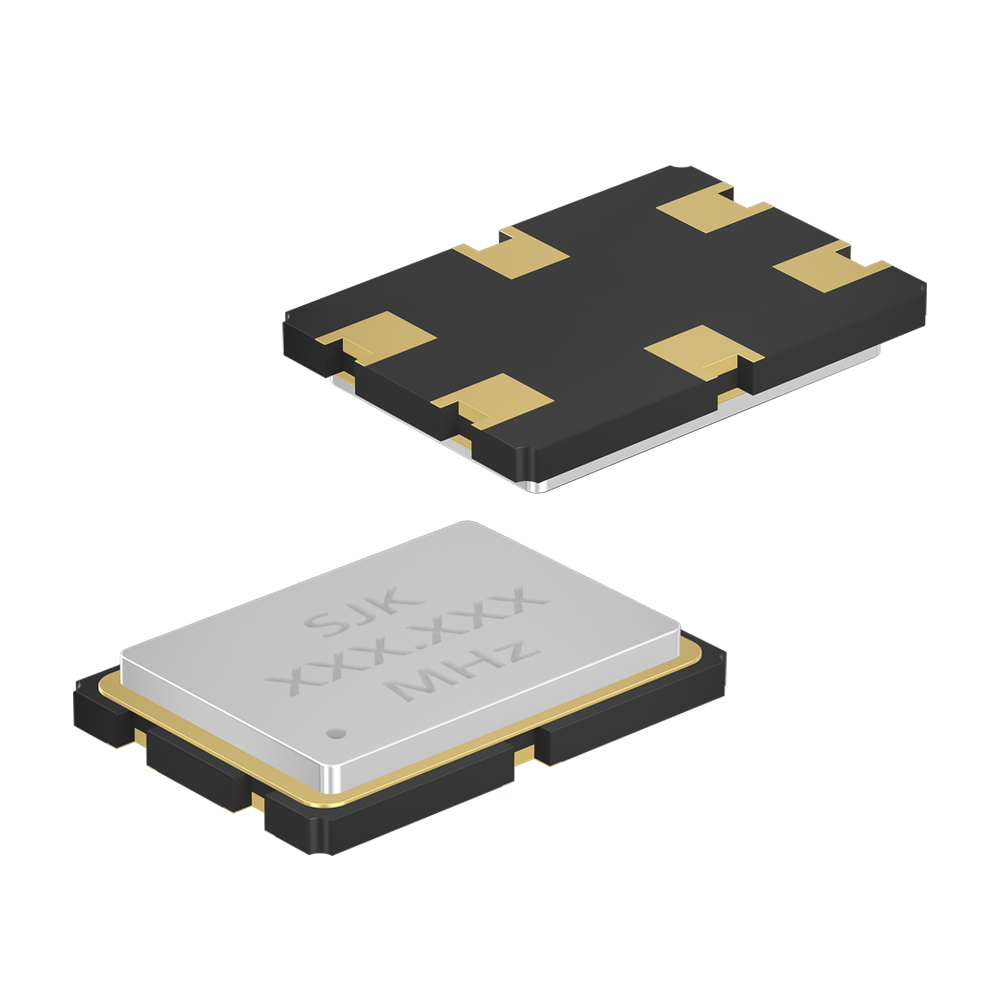

| CF SMD7050 Crystal Filter | 7050 6-SMD | 21.4MHz~52MHz | 1.5dB | ±3.75kHz~±25kHz@3dB | -20~+70ºC | 2 /4 | Datasheet |
