SAW Filter - SJK Crystal Products
Series Photo Package Frequency
Range		 Insertion
Loss		 Pass
Bandwidth		 Operating
Temperature		 Datasheet

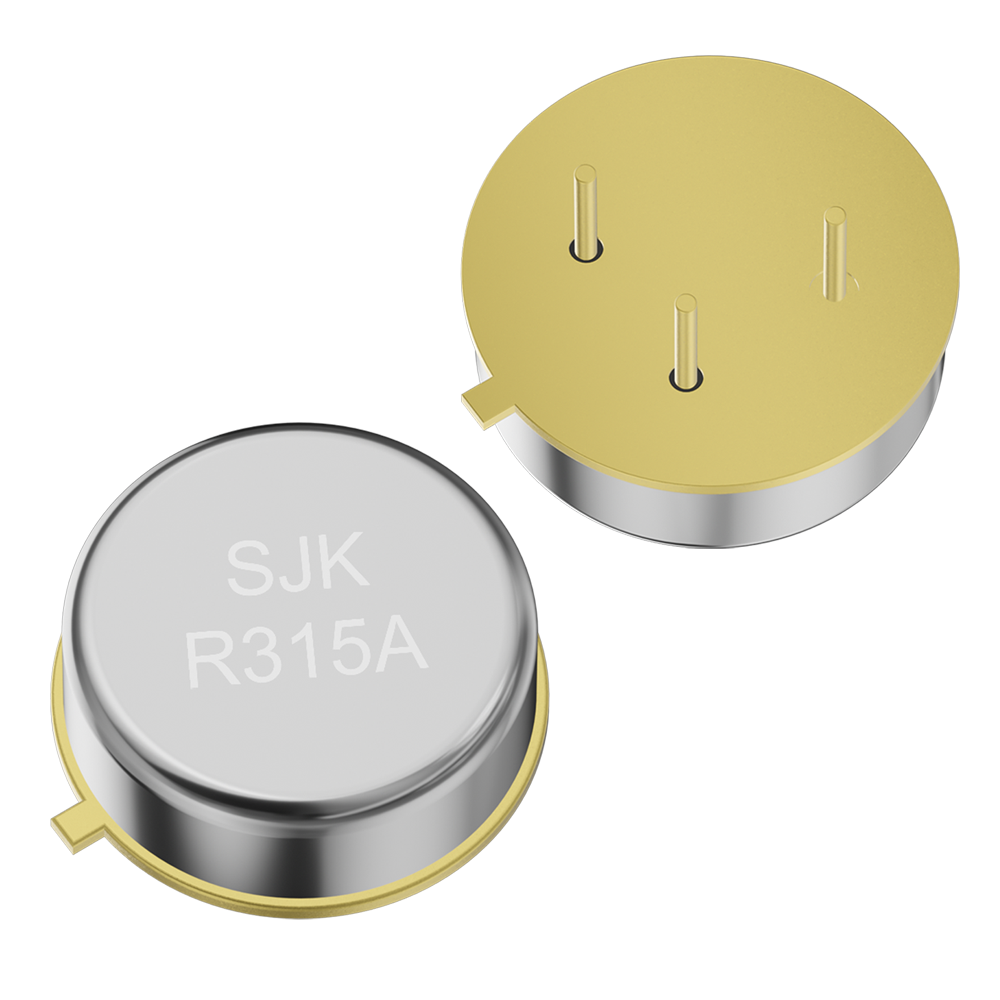

RF SAW Filter RF SAW Filter DCC6/DCC6C/… 110MHz~2.7GHz 1.8~20dB 0.3MHz~75MHz -40℃~+85℃ Datasheet

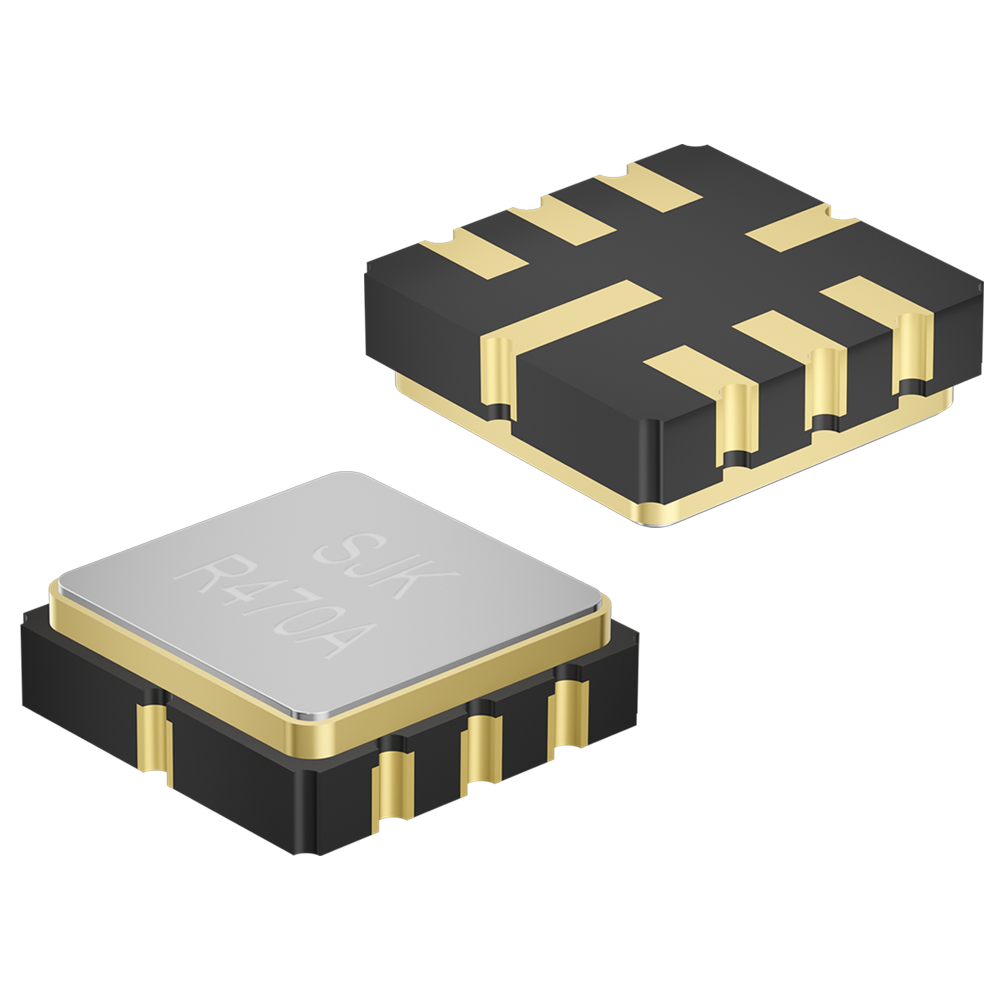

IF SAW Filter IF SAW Filter QCC12/SMD19/… 28MHz~1600MHz 3~35dB 0.1MHz~38MHz -40℃~+85℃ Datasheet
Zero IF SAW Filter Zero IF SAW Filter QCC12/QCC8C/TO39 337MHz~899MHz 33dB max. 1.5~126MHz -40℃~+85℃ Datasheet
Gateway Gateway 3.0×3.0mm SMD / 6 pins 480MHz~915MHz 2.1dB max. 26MHz max. -40℃~+85℃ N/A
Satellite Positioning Satellite Positioning 3.0×3.0mm SMD / 6 pins 1176MHz~2492MHz 4.8dB max. 8MHz~80MHz -40℃~+85℃ Datasheet

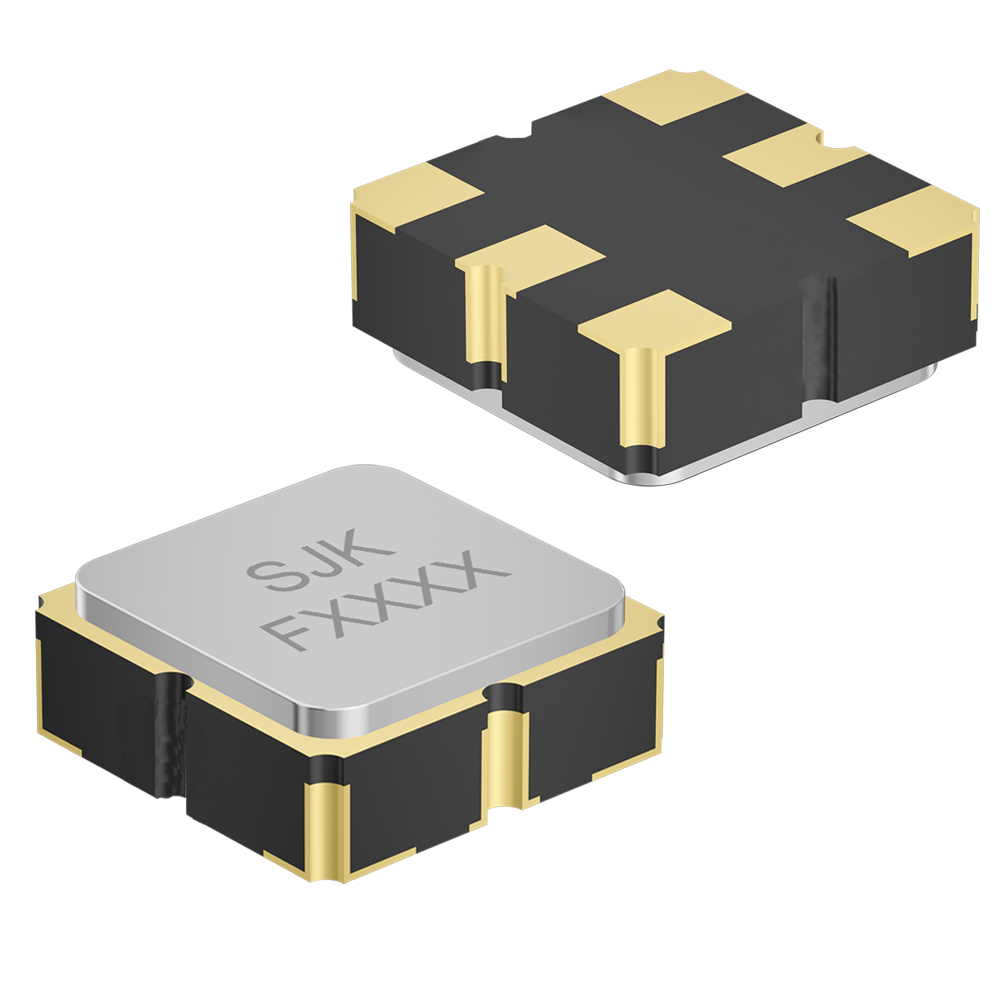

Microphone Microphone 3.0×3.0mm SMD / 6 pins 637MHz~688MHz 1.3dB max. 25MHz max. -40℃~+85℃ N/A
Wireless Communication Wireless Communication 3.0×3.0mm SMD / 6 pins 806MHz~2655MHz 3.2dB max. 75MHz max. -40℃~+85℃ N/A

Test Performance in Your Lab

Experience SJK quality firsthand. Request a free sample to validate performance in your specific application.
