HomeTCXO/VC-TCXO

Products

TCXO

SJK specializes in high-quality TCXO (Temperature Compensated Crystal Oscillators) and VC-TCXO (Voltage-Controlled Temperature Compensated Crystal Oscillators), delivering ultra-high precision, low power consumption, low phase noise, and outstanding temperature stability with frequency stability up to ±0.05 ppm.


Our comprehensive product portfolio covers frequencies from 32.768 kHz to 125 MHz, offering a full range of package options from ultra-miniature SMD packages (1612, 2016, 2520, 3225, 5032, and 7050) to full-size DIP through-hole packages.


SJK TCXO and VC-TCXO products are widely used in IoT devices, 5G communication base stations, GPS/BeiDou satellite navigation systems, automotive electronics, wireless communications, and other applications requiring exceptional frequency accuracy.


We support fast sample requests and customized solutions. Click on the products to download the PDF datasheets, or contact us for professional frequency control solutions.

TCXO - SJK Crystal Products
Series Photo Package Frequency
Range		 Output Supply
Voltage		 Frequency
Stability		 Operating
Temperature		 Datasheet

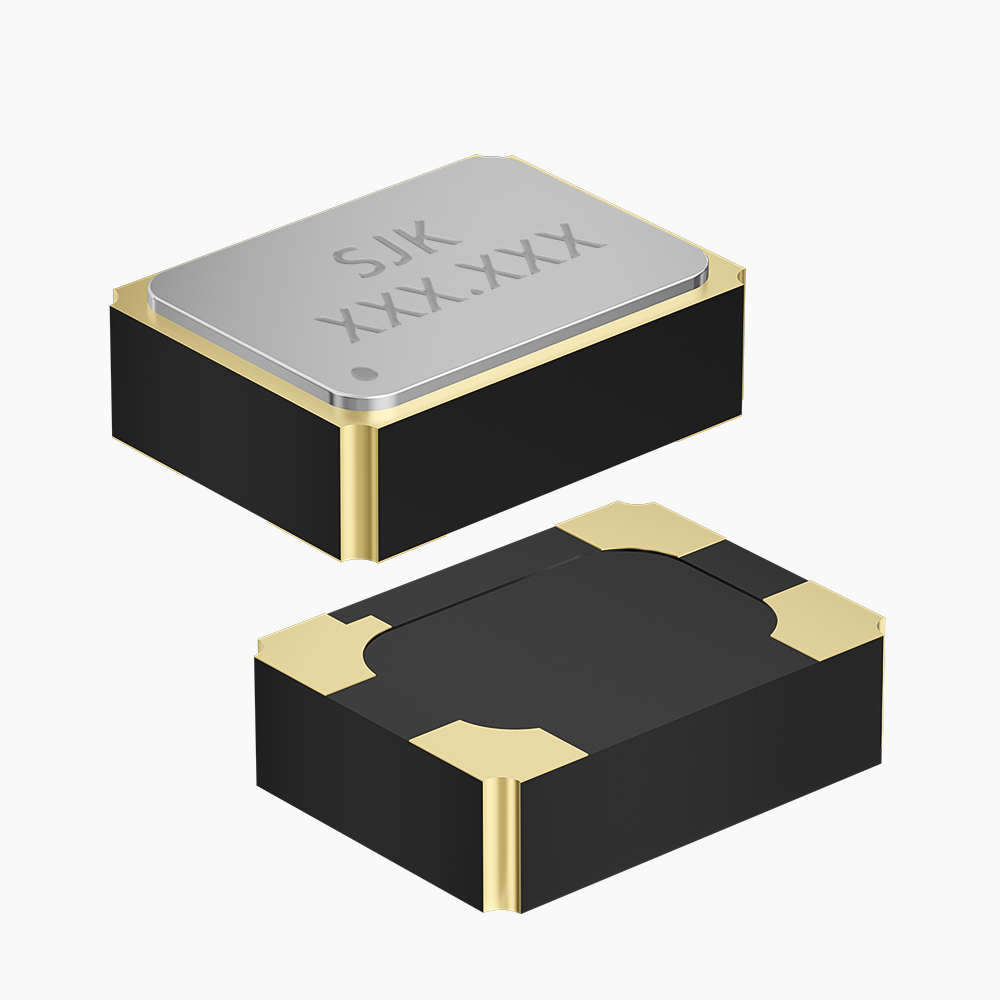

1T SMD1612 VC-TCXO 1T SMD1612 VC-TCXO 1612 4-SMD 10MHz~52MHz Clipped Sinewave 1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet

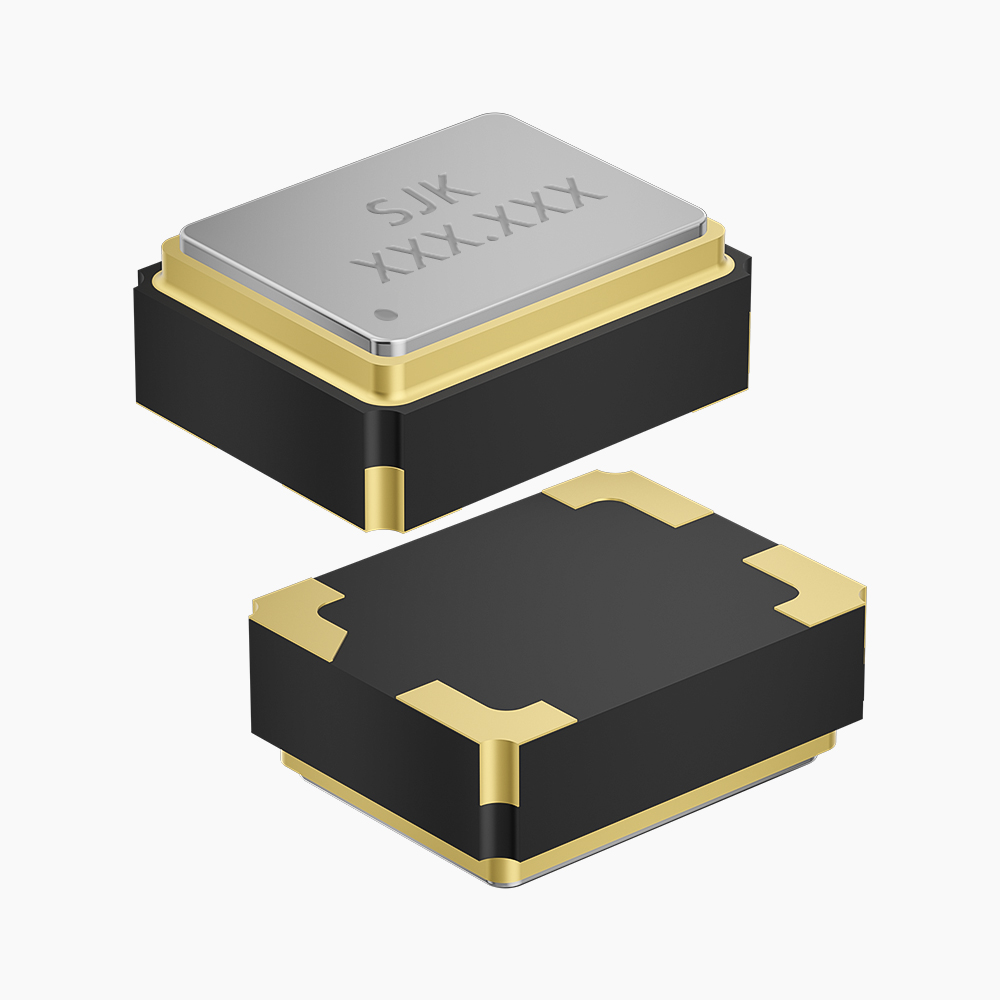

7X SMD2016 VC-TCXO 7X SMD2016 VC-TCXO 2016 4-SMD 10MHz~52MHz Clipped Sinewave 1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet
7Q SMD2520 VC-TCXO 7Q SMD2520 VC-TCXO 2520 4-SMD 10MHz~52MHz Clipped Sinewave 1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet

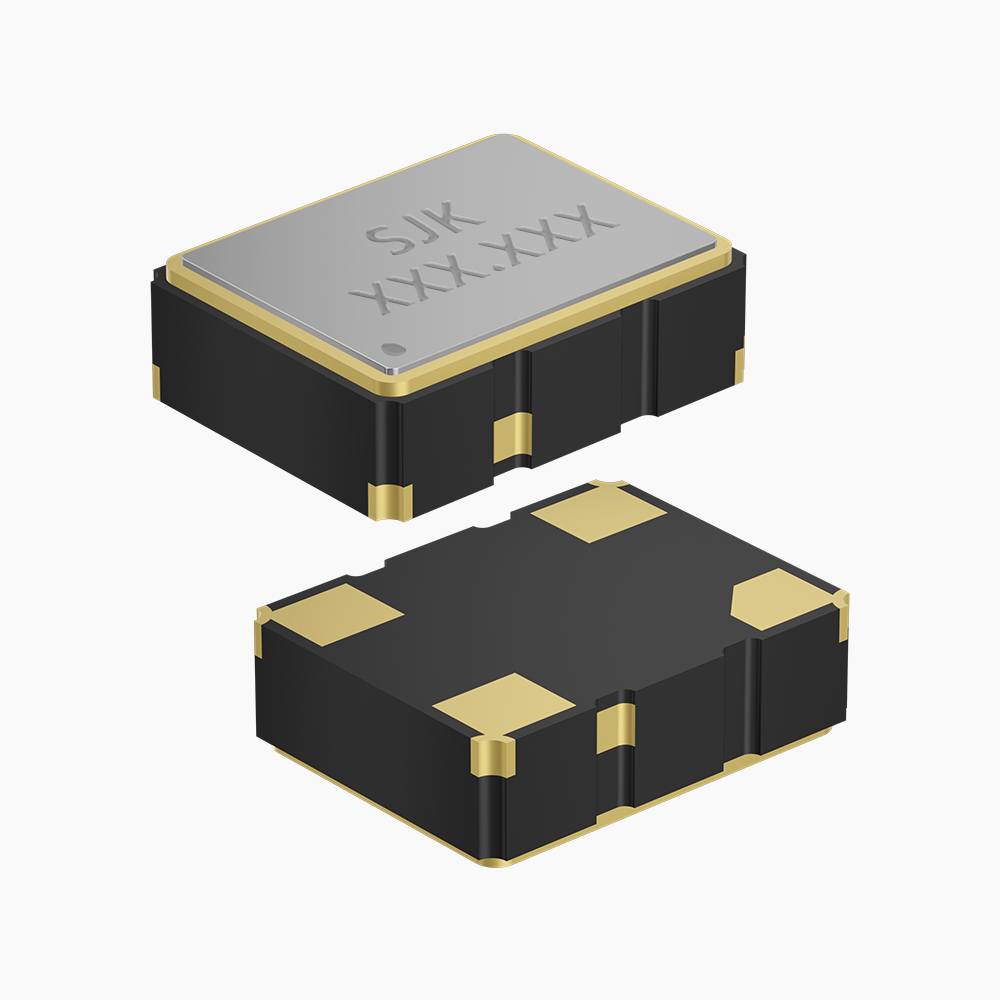

7W SMD2520 TCXO 7W SMD2520 TCXO 2520 4-SMD 10MHz~60MHz CMOS 1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet
8W SMD3225 VC-TCXO 8W SMD3225 VC-TCXO 3225 4-SMD 6.4MHz~52MHz Clipped Sinewave 1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet

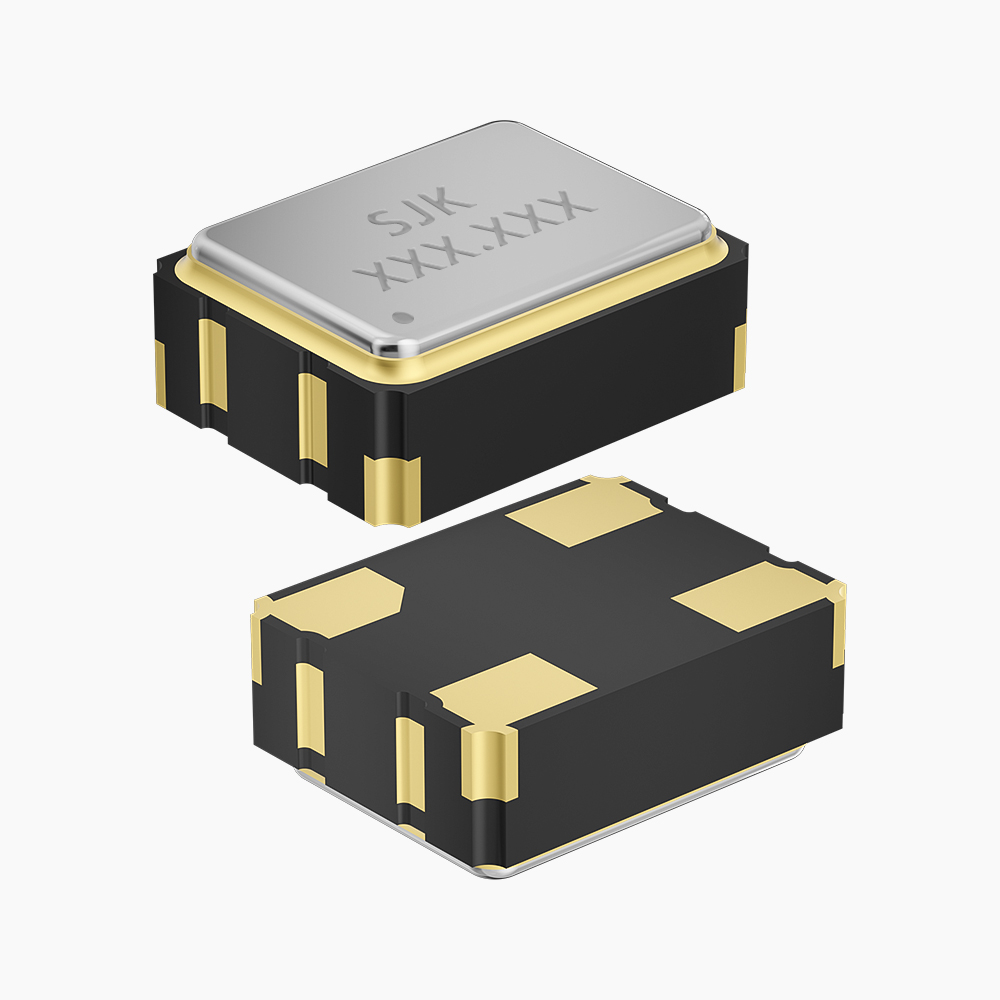

7T SMD3225 TCXO 7T SMD3225 TCXO 3225 4-SMD
32.768KHz 6.4MHz~52MHz
CMOS 1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet

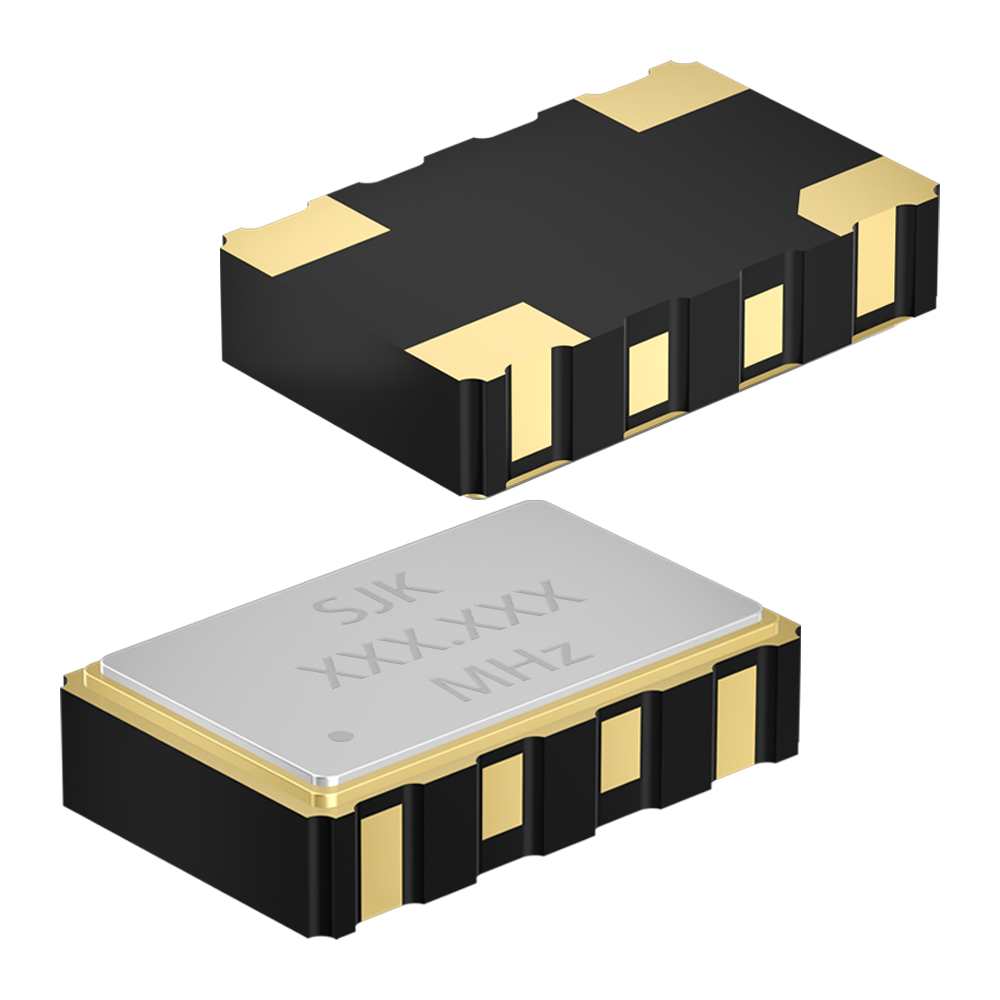

5T SMD5032 VC-TCXO 5T SMD5032 VC-TCXO 5032 4-SMD 6.4MHz~52MHz
Clipped Sinewave CMOS
1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet

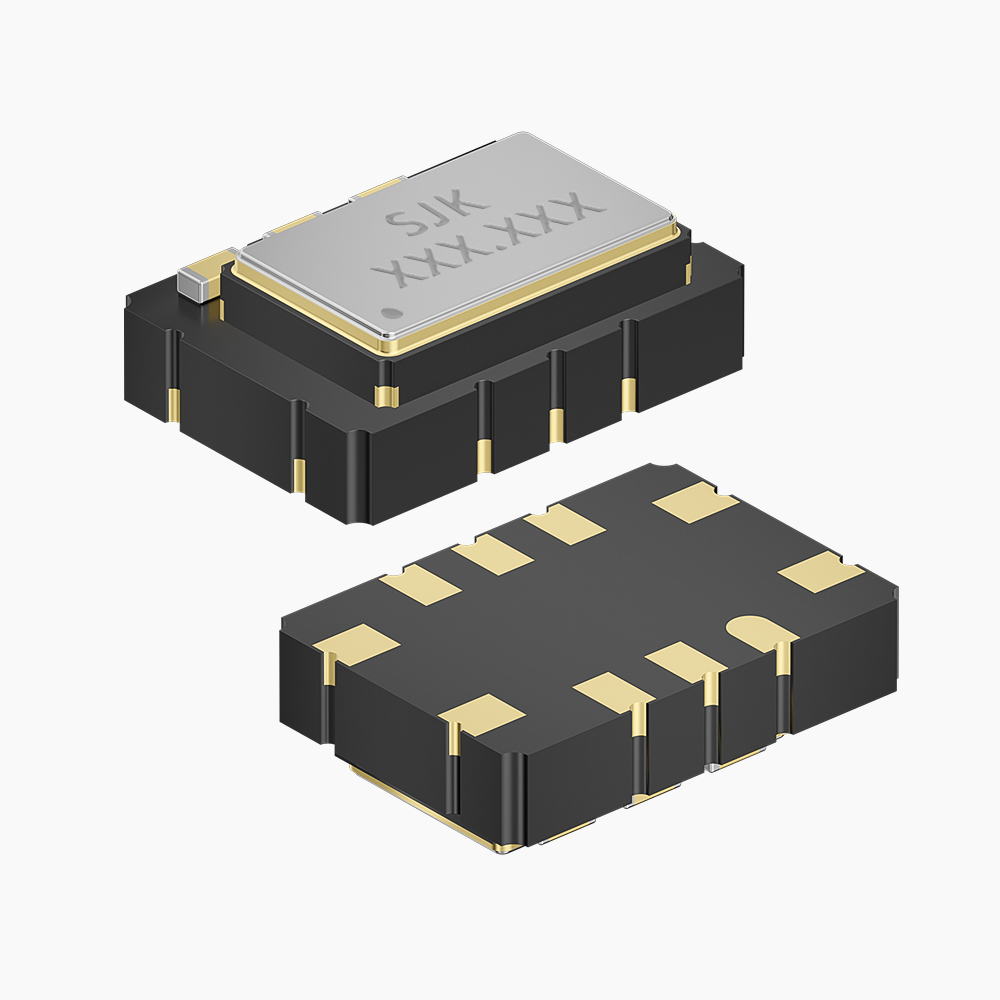

8T SMD7050 VC-TCXO 8T SMD7050 VC-TCXO 7050 4-SMD
32.768KHz 6.4MHz~52MHz
Clipped Sinewave CMOS
1.8V~3.3V ±0.5ppm -40~+85℃ Datasheet
9T SMD1409 VC-TCXO 9T SMD1409 VC-TCXO 14×9mm 4 /6-SMD 40MHz~150MHz
Sinewave /CMOS
3.3V ±0.5ppm -40~+85℃ Datasheet
6T DIP-14 VC-TCXO 6T DIP-14 VC-TCXO 20×13mm Full Size / 4 pins 6.4MHz~60MHz
Clipped Sinewave CMOS
1.8V~5.0V ±0.5ppm -40~+85℃ Datasheet

Test Performance in Your Lab

Experience SJK quality firsthand. Request a free sample to validate performance in your specific application.
