| Series | Photo | Package | Frequency Range |
Output | Supply Voltage |
Frequency Stability |
Operating Temperature |
Datasheet |
|---|---|---|---|---|---|---|---|---|

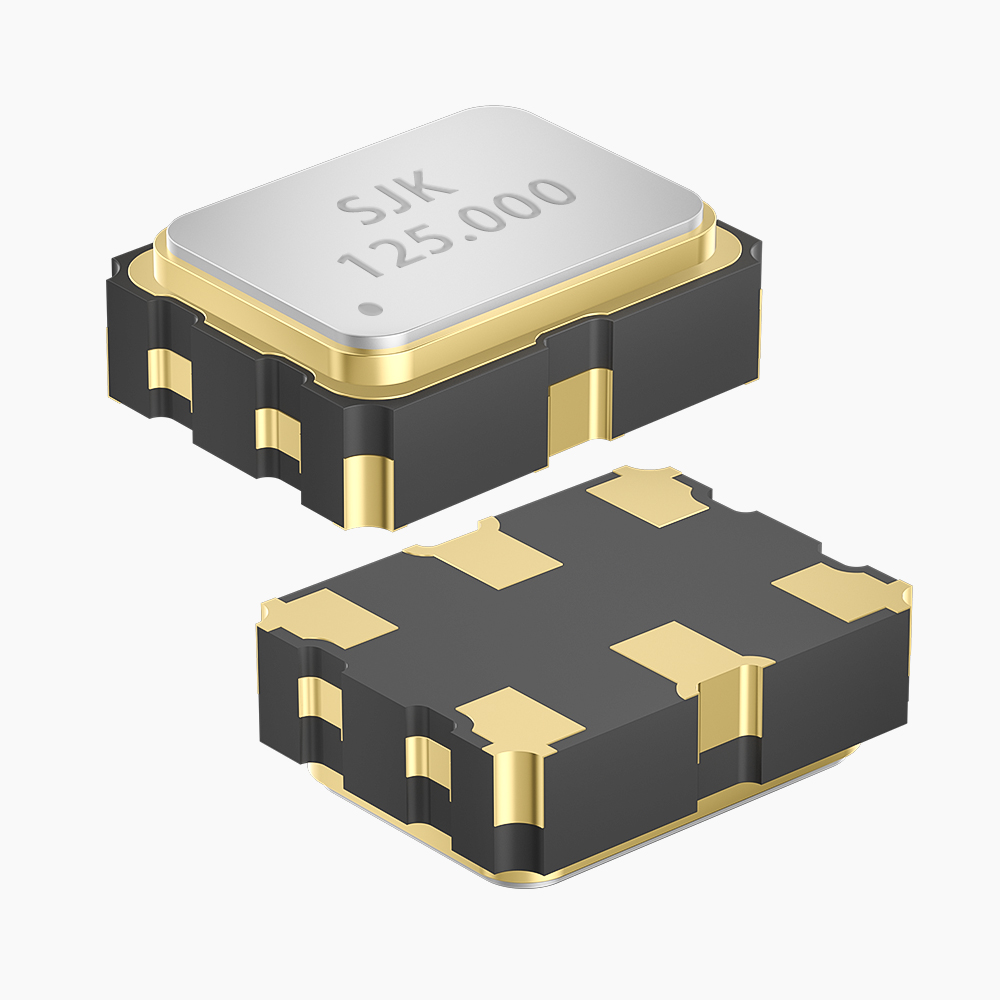

| 3S Series SMD 3225 VCXO |  |
3225 6-SMD | 1.25~250MHz | CMOS | 3.3V | ±20ppm | -40~+85℃ | Datasheet |

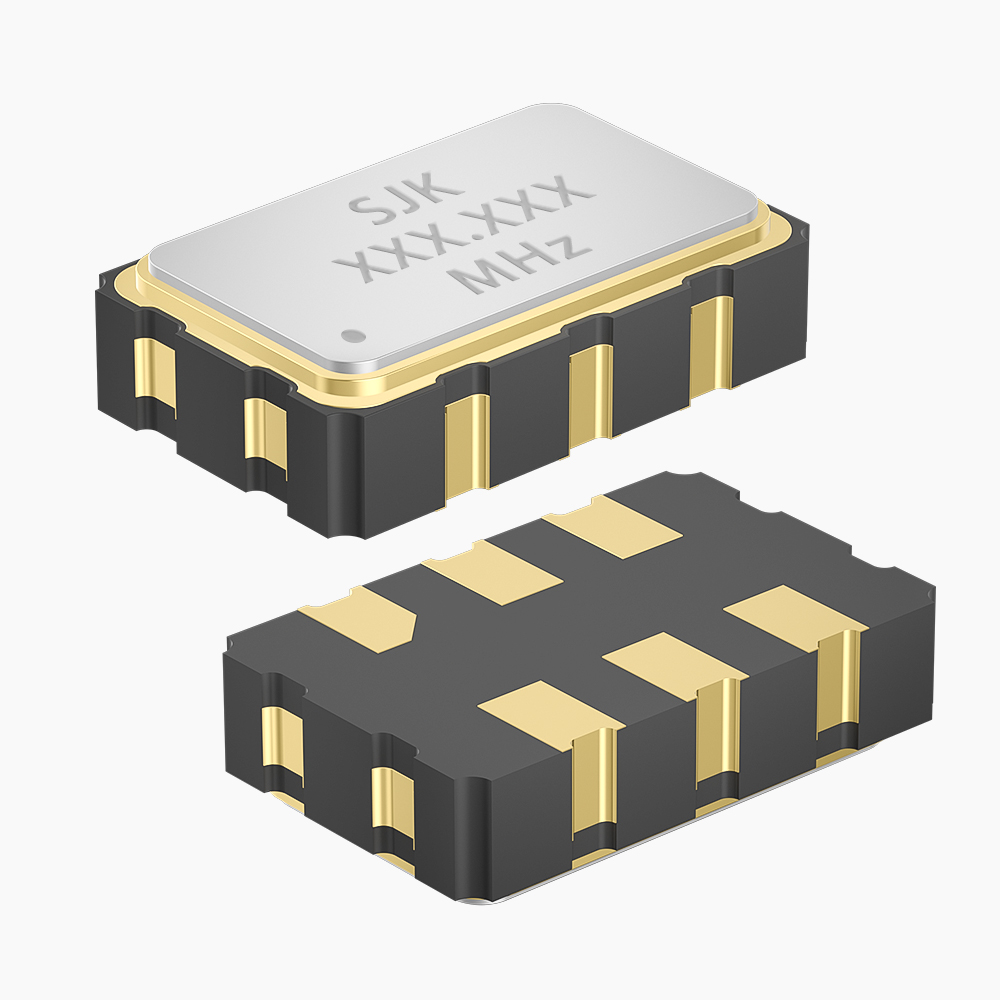

| 5S SMD 5032 VCXO |  |
5032 6-SMD | 1.25~250MHz | CMOS | 3.3V | ±20ppm | -40~+85℃ | Datasheet |

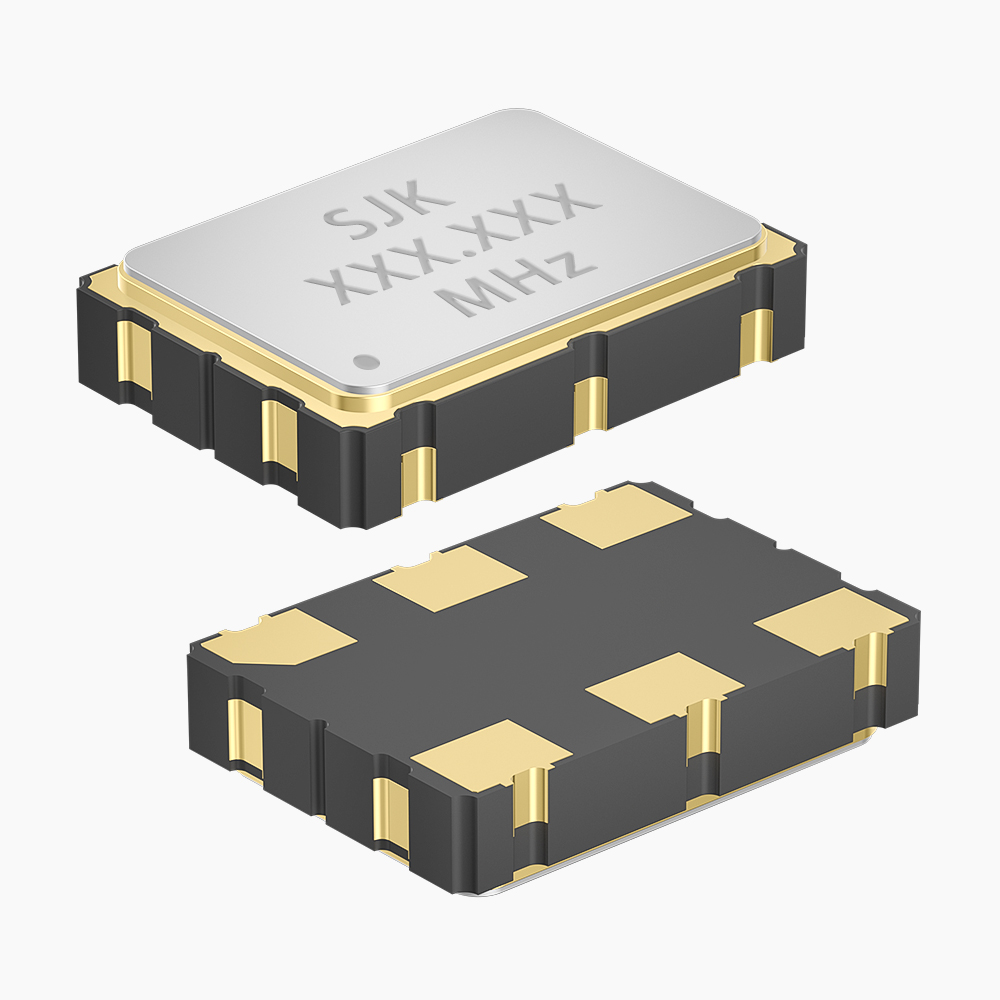

| 6S SMD 7050 VCXO |  |
7050 6-SMD | 1.25~250MHz | CMOS | 3.3V/5.0V | ±20ppm | -40~+85℃ | Datasheet |
| 9S SMD1409 VCXO |  |
14×9 4-SMD | 1.25~150MHz | CMOS | 3.3V | ±20ppm | -40~+85℃ | Datasheet |
| 6RF DIP-14 VCXO |  |
14 Pin DIP | 1.25~220MHz | CMOS | 3.3V/5V | ±20ppm | -40~+85℃ | Datasheet |
| 6RH DIP-8 VCXO |  |
8 Pin DIP | 1.25~220MHz | CMOS | 3.3V/5V | ±20ppm | -40~+85℃ | Datasheet |
