9V SMD LVDS VCXO
Model: 9V Series (SMD LVDS VCXO)
Frequency range: 50~700MHz
Output type: LVDS
Supply voltage: 3.3V
Size: 14.2×9.3×5.4mm
Applications: PC, Base station, Ethernet, SONET, Sever, etc

Specifications and Dimensions

Features of 9V Series SMD LVDS VCXO

Voltage Controlled Crystal Oscillator (VCXO)

Typical 14.2×9.3×5.4mm size. SMD VCXO

LVDS output, output frequency range from 50MHz to 700MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free




Electrical Specifications Of 9V Series SMD LVDS VCXO

Item /Type9V Series (SMD LVDS VCXO)
Output TypeLVDS
Output Load100Ω
Supply Voltage3.3V
Frequency Range
50~700MHz
Supply Current
80mA Max.
Frequency Stability
±25ppm, ±50ppm, or specify
Operating Temperature
-40~+85℃, or specify
Storage Temperature-55~+125℃
Voltage Vol (Max.) /Voh (Min.)
0.9V/1.6V
Rise (Tr) /Fall (Tf) Time5ns Max.
Start-up Time
10ms Max.
Duty Cycle
45~55%
Absolute Pulling Range (APR)*
±50ppm Min., or specify
Nominal Control Range0.5 Vcc
Control Voltage Range
0~Vcc
Lineartiy10% Max.
Phase Jitter (12KHz~20MHz)1pS Max.
Packing Unit
500pcs./Reel

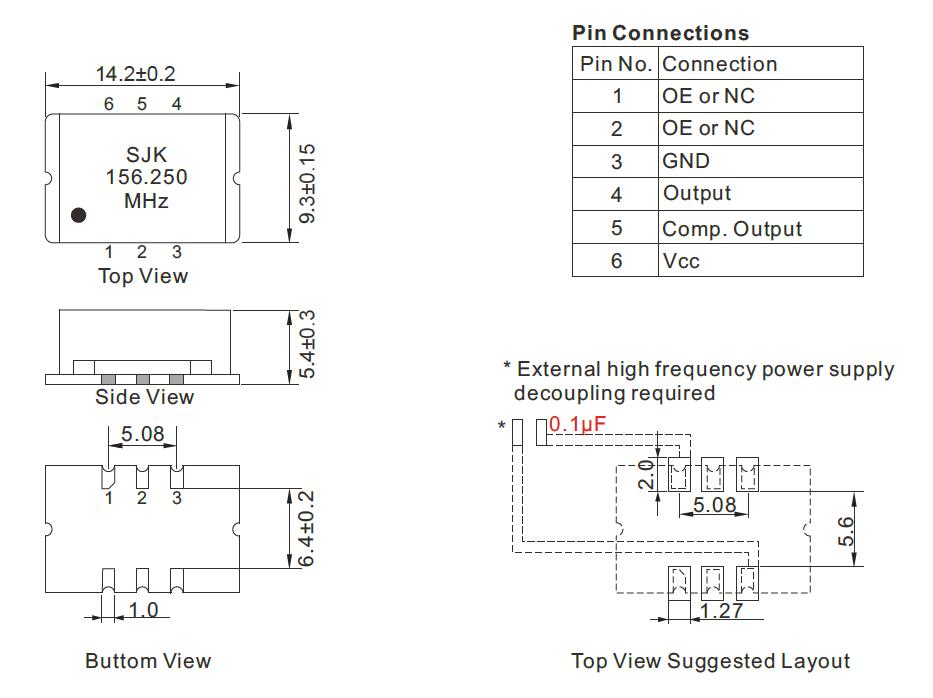

Dimensions[mm]

9V-SMD-1493-LVDS-VCXO-Dimensions
