8W Series SMD 3225 TCXO-SJK TCXO

8W SMD3225-TCXO /VCTCXO

Product > Crystal Oscillator List > TCXO > 8W SMD3225-TCXO /VCTCXO

8W SMD3225-TCXO /VCTCXO

Model: 8W Series SMD-3225 TCXO /VC-TCXO
Frequency range: 9.6~60MHz
Supply voltage: 1.8~3.3V
Output type: Clipped Sinewave
Size: 3.2×2.5×1.0mm
Frequency stability: ±0.5~±2.5ppm
Applications: GPS/GNSS, Wireless Communications, Mobile Phone, etc

Click on INQUIRY FORM for samples or a quotation. We will reply immediately

Specifications and Dimensions

Features

Clipped Sinewave output logic, frequency range from 9.6MHz to 60MHz

3225 size, 1.0mm high SMD TCXO /VC-TCXO

Low voltage operations: 1.8V, 2.5V, 3.0V, 3.3V

Frequency stability: ±0.5ppm~±3.0ppm

VCTCXO available

Automatic mounting and reflow soldering

Applications: Mobile Phone, Wireless Communications, IoT, GPS/GNSS, Telecommunication, Industrial radio communications, WLAN, and more

RoHS Compliant & Pb-Free

Specifications

Type		8W Series SMD3225 TCXO /VC-TCXO
Output Type		Clipped Sinewave
Output Load		10KΩ//10pF
Output Level		0.8Vp-p (Clipped Sine Wave/DC-coupled)
Frequency Range		9.6MHz~60MHz
Supply Voltage		1.8V /2.5V /3.0V /3.3V
Current Consumption		3.5mA max.
Frequency Tolerance		±1.0ppm max.
Frequency Stability	vs. Temperature	±0.5ppm~±3.0ppm max.
	vs. Supply Voltage	±0.2ppm max. (Vcc±5%)
	vs. Load Variation	±0.2ppm max. (Load±10%)
	vs. Aging	±1.0ppm max.
Start-up Time		5.0ms max.
VC-TCXO	Frequency Control Range	±5.0ppm min.
	Control Voltage Range	0.9V±0.6V@Vcc=1.8V, 1.4V±1V@Vcc>=2.6V, 1.5V±1V@Vcc>=3.0V
	Input impedance	1MΩ min.
	Response Slope	Positive	Positive
Phase Noise@19.2MHz	Offset 100Hz	-115dBc/Hz
	Offset 1KHz	-135dBc/Hz
	Offset 10KHz	-148dBc/Hz
Operating Temperature Range		-30~+85°C, -40~+85°C, or specify
Storage Temperature Range		-55~+125°C
Package Size(L×W×H)		3.2×2.5×1.0mm
Packing Unit		3000pcs./Reel

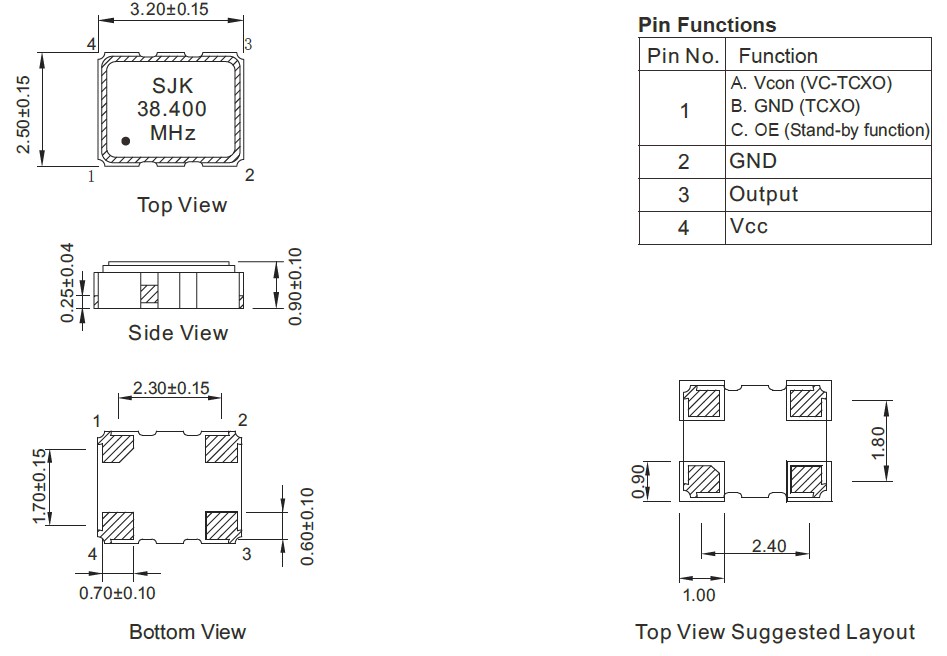

Dimensions [mm]
