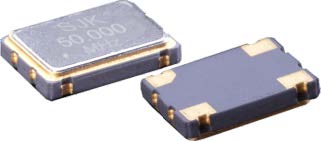

6N SMD 7050 Crystal Oscillator
Product > Crystal Oscillator List > Oscillator (CMOS) > 6N SMD 7050 Crystal Oscillator
| Specifications and Dimensions |
Features
Package size: 7.0×5.0×1.3mm
Small size SMD seam-sealed clock crystal oscillator units
Supply voltage: 1.8~5.0V
Wide frequency range: 1MHz~220MHz
3-state function
Automatic mounting and reflow soldering
High stability, low jitter, low power consumption.
Applications: PC, Peripherals, Car Applications, Visual, Ethernet, Server, FA equipment, FC-HBA, LCDM, etc
RoHS Compliant & Pb-Free
Specifications
| Type | 6N Series SMD Crystal Oscillator |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 1.8~5.0V |
| Frequency Range | 1MHz~220MHz |
| Supply Current | 10mA Max. |
| Frequency Stability | ±20ppm, ±30ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) / Voh (Min.) | 0.1Vdd / 0.9Vdd |
| Rise (Tr) / Fall (Tf) Time | 10ns Max. |
| Period Jitter | 40 ps Max. |
| Duty Cycle | 40~60% |
| Start-up Time | 1ms Max. |
| Phase Jitter (12KHz~20MHz) | 1 ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 1000pcs./Reel |

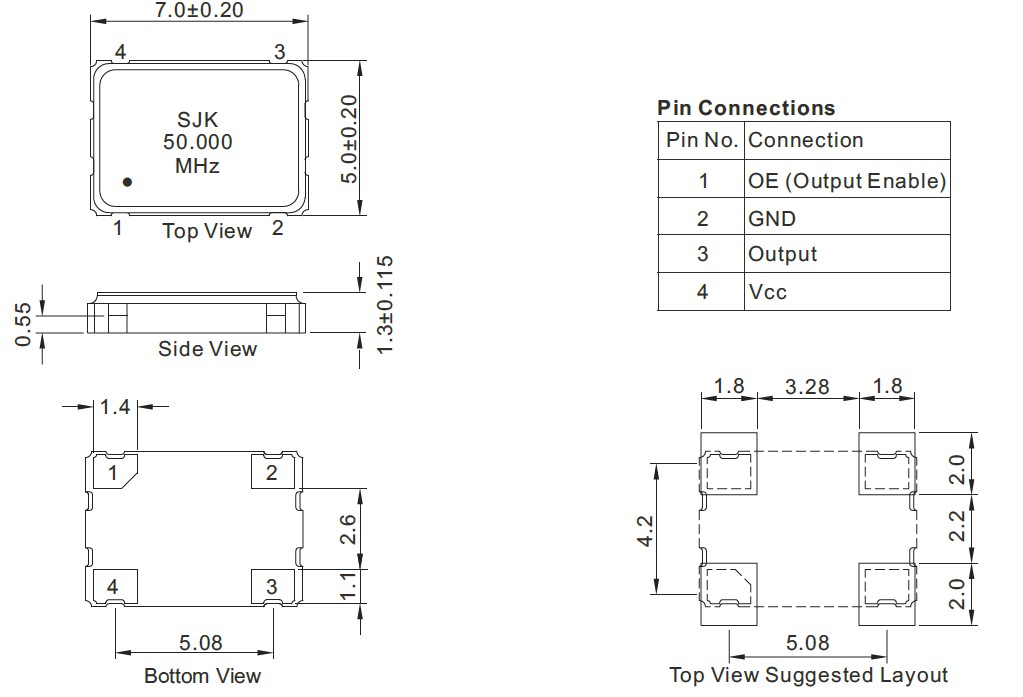

Dimensions [mm]
