Technical Documentation

Tape and Reel

Emboss Carrier Tape (SMD Crystal Units /Crystal Filters)

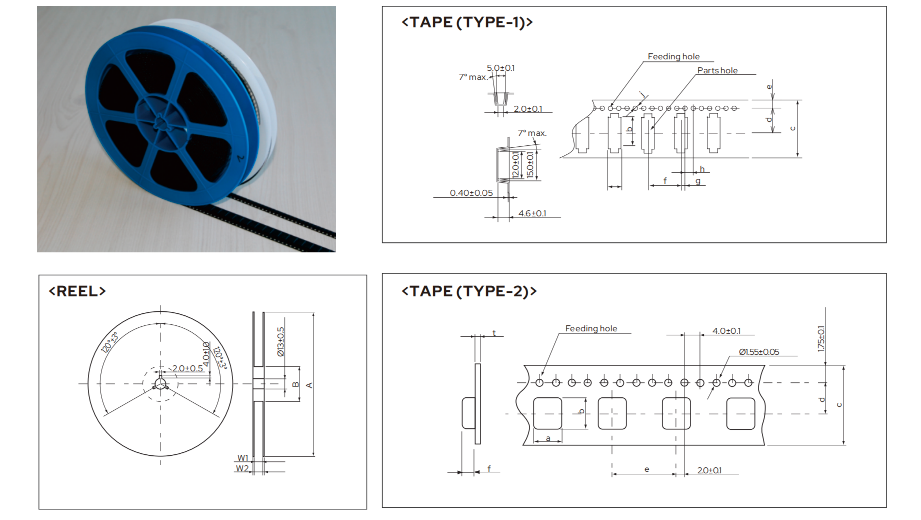

  • 1. Structure & Dimensions

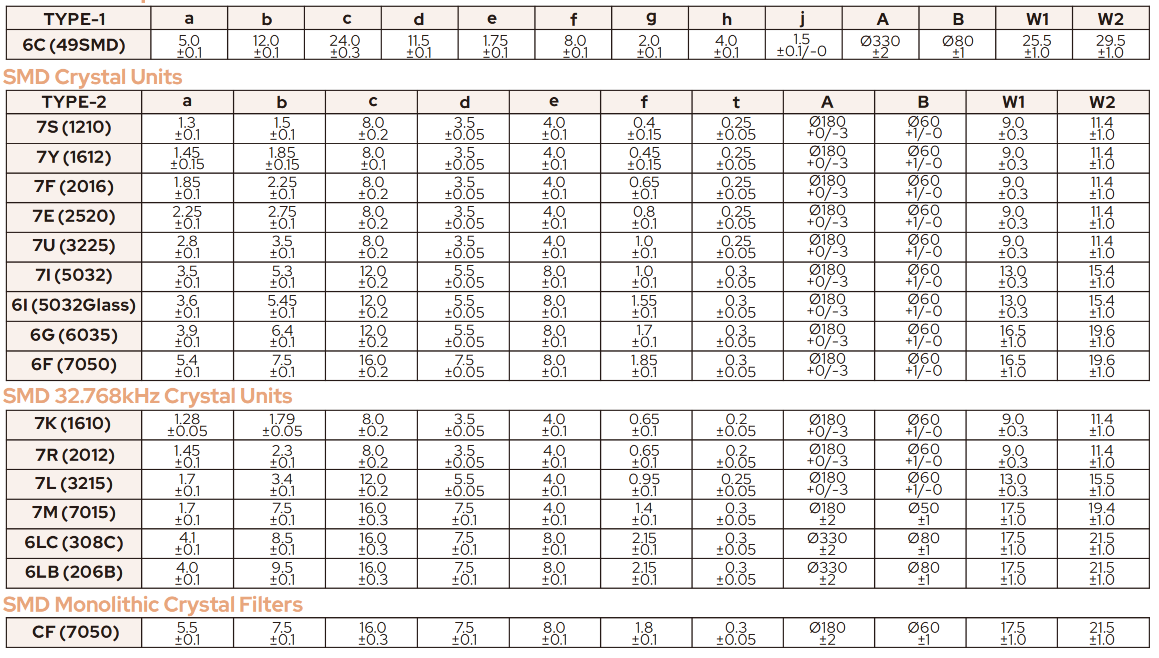

  • 2. Standard Specifications

Emboss Carrier Tape (SMD Crystal Oscillators /MEMS Oscillators)

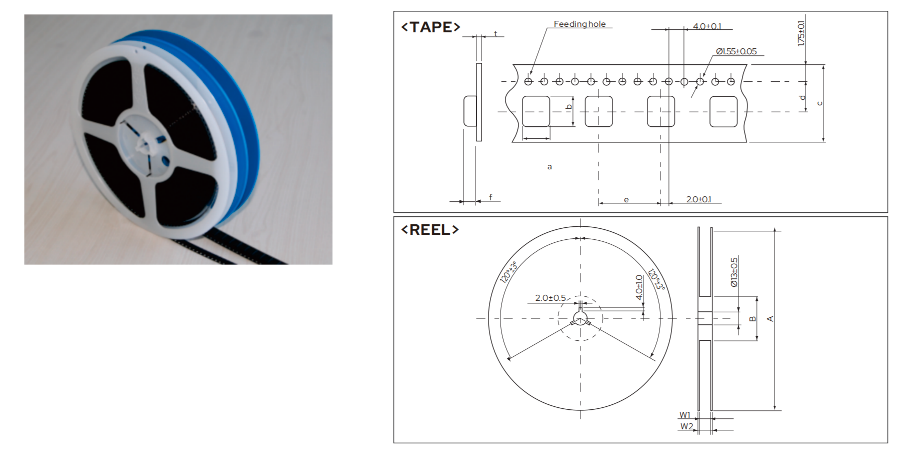

  • 1. Structure & Dimensions

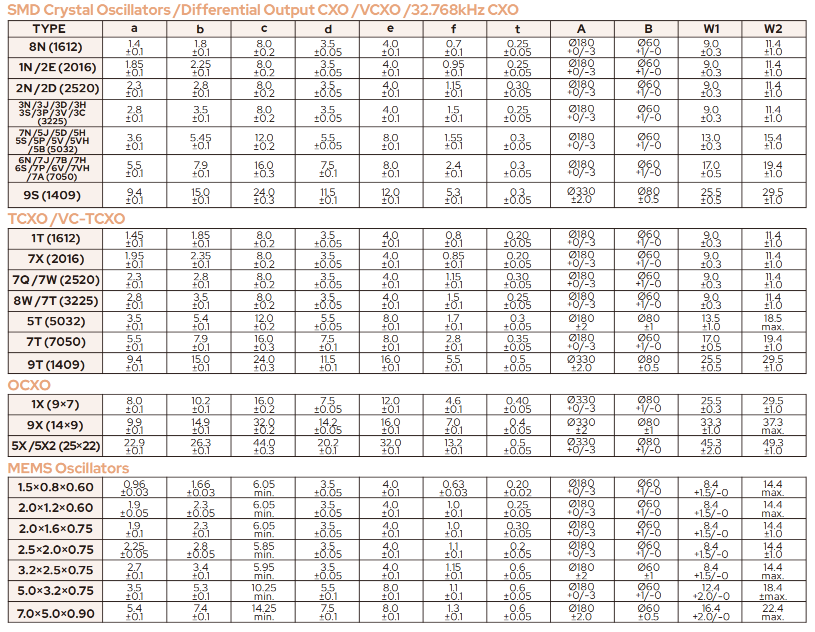

  • 2. Standard Specifications
