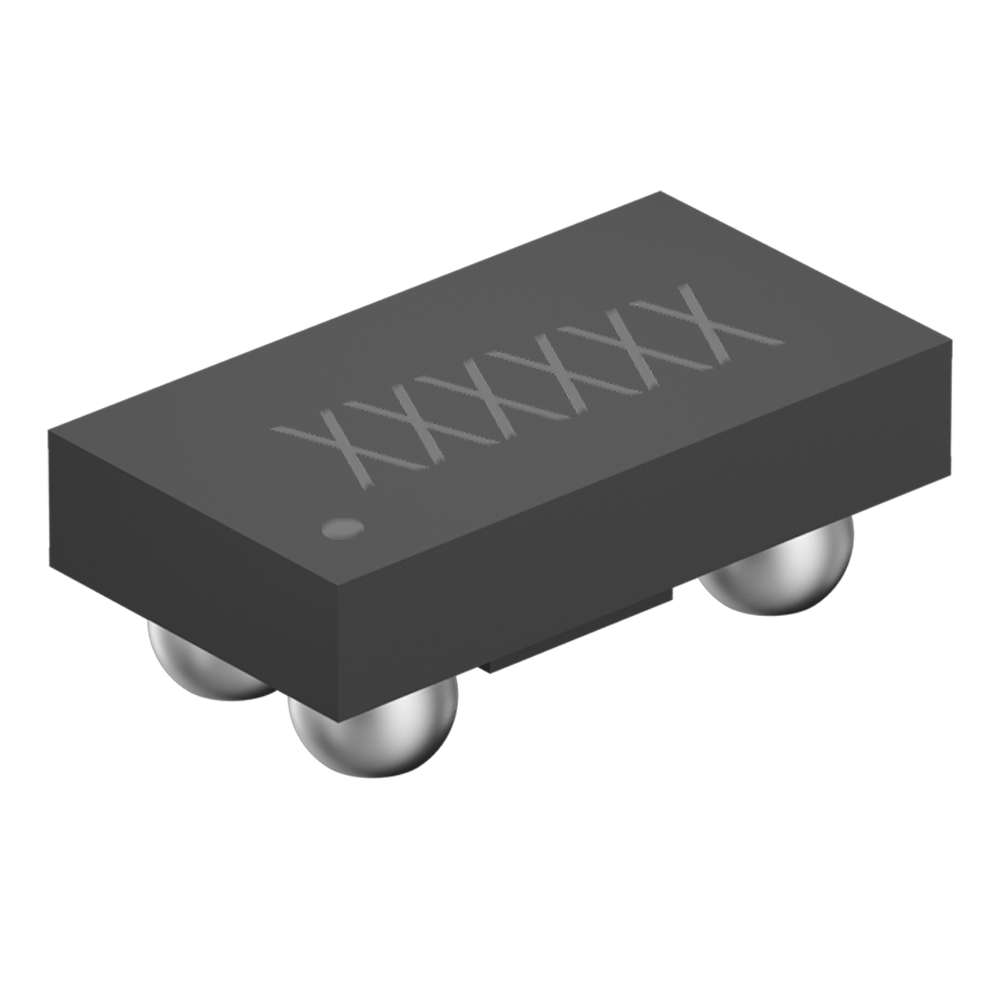

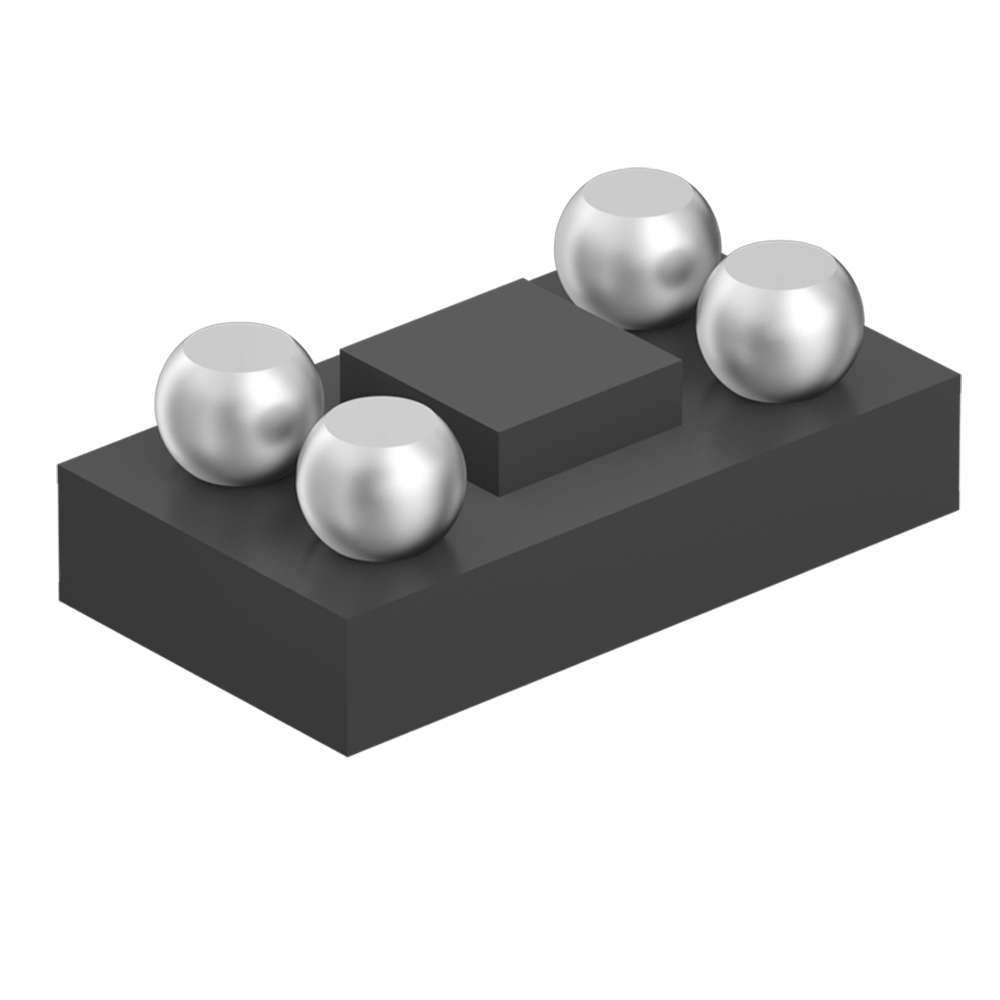

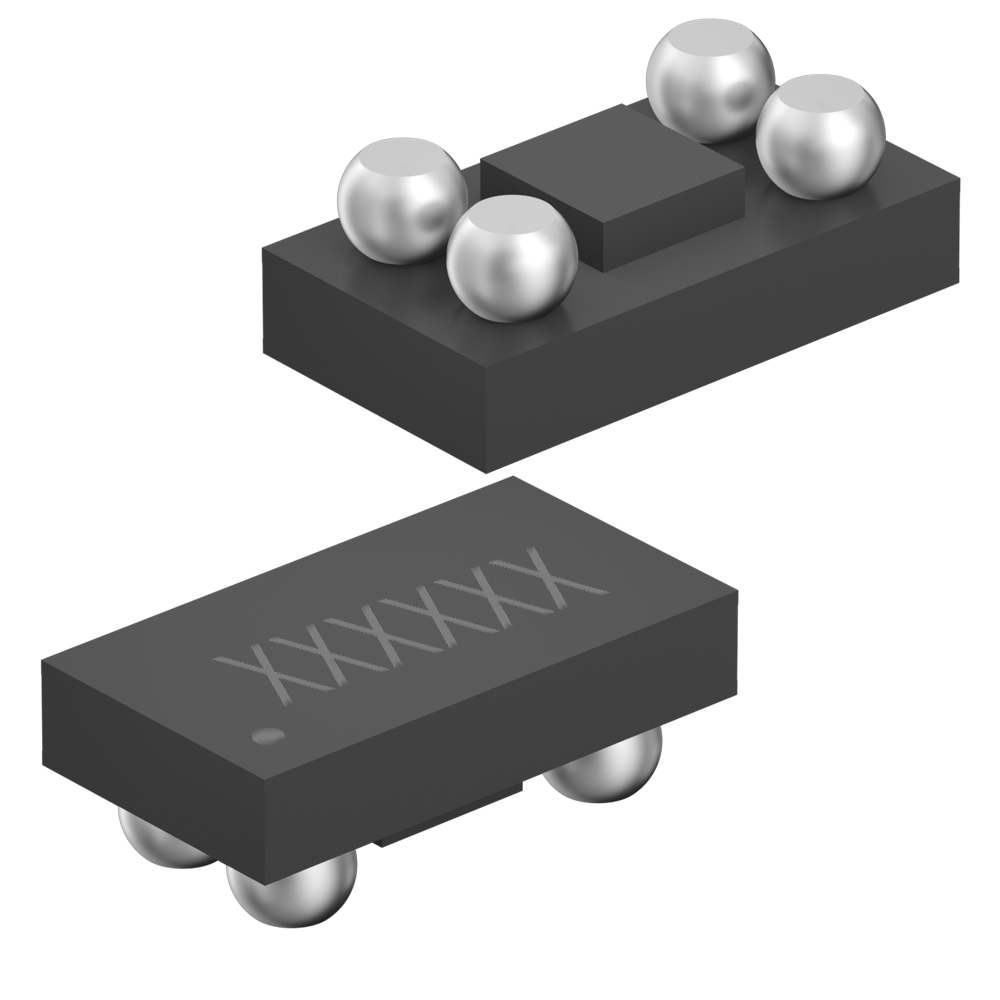

SJK1532 Ultra-Low Power 32.768kHz MEMS Oscillator

32.768KHz / Output: LVCMOS / NanoDrive / Package: 1.5×0.8×0.55mm

Smallest footprint in chip-scale (CSP): 1.5x0.8mm
Fixed 32.768kHz
<10ppm frequency tolerance
Ultra-low power: <1μA
Directly interfaces to XTAL inputs
Supports coin-cell or super-cap battery backup voltages
Vdd supply range: 1.5V to 3.63V over -40°C to +85°C
Oscillator output eliminates external load caps
Internal filtering eliminates external Vdd bypass cap
NanoDrive™ programmable output swing for lowest power
Pb-free, RoHS and REACH compliant
Application: RTC Reference Clock, Fitness Watches, Pulse-per-Second Timekeeping , Battery Management Timekeeping, Mobile Phones, etc.
