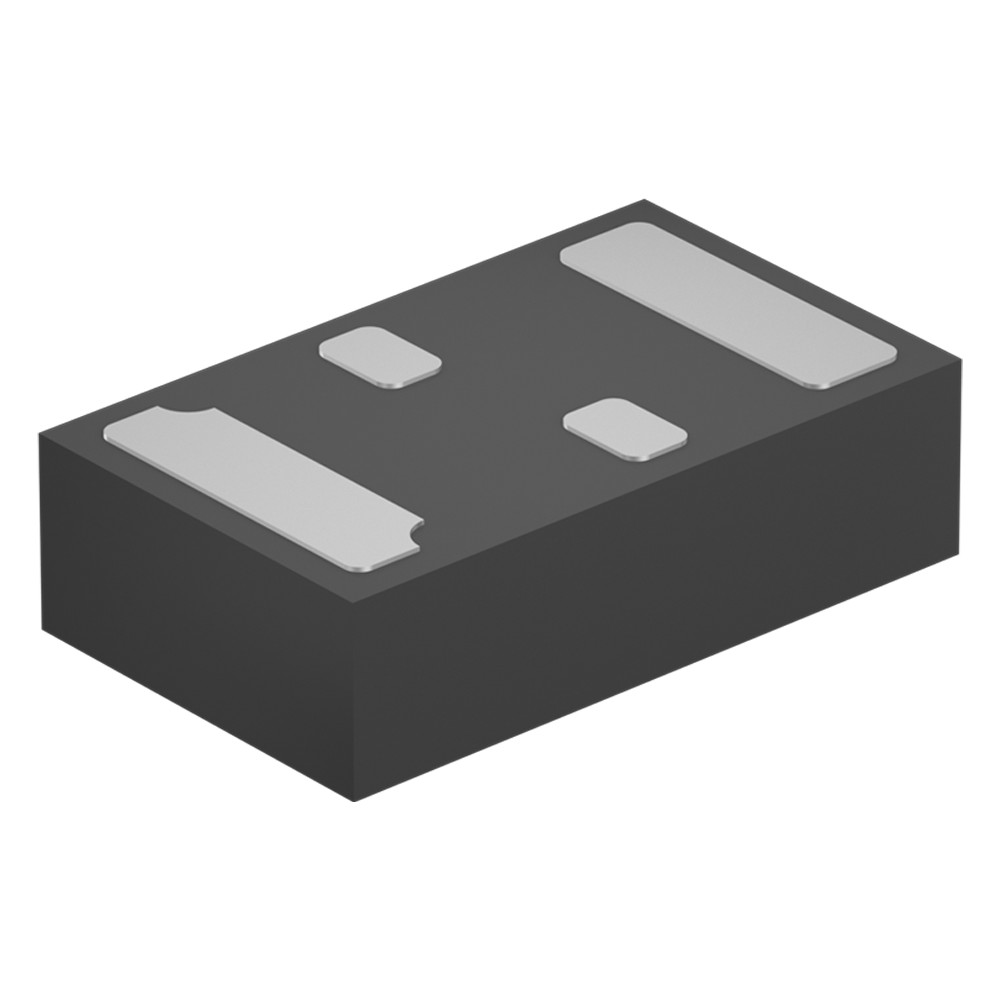

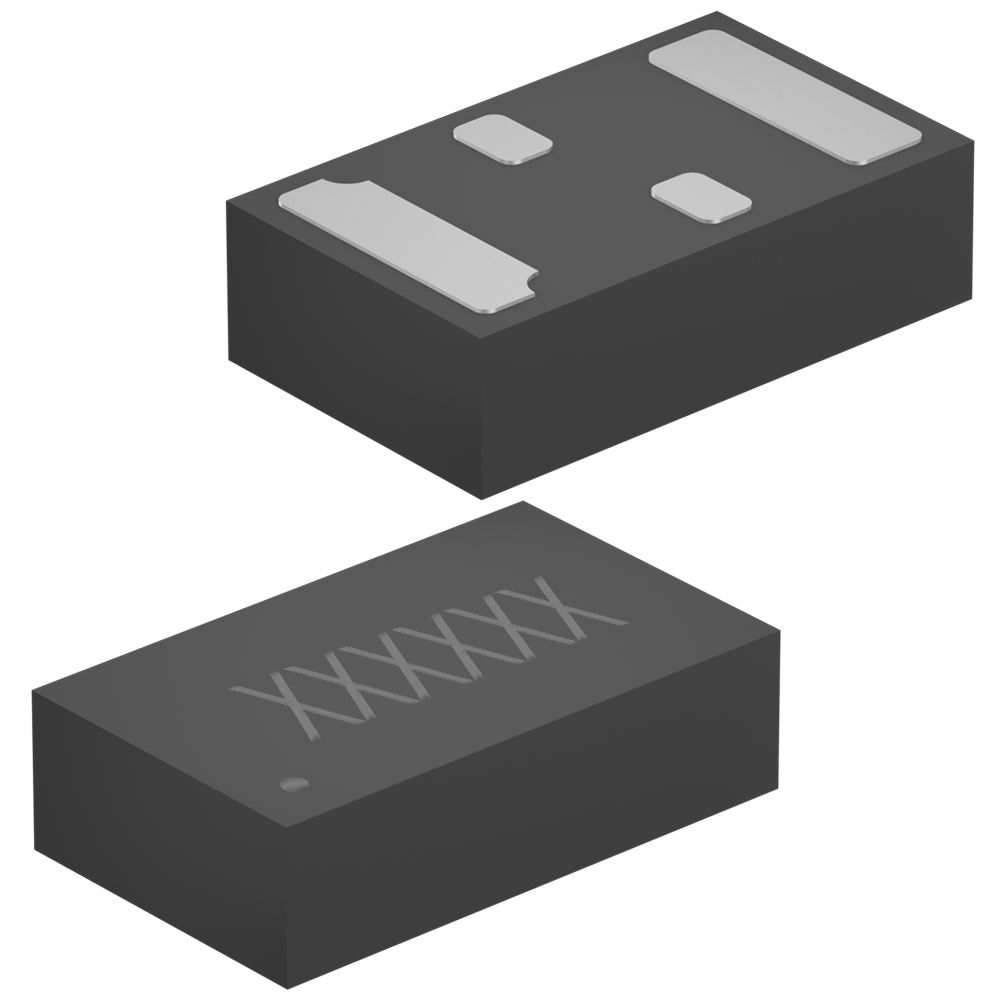

SJK1630 Ultra-Low Power 32.768kHz MEMS Oscillator

32.768KHz / 16.384KHz / Output: LVCMOS / Package: 2.0×1.2×0.55mm

Frequency: 32.768KHz / 16.384KHz
<20ppm initial tolerance
<100ppm stability over -40°C to +85°C
Small SMD package: 2.0x1.2mm (2012)
Ultra-low power: 1.0μA typ
Vdd supply range: 1.5V to 3.63V
Wide operating temperature range options
Internal filtering eliminates external Vdd bypass capacitors
Pb-free, RoHS and REACH compliant
Application: Industrial timekeeping, RTC Reference Clock, Multi-drop 32kHz clock distribution, WiFi /Bluetooth modules, Industrial battery management, etc.
