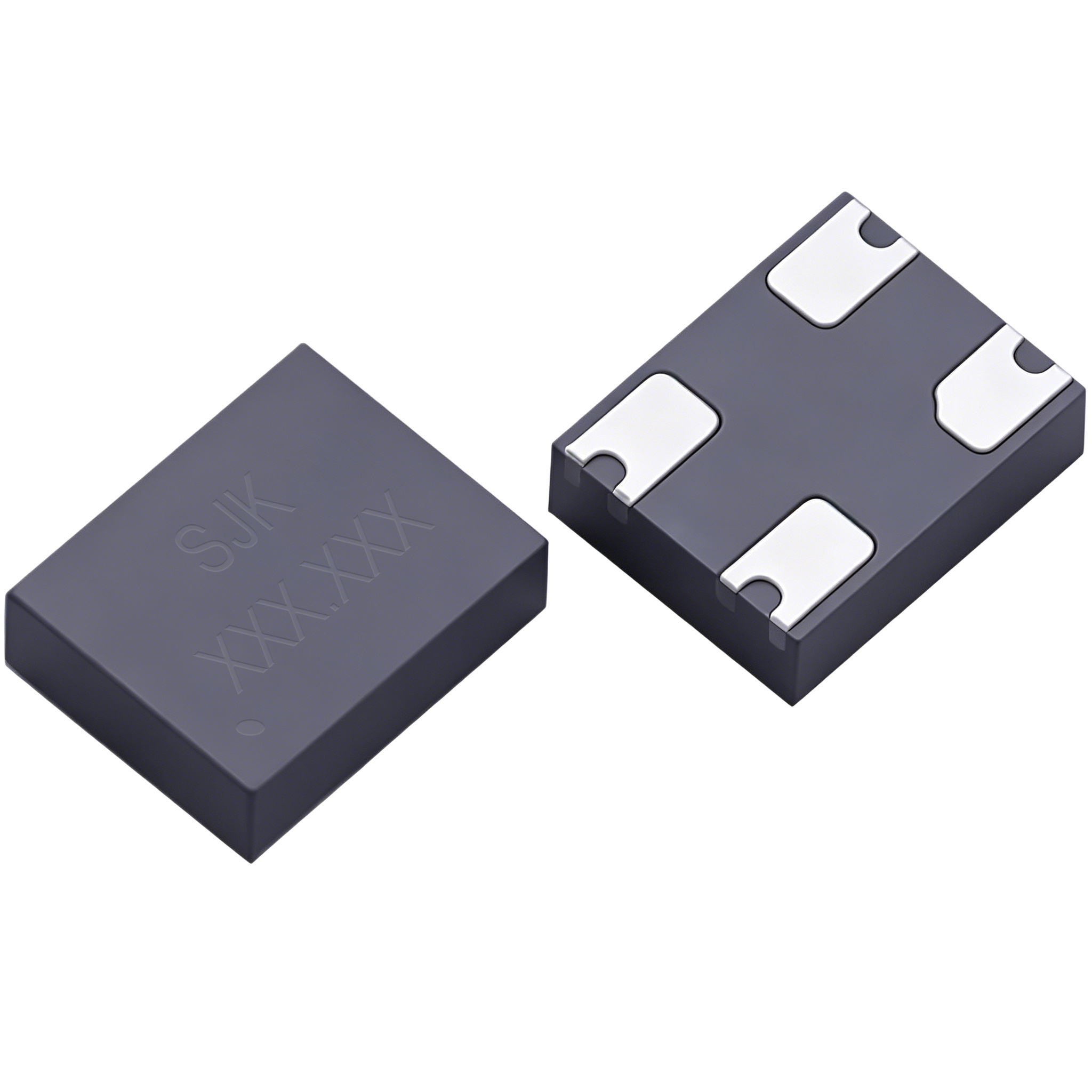

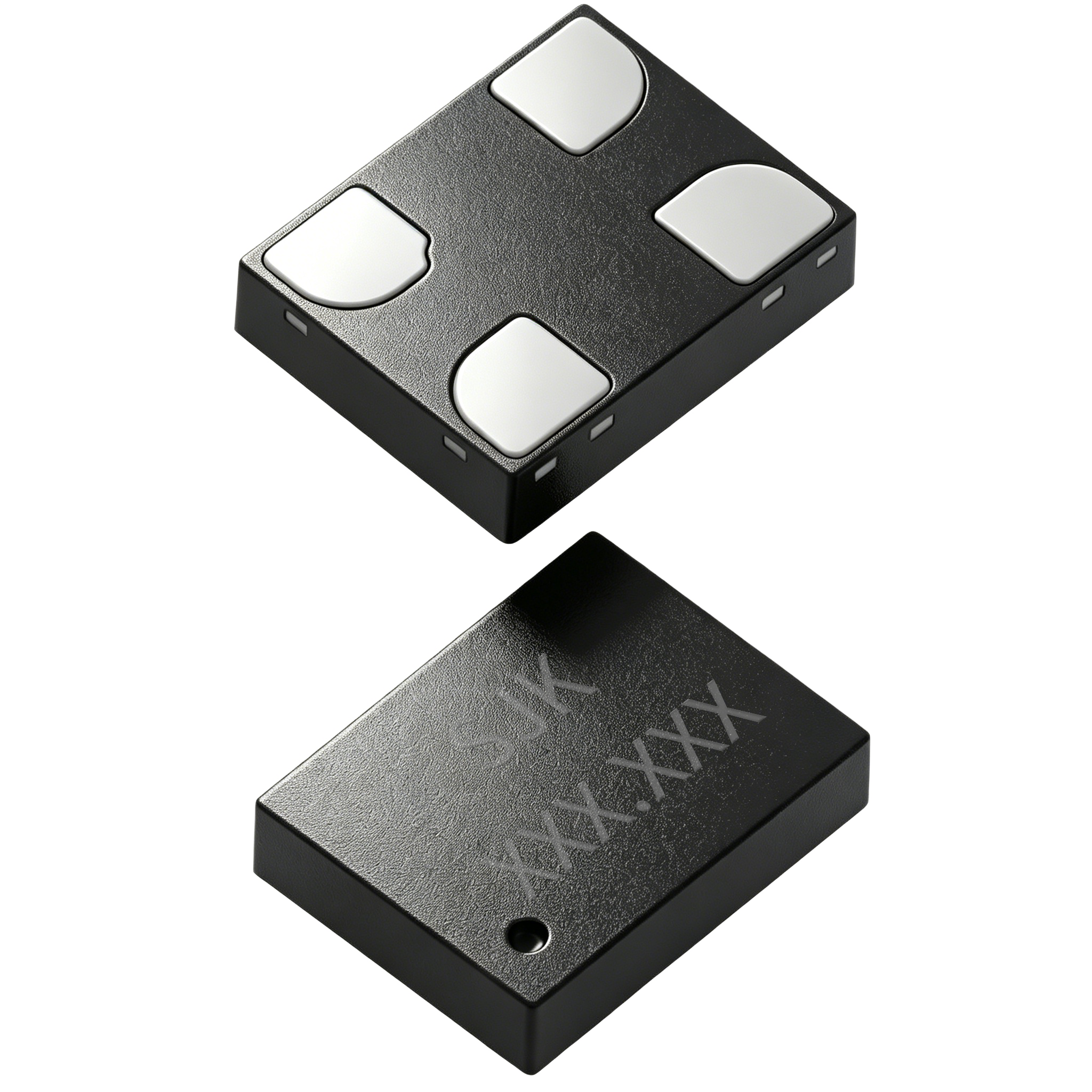

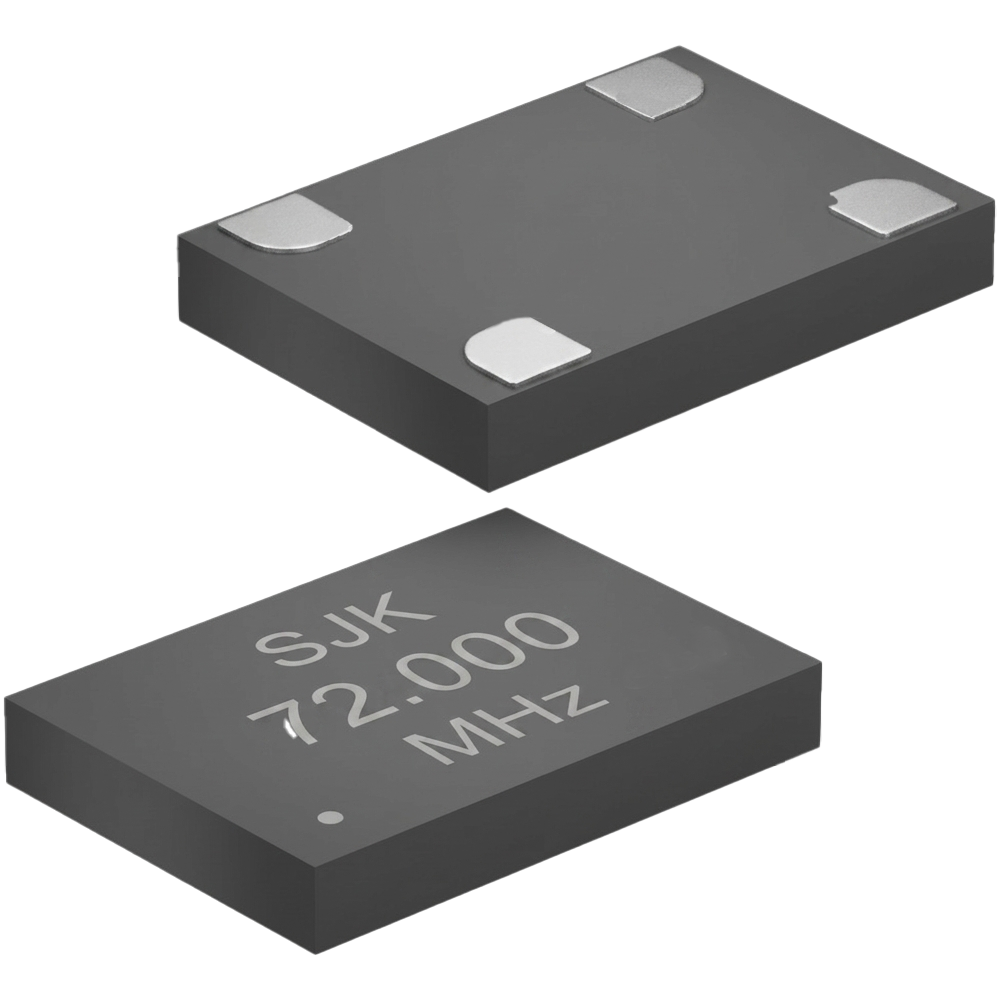

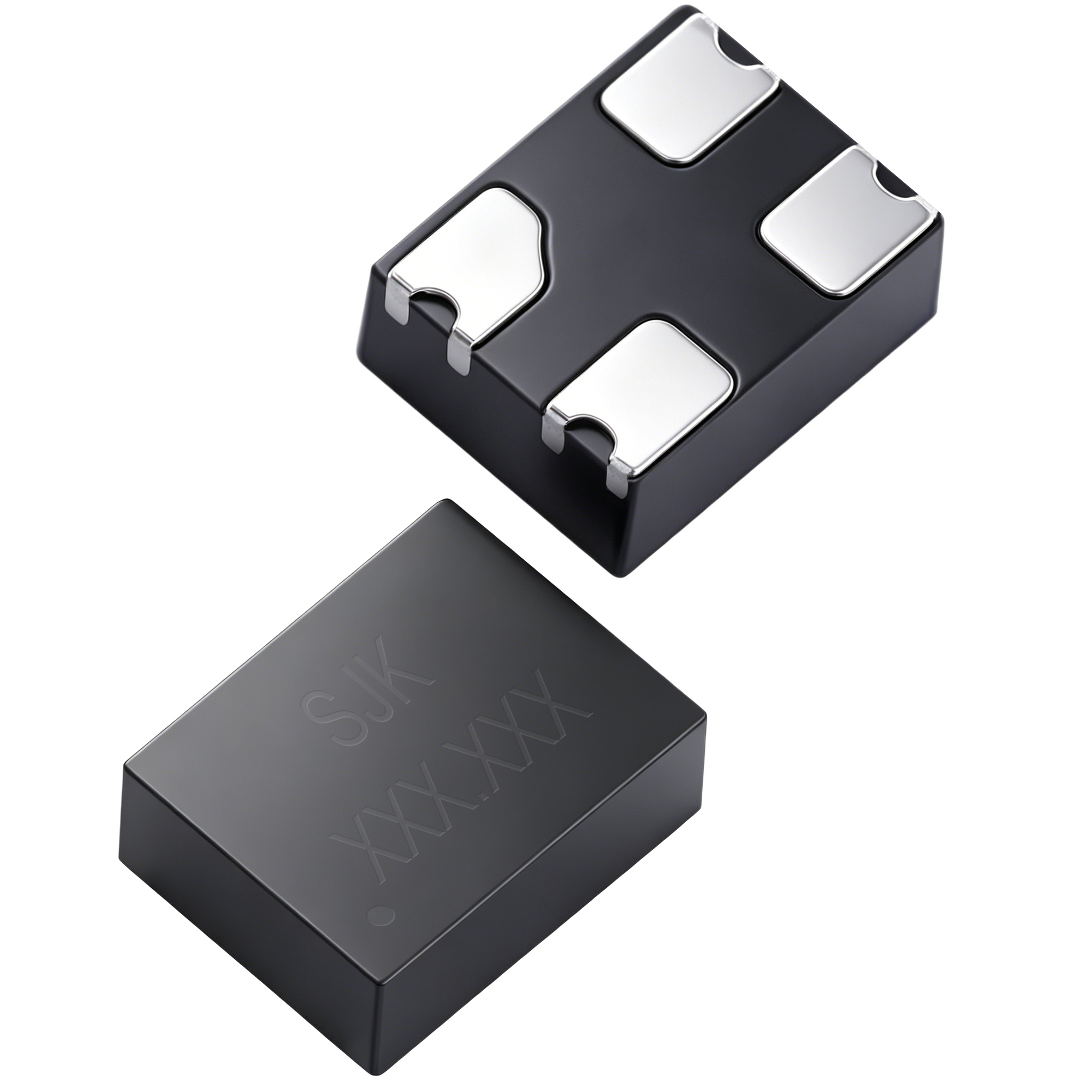

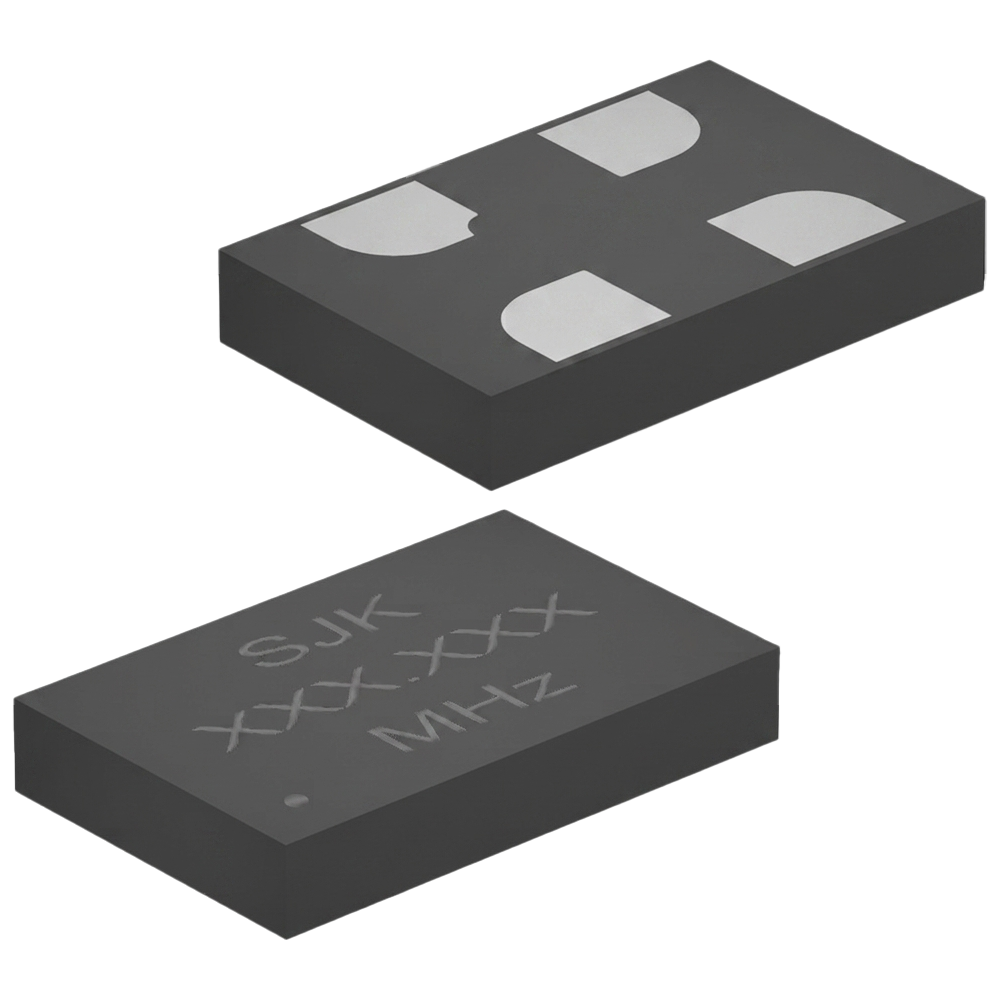

SJK8009 Low Power MEMS Oscillator

115MHz~137MHz / CMOS / Package: 2016, 2520, 3225, 5032, 7050

Frequency range: 115MHz to 137MHz
Excellent total frequency stability as low as ±20ppm
Operating temperature from -40°C to 85°C.
Low power consumption of 4.9mA typical at 1.8V
Standby mode for longer battery life
Fast startup time of 5ms
LVCMOS/HCMOS compatible output
Packages: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x 5.0mm
RoHS and REACH compliant, Pb-free
Applications: Ideal for GPON/EPON, Network switches, routers, Servers, Embedded systems, Ideal for Ethernet, PCI-E, DDR, etc.
