SJK8209 Ultra Performance MEMS Oscillator

80MHz~220MHz / CMOS / Package: 2520, 3225, 5032, 7050

Any frequency between 80MHz and 220MHz accurate to 6 decimal places
Ultra low phase jitter: 0.5ps (12kHz to 20MHz)
Frequency stability as low as ±10ppm
Industrial or extended commercial temperature range
LVCMOS/LVTTL compatible output

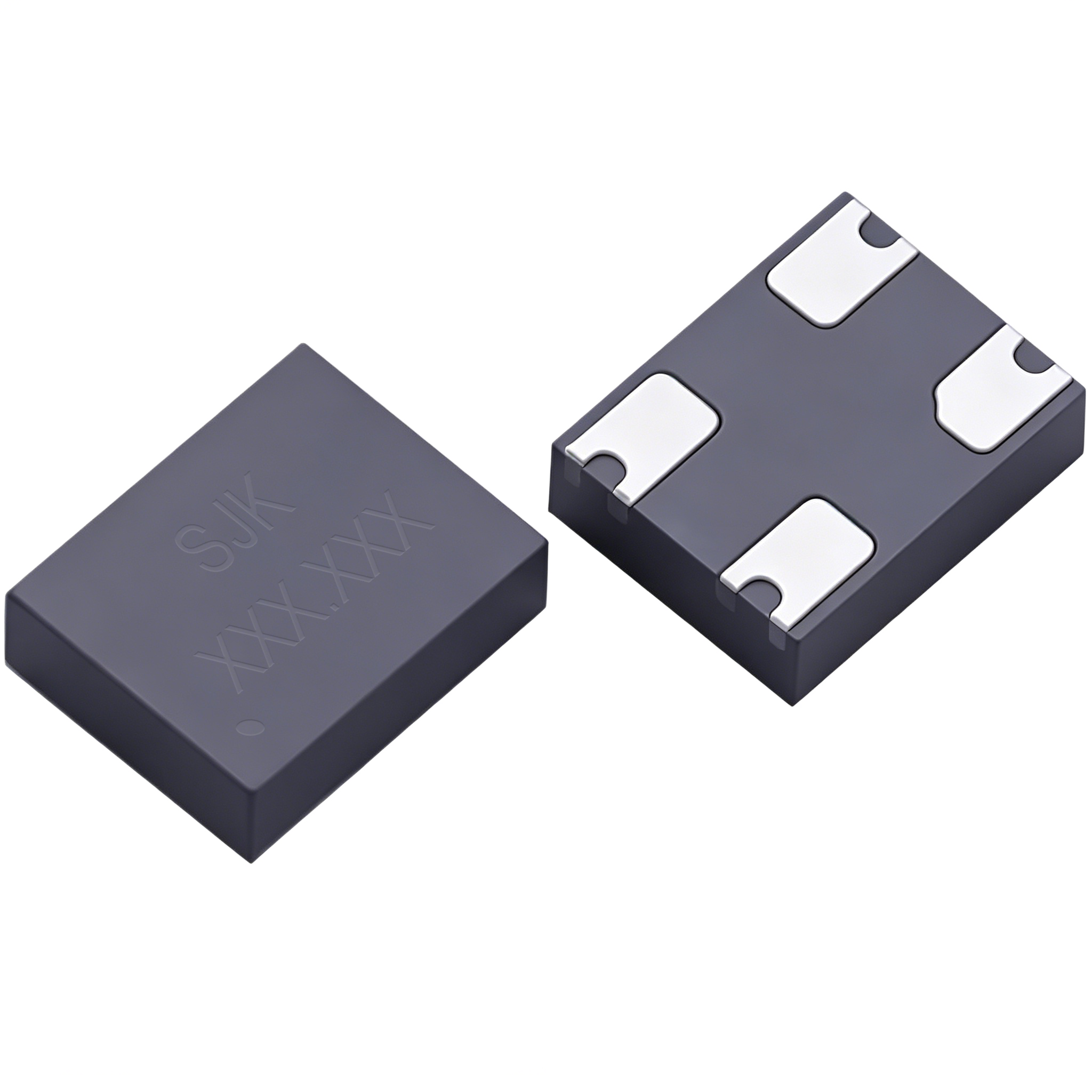

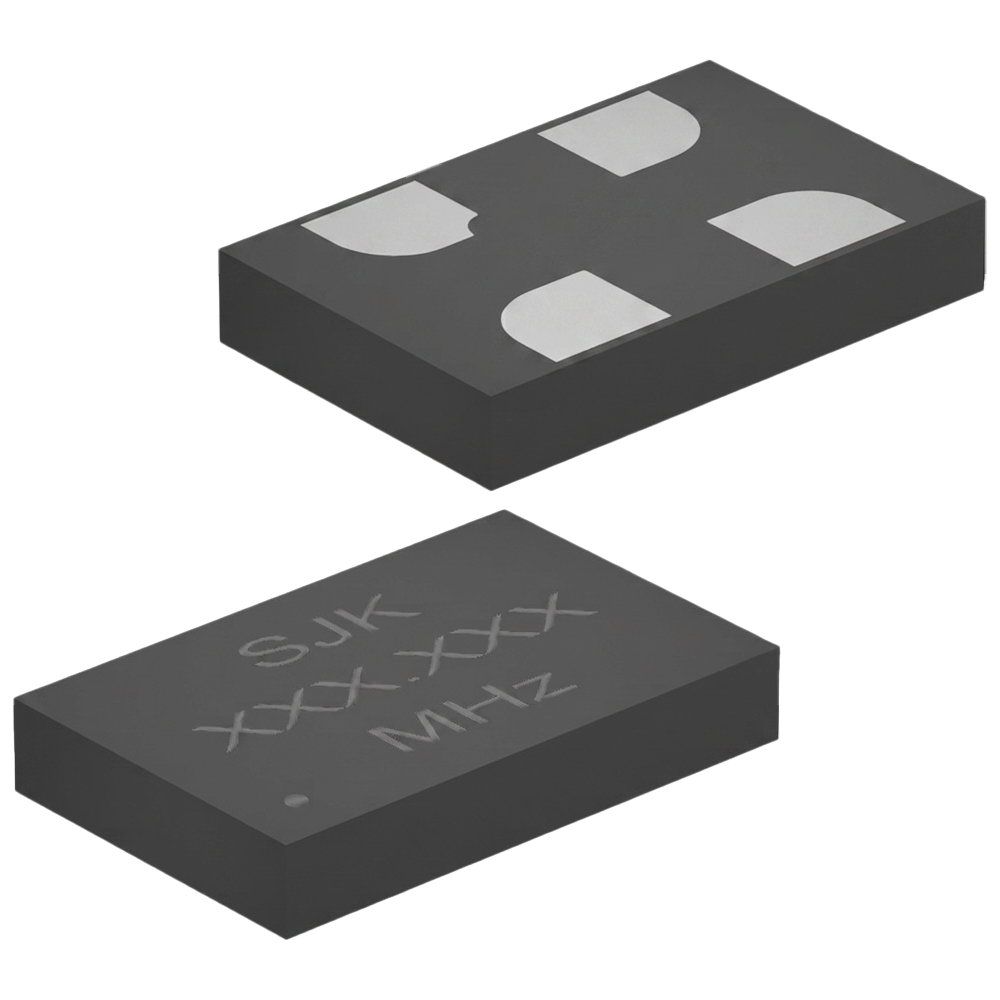

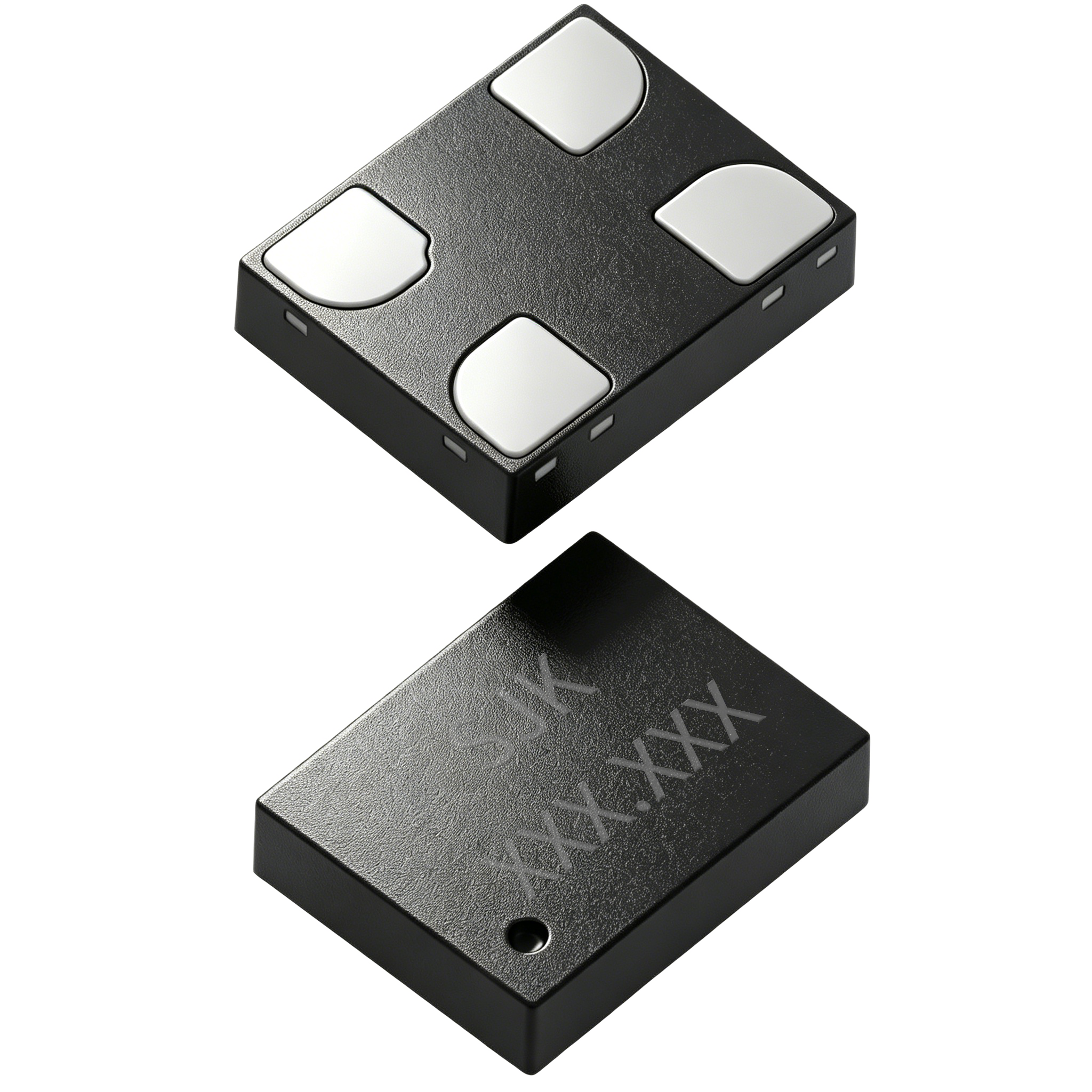

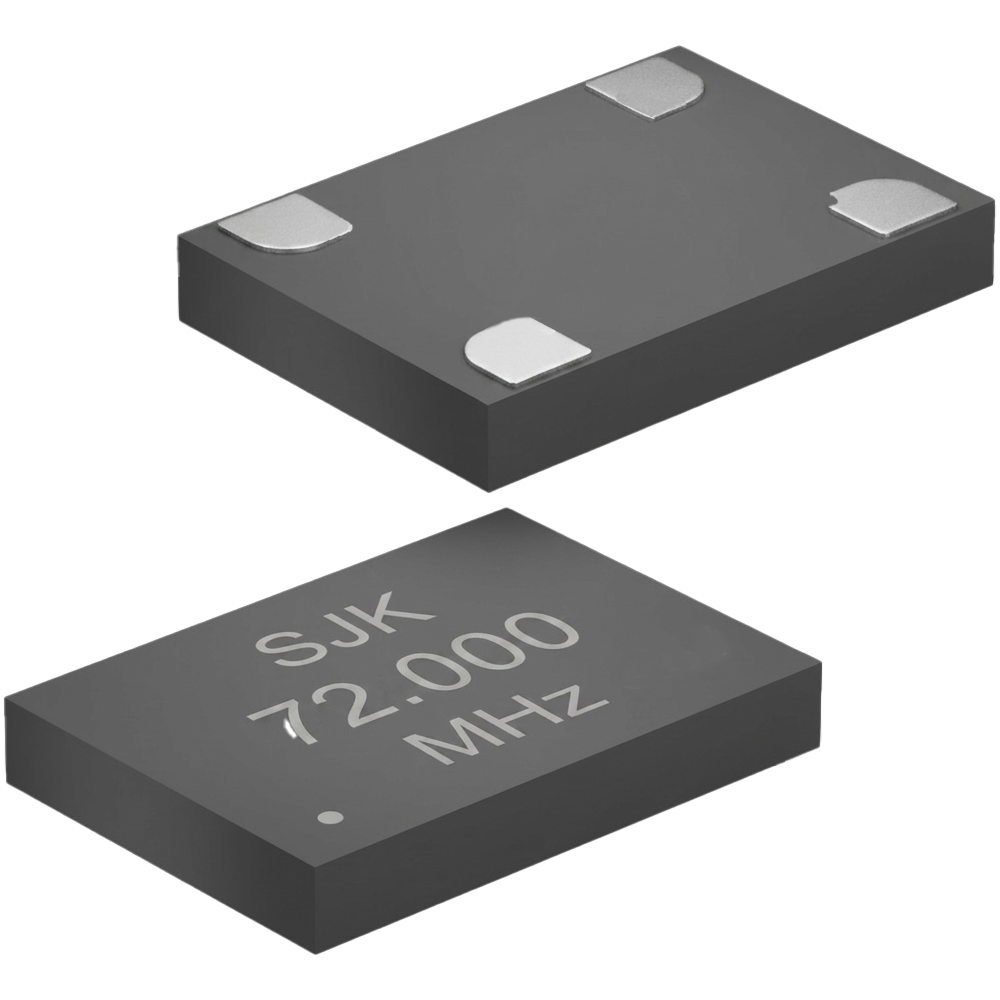

Standard 4-pin packages: 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0mm
Pb-free, RoHS and REACH compliant
Ultra short lead time
Applications: SATA, SAS, Ethernet, PCI Express, video, WiFi, Computing, storage, networking, telecom, industrial control, etc.
