SJK8918 High Temperature MEMS Oscillator

1MHz~110MHz / CMOS / Package: 2016, 2520, 3225, 5032, 7050

Frequencies between 1 MHz and 110MHz accurate to 6 decimal places
Operating temperature from -40°C to 125°C
Supply voltage of 1.8V or 2.5V to 3.3V
Excellent total frequency stability as low as ±20ppm
Low power consumption of 3.5mA typical at 1.8V
LVCMOS/LVTTL compatible output

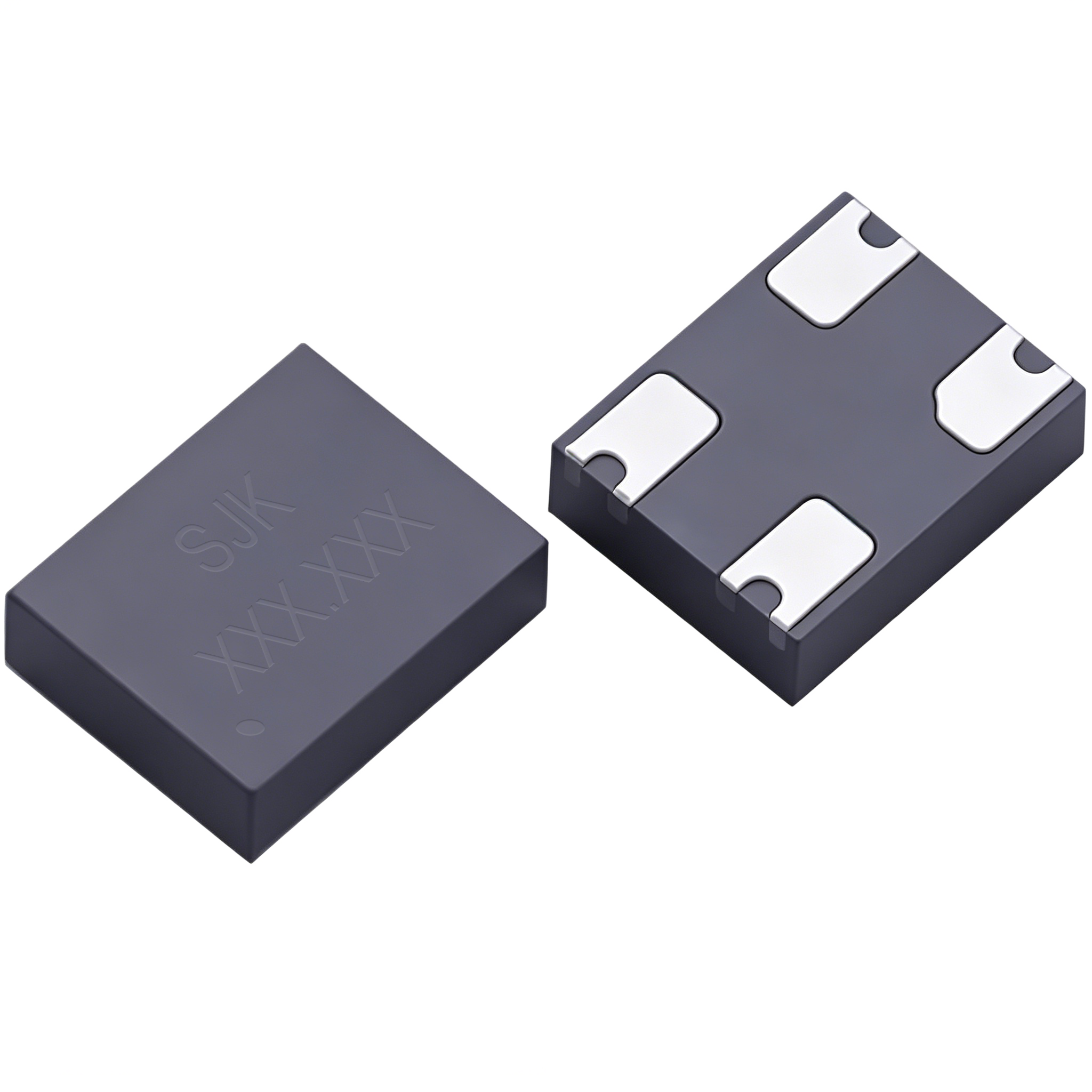

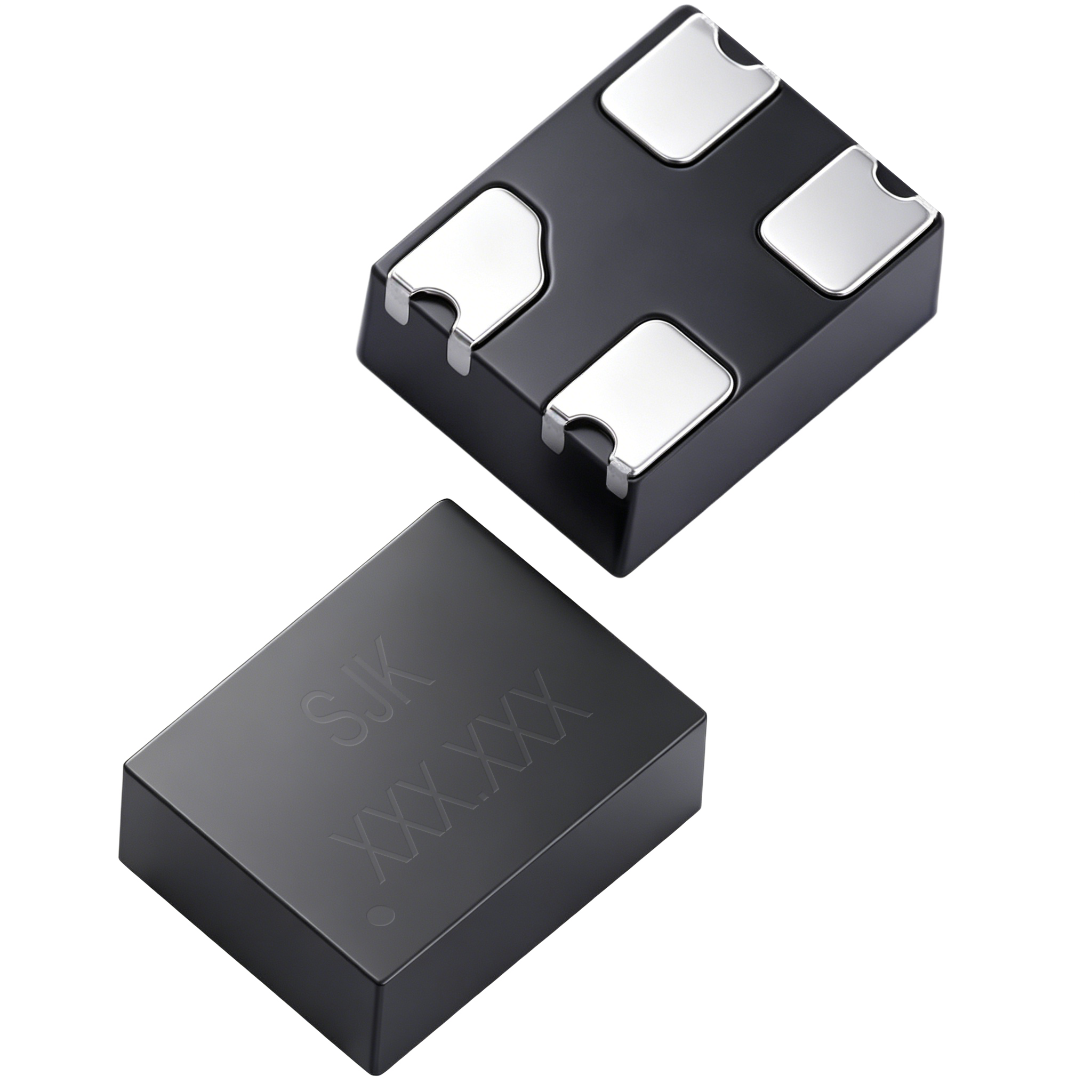

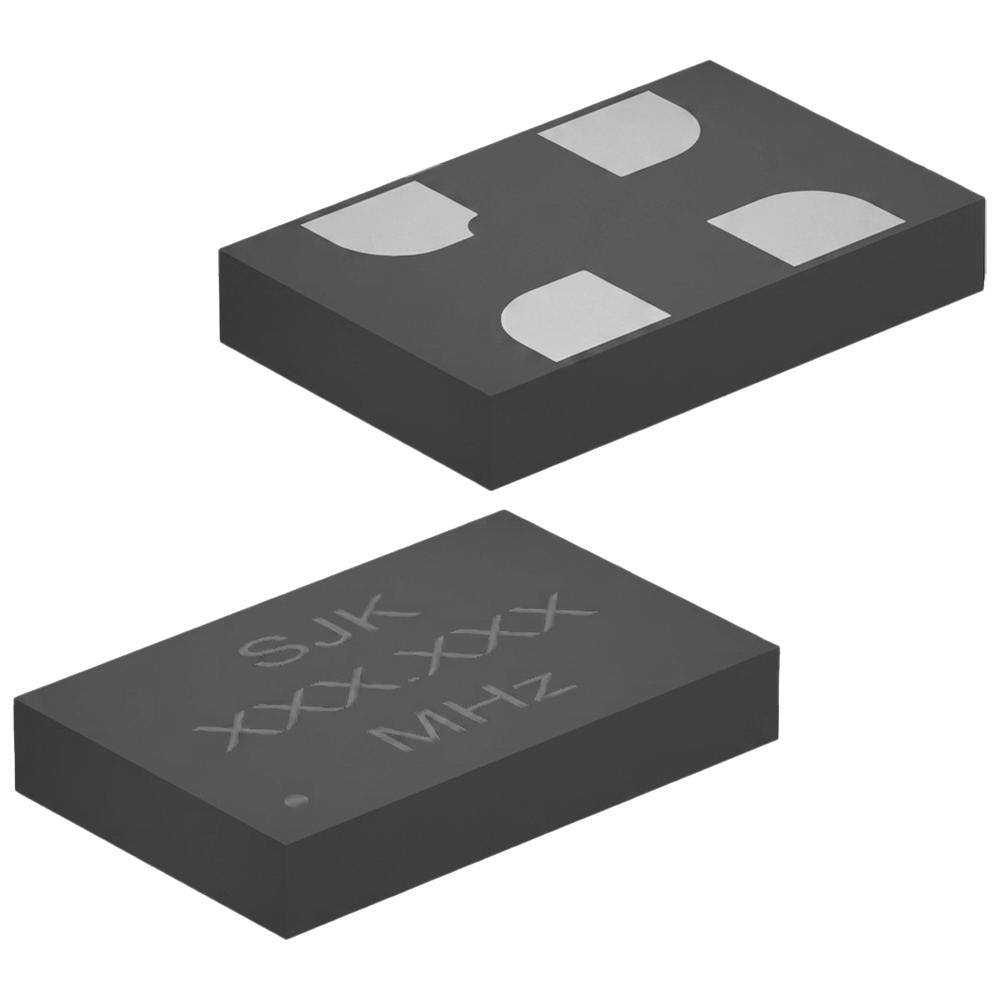

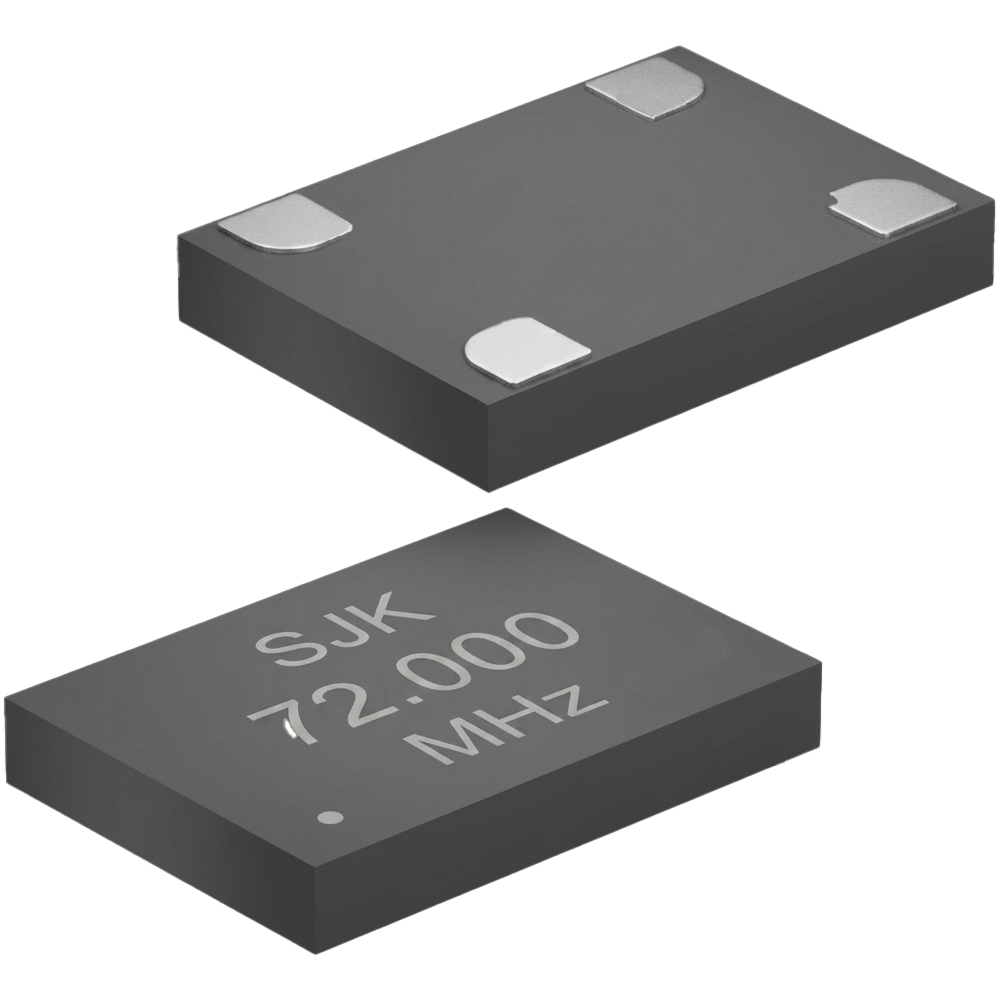

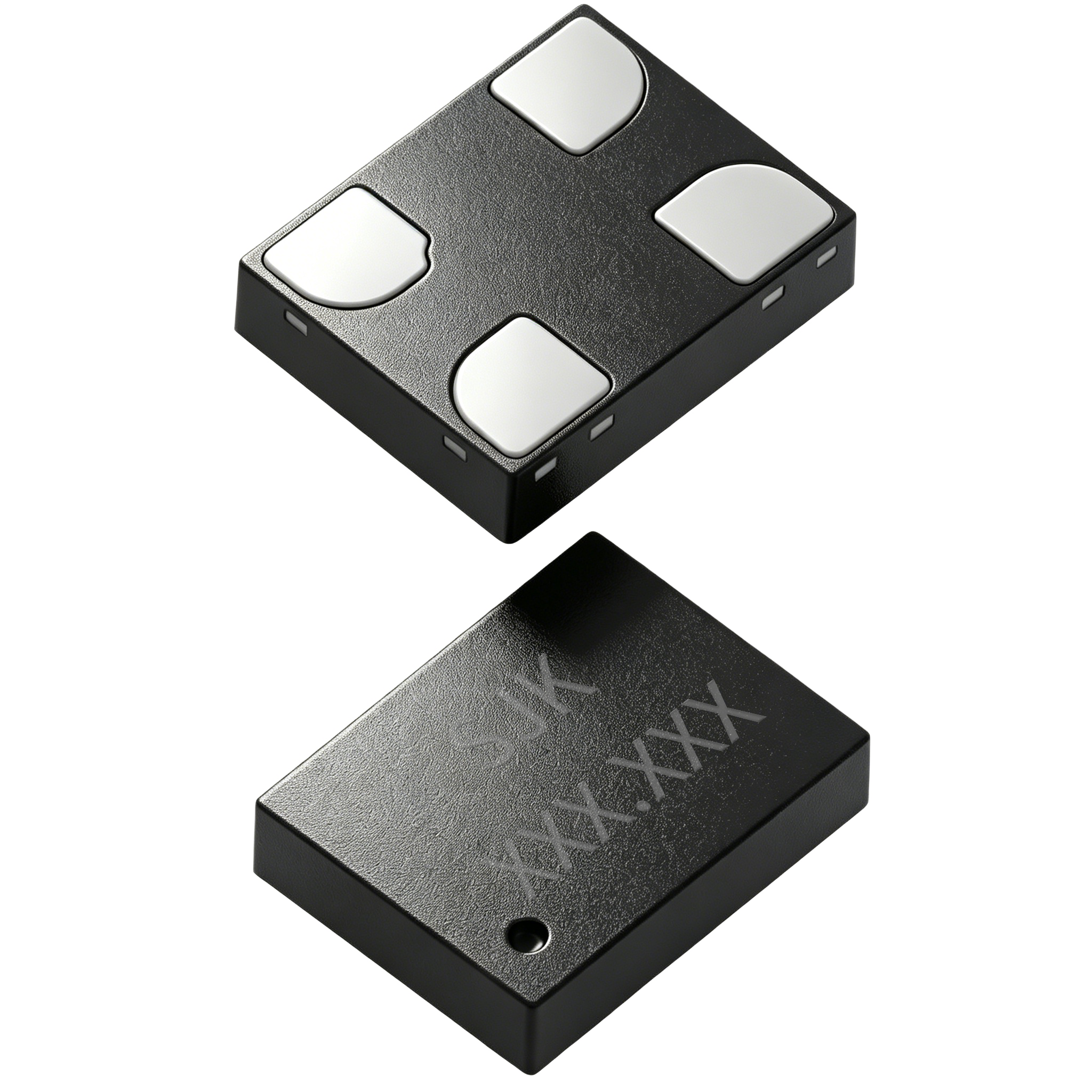

Packages: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0mm
RoHS and REACH compliant, Pb-free
Applications: Industrial, medical, avionics and other high temperature applications, Industrial sensors, PLC, motor servo, outdoor networking equipment, medical video cam, asset tracking systems, etc.
