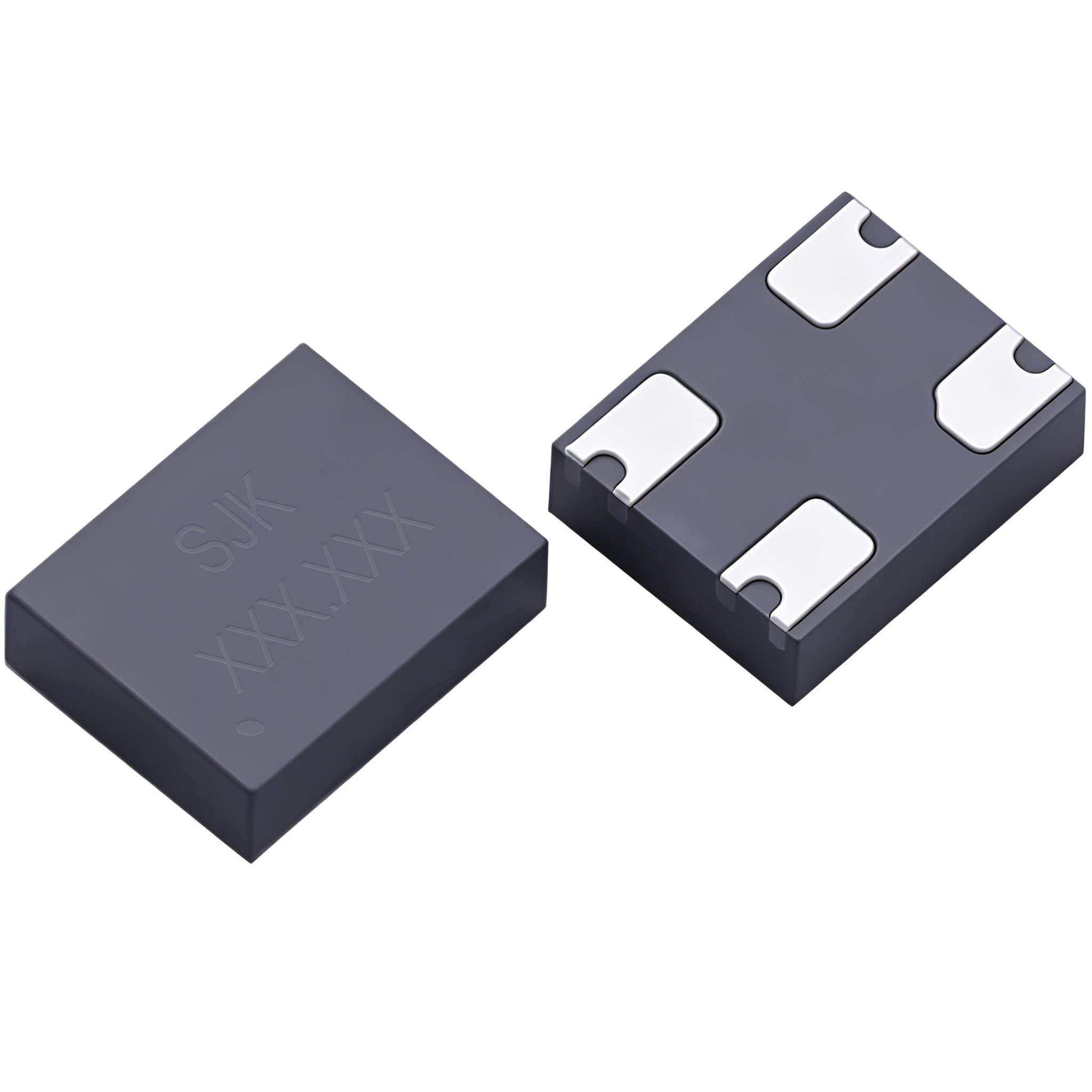

  • SJK8919-High-Temp-MEMS-Oscillator-SMD2520

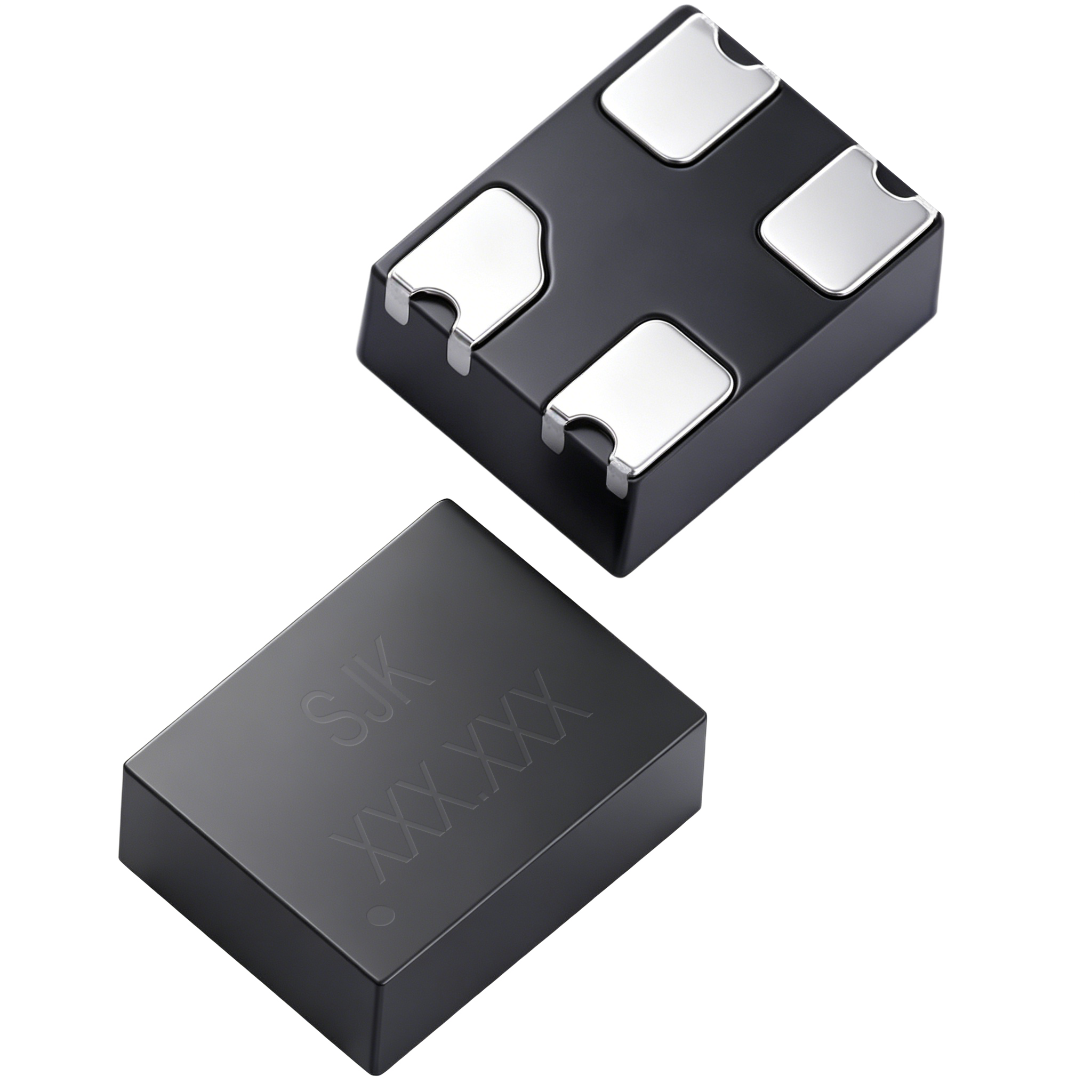

  • SJK8919-High-Temp-MEMS-Oscillator-SMD2016

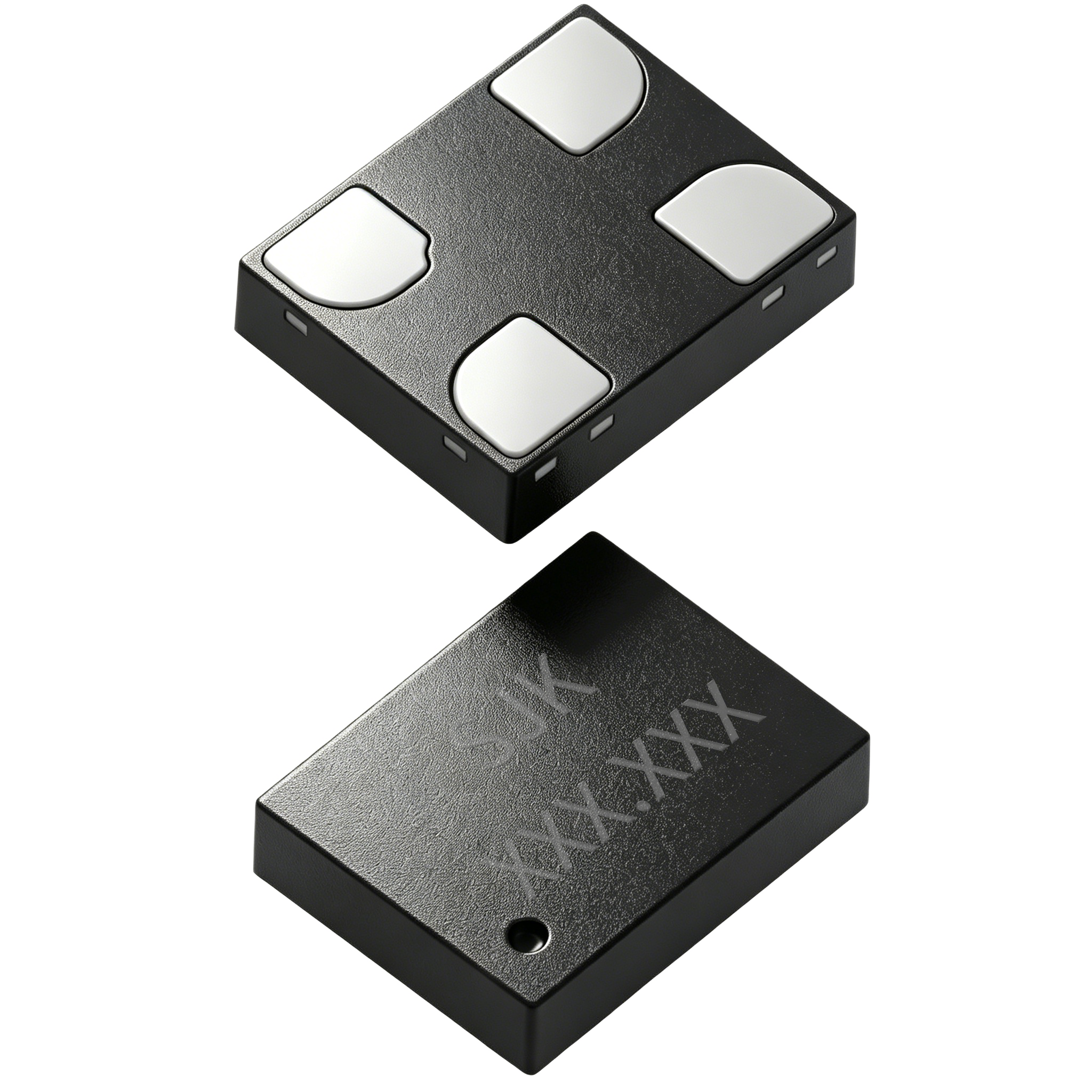

  • SJK8919-High-Temp-MEMS-Oscillator-SMD3225

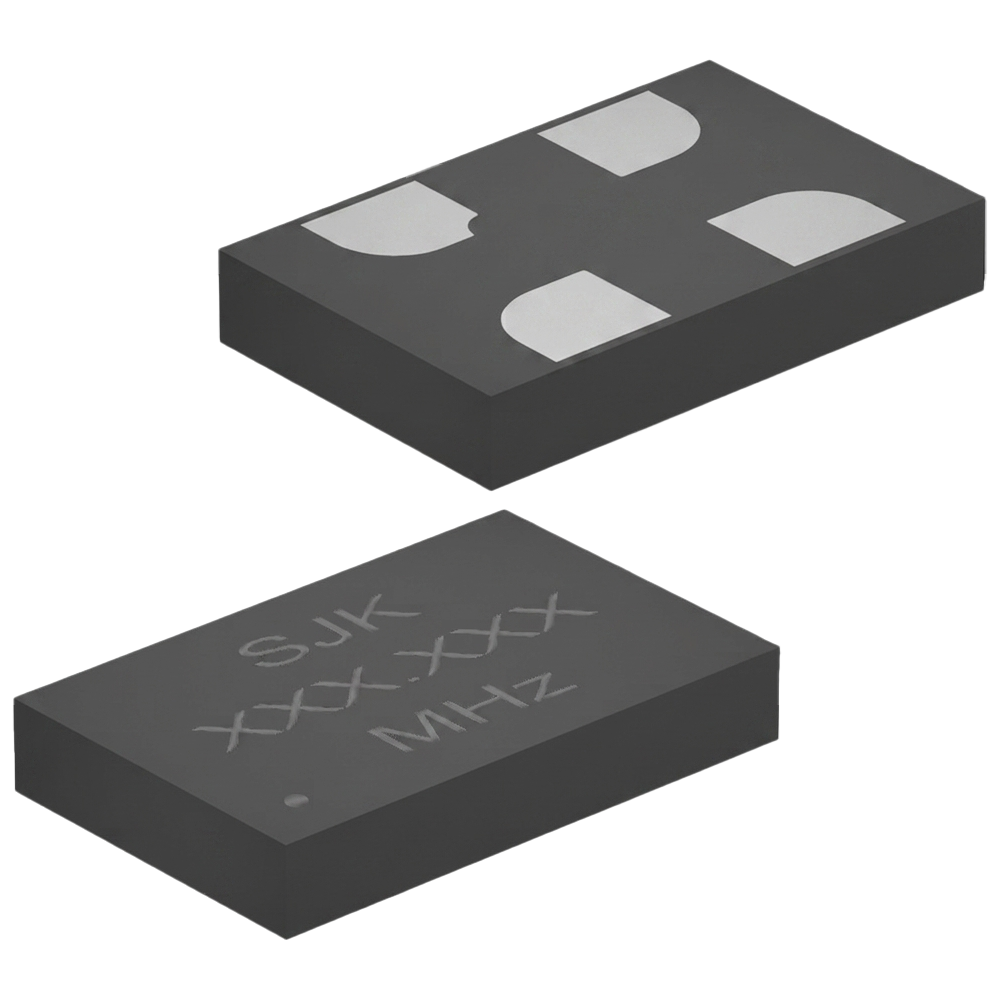

  • SJK8919-High-Temp-MEMS-Oscillator-SMD5032

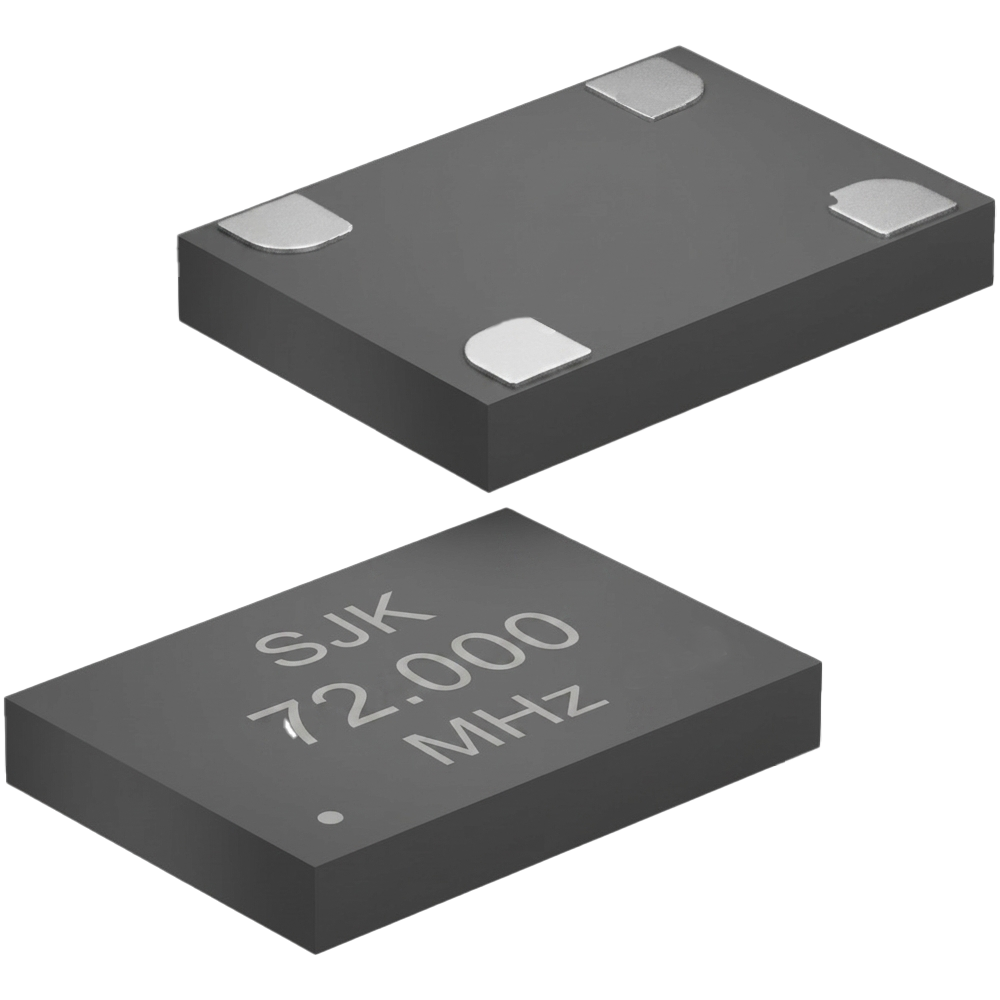

  • SJK8919-High-Temp-MEMS-Oscillator-SMD7050
  • SJK8919-High-Temp-MEMS-Oscillator-SMD2520
  • SJK8919-High-Temp-MEMS-Oscillator-SMD2016
  • SJK8919-High-Temp-MEMS-Oscillator-SMD3225
  • SJK8919-High-Temp-MEMS-Oscillator-SMD5032
  • SJK8919-High-Temp-MEMS-Oscillator-SMD7050

SJK8918/SJK8919 High Temperature MEMS Oscillator

1MHz~156.25MHz / CMOS / Package: 2016, 2520, 3225, 5032, 7050
  • Frequencies between 1 MHz and 156.25MHz accurate to 1Hz
  • Operating temperature from -40°C to 125°C, -55~+125°C
  • Supply voltage of 1.8V or 2.5V to 3.3V
  • Excellent total frequency stability as low as ±20ppm
  • Low power consumption of 4.2mA typical at 1.8V
  • LVCMOS/HCMOS compatible output
  • Packages: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0mm
  • RoHS and REACH compliant, Pb-free
  • Applications: Industrial, medical, avionics and other high temperature applications, Industrial sensors, PLC, motor servo, outdoor networking equipment, medical video cam, asset tracking systems, etc.
