- Spread spectrum for EMI reduction
- Center spread: from ±0.125% to ±2%, ±0.125% step size.
Down spread: -0.25% to -4% with -0.25% step size.
Spread profile option: Triangular, Hershey-kiss
Programmable rise/fall time for EMI reduction: 8 options, 0.25 to 40 ns
Any frequency between 1 MHz and 141 MHz accurate to 6 decimal places
Excellent total frequency stability as low as ±20ppm
Operating temperature from -40°C to 85°C
Low power consumption of 4.0mA typical at 1.8V
Pin1 modes: Standby, output enable, or spread disable
Fast startup time of 5ms
LVCMOS output

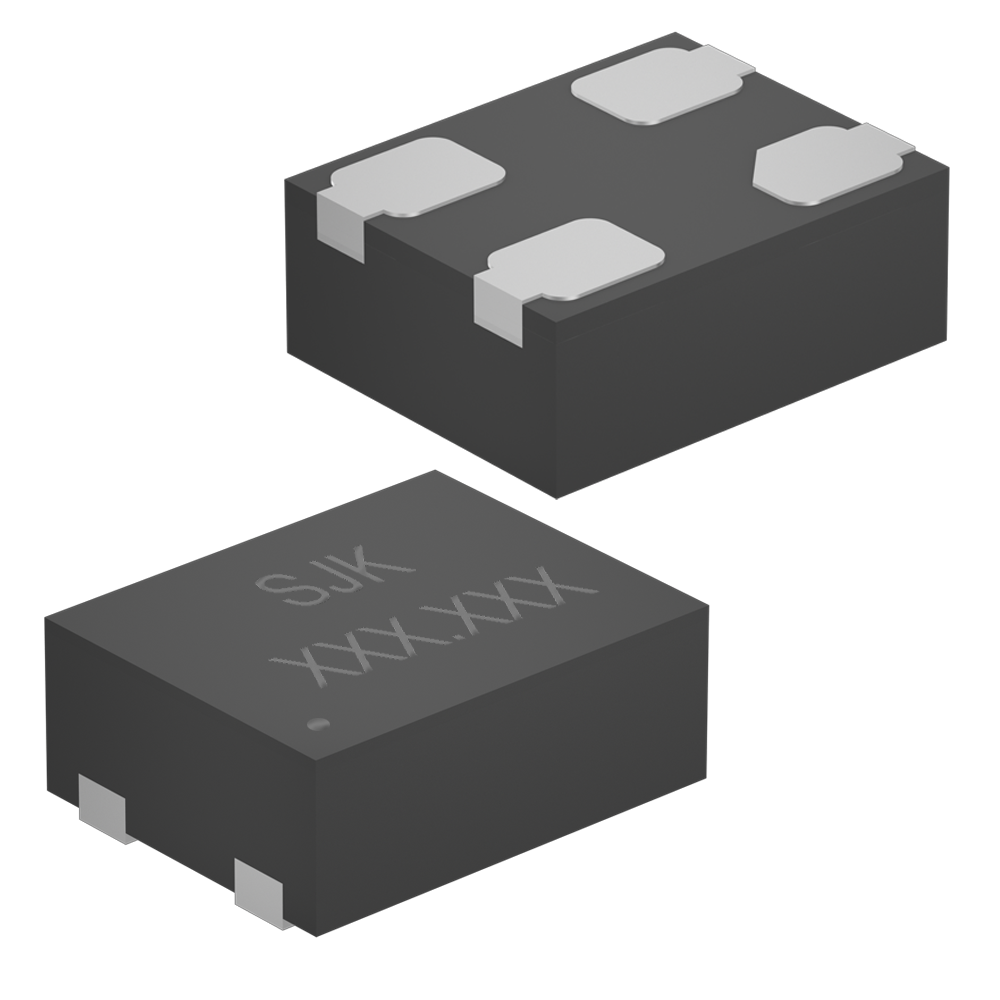

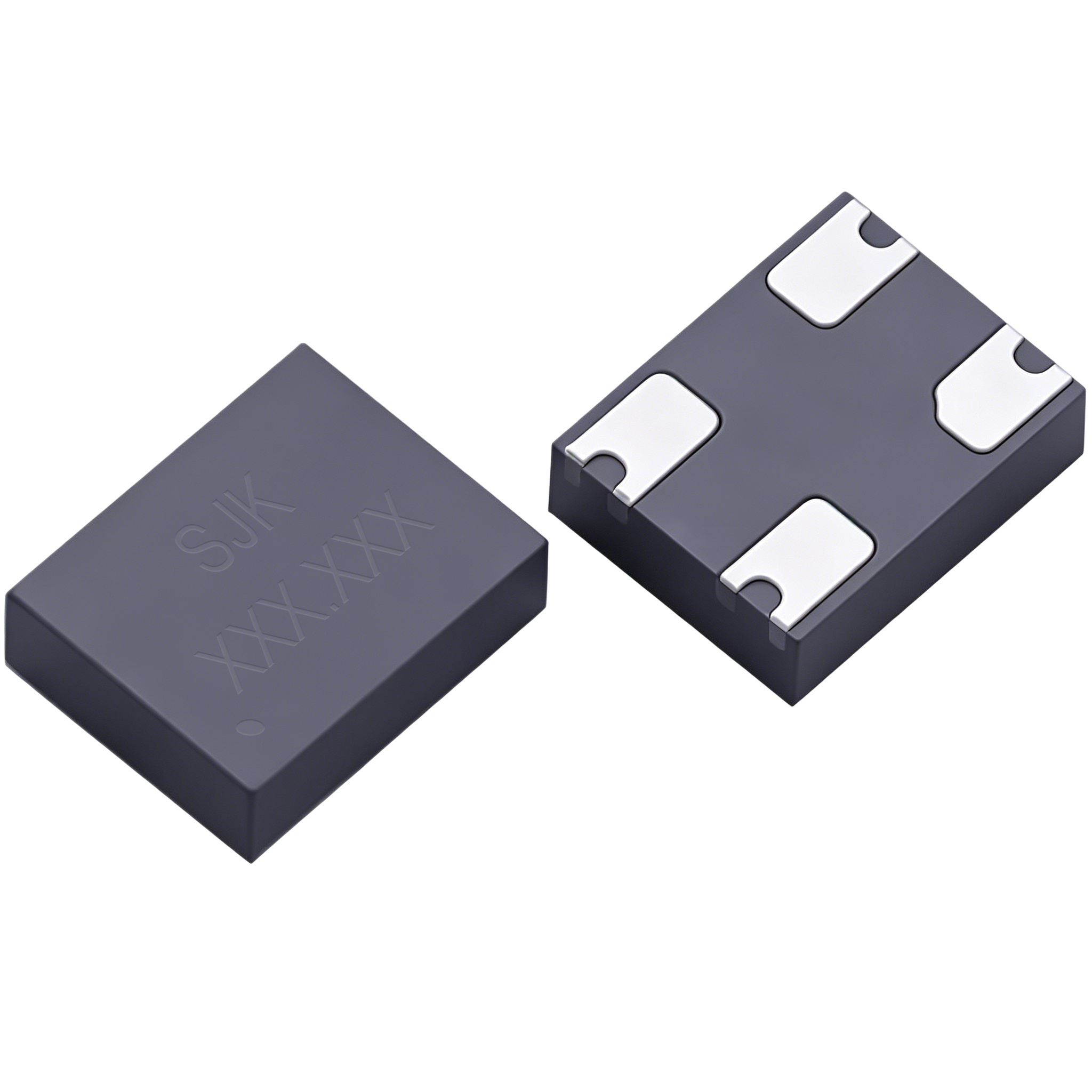

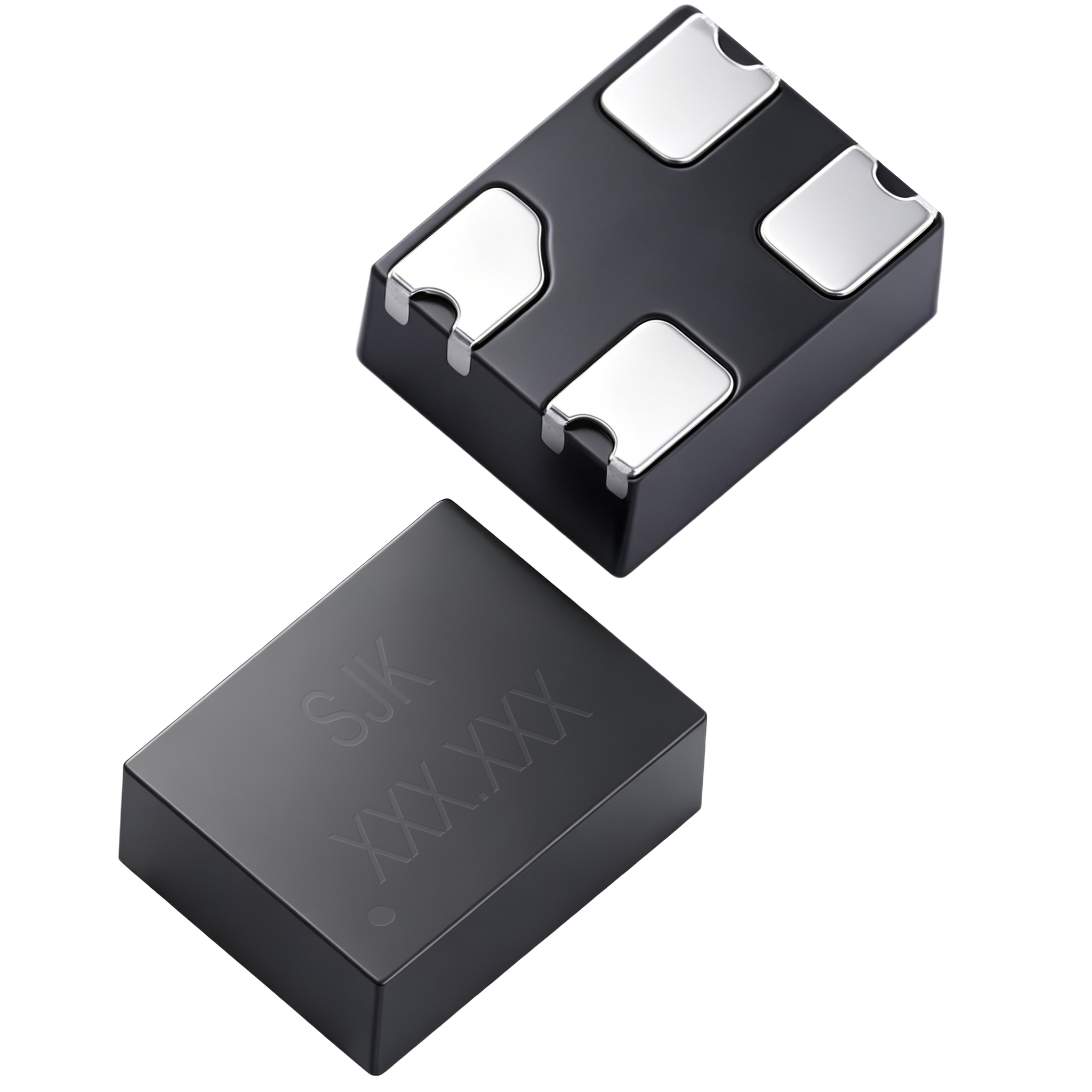

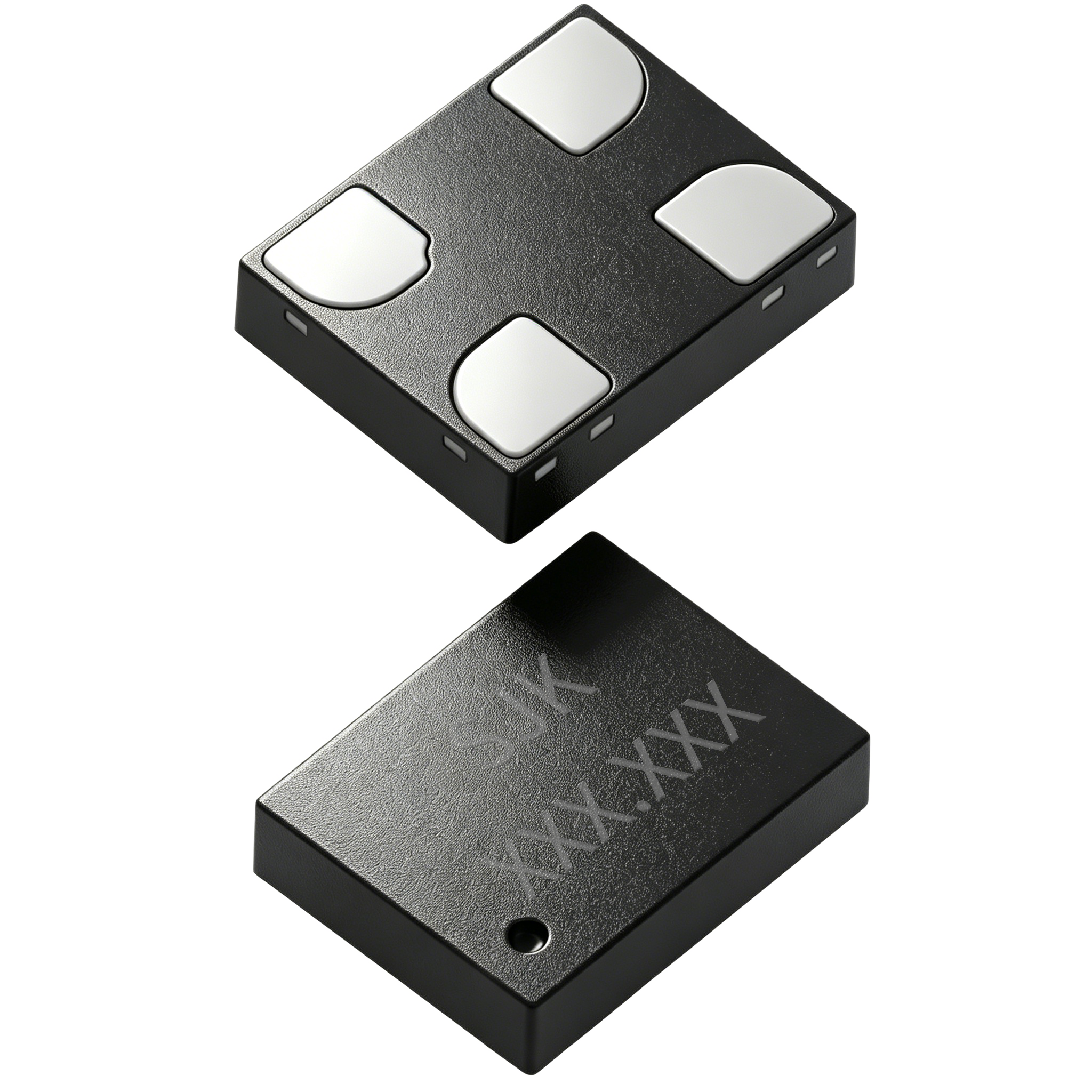

Package size: 2.0x1.6, 2.5x2.0, 3.2x2.5 mm
RoHS and REACH compliant, Pb-free
Application: Surveillance camera, IP camera, PCI express, Industrial motors, Flat panels, Multi function printers, etc.
