SJK9121/SJK9122 Low Jitte Differential MEMS Oscillator

1MHz~725MHz / Output: LVPECL / LVDS / HCSL Package: 2016, 2520, 3225, 5032, 7050
  • Any frequency between 1MHz and 725MHz accurate to 1Hz
  • LVPECL /LVDS /HCSL output signaling types
  • 100fs RMS phase jitter (random) over 12kHz to 20MHz bandwidth
  • Frequency stability as low as ±20ppm
  • Industrial and extended commercial temperature ranges

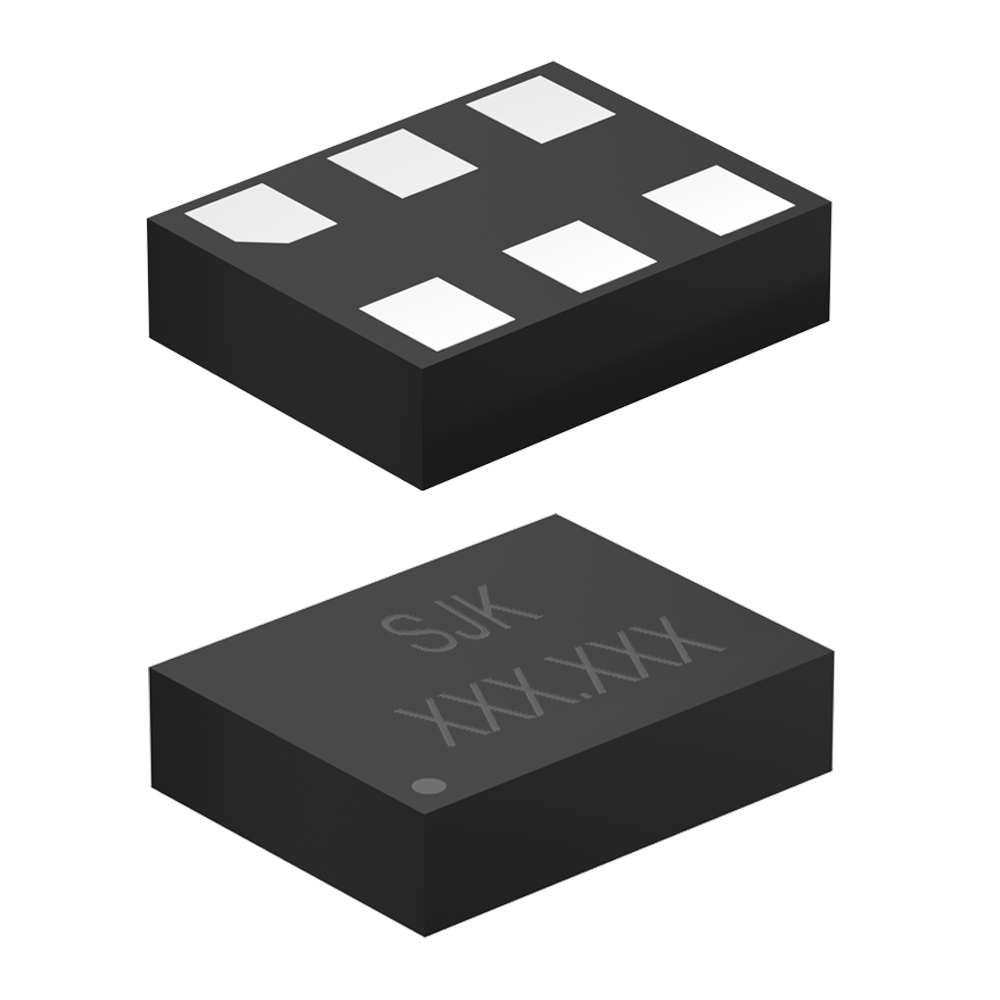

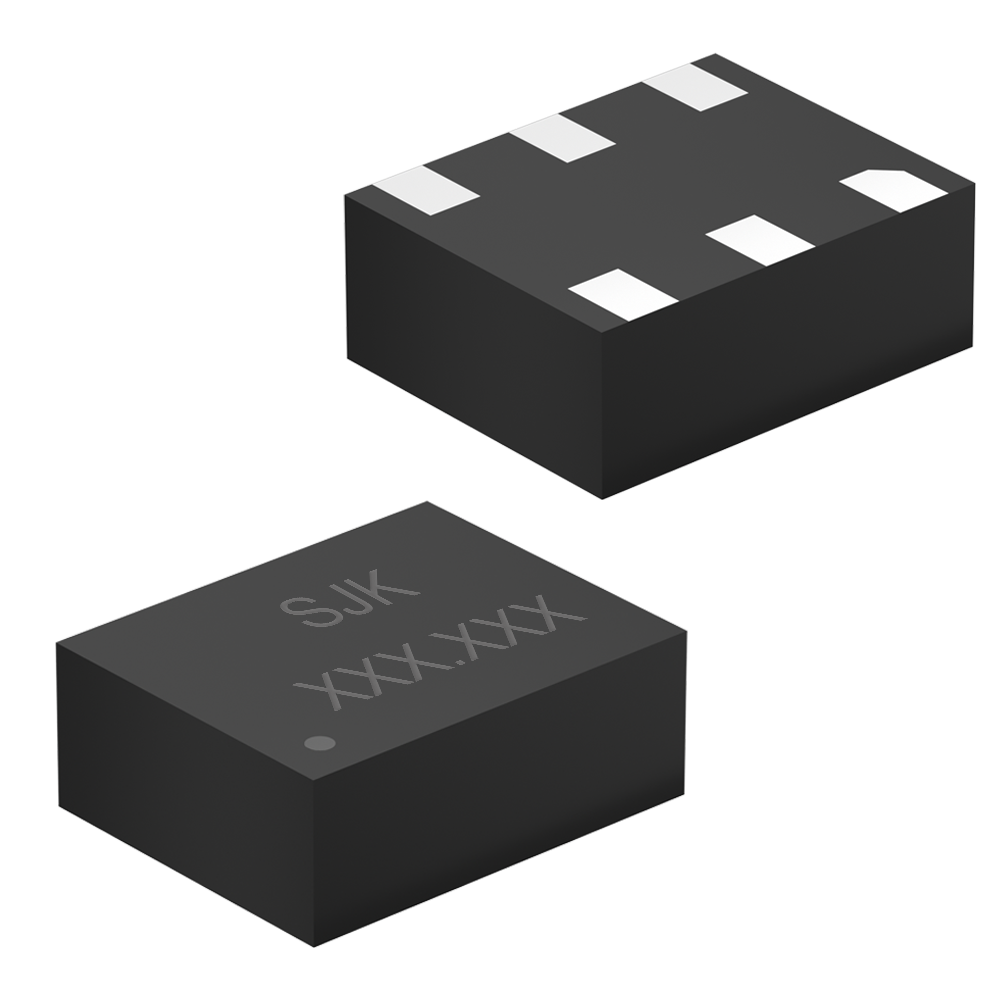

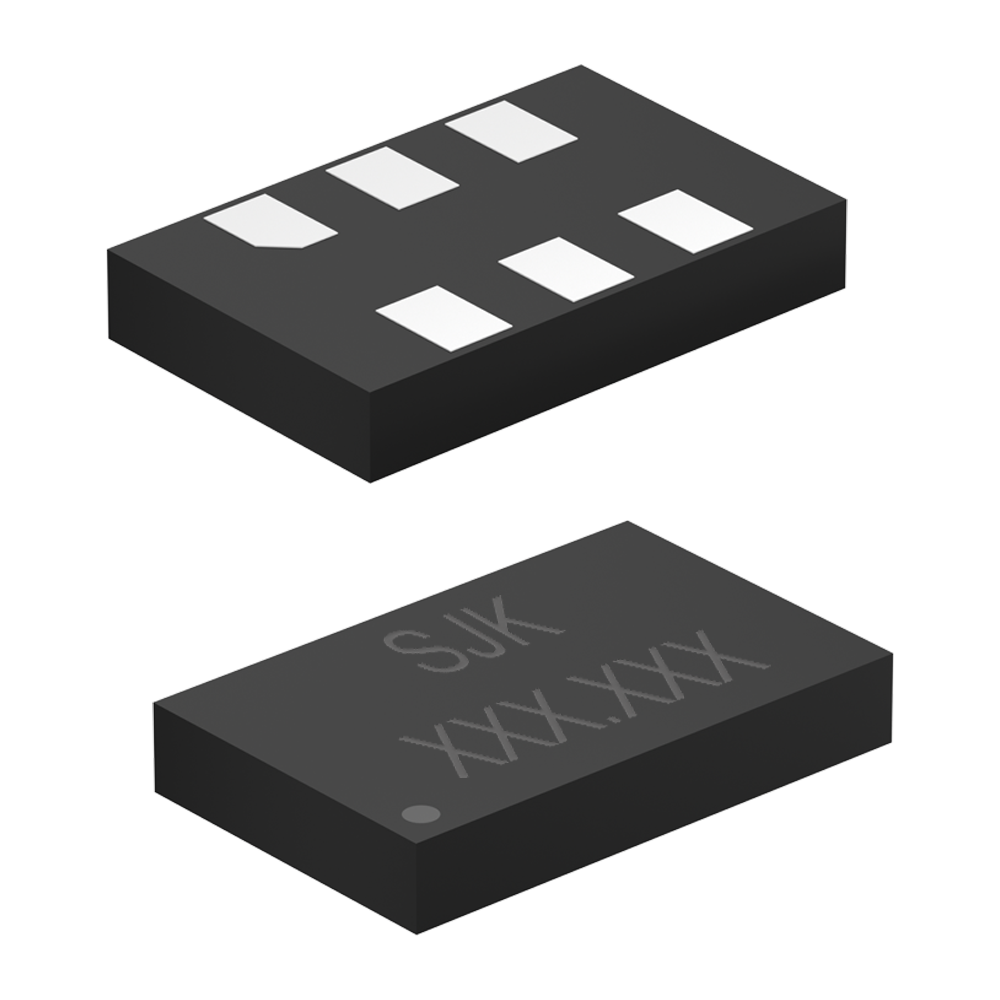

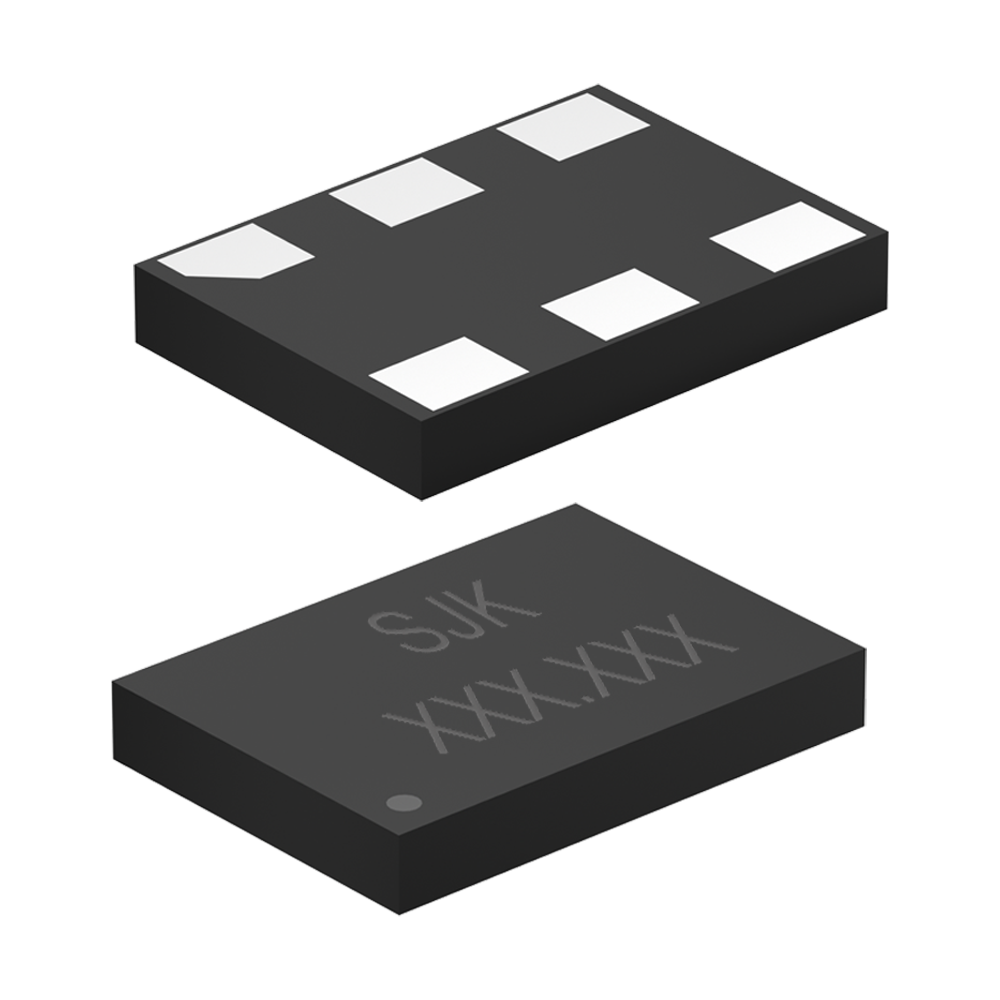

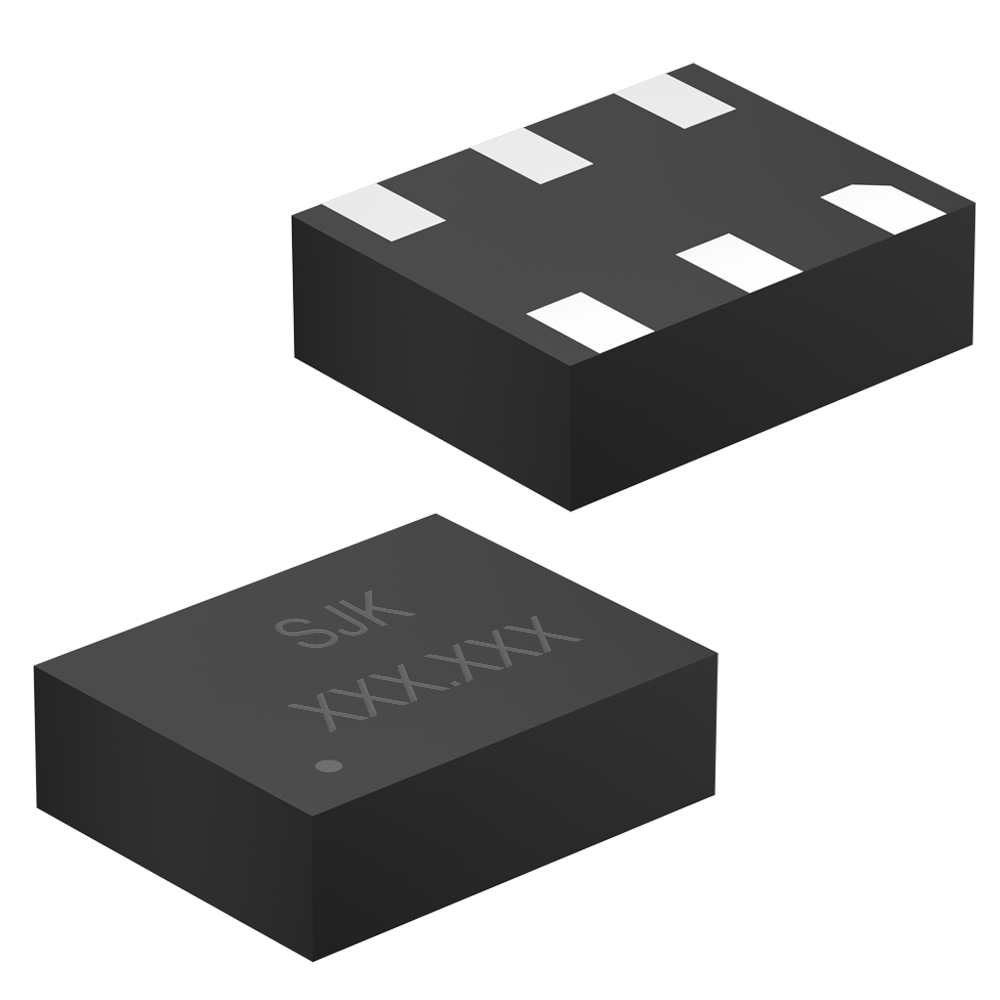

  • Packages: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2 and 7.0x5.0mm
  • RoHS and REACH compliant, Pb-free
  • Applications: 10GB /400GB /1.6TB /3.2TB Ethernet, SONET, SATA, SAS, Fibre Channel, PCI-Express, TSN, Telecom, networking, instrumentation, storage, server, etc.
