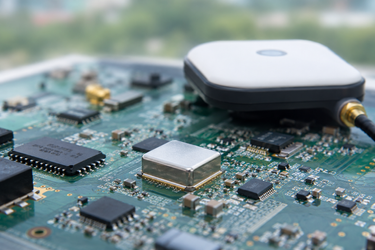

GPS TCXO: Why Temperature Compensated Crystal Oscillators Are Used in GNSS Applications

A GPS TCXO is used in GNSS receivers because positioning depends not only on satellite signals but also on a stable local frequency reference. A conventional crystal oscillator can shift in frequency as its operating temperature changes, while a TCXO for GPS uses temperature-compensation circuitry to reduce this drift. For receivers that must maintain reliable signal tracking and timing across changing environmental conditions, this makes a temperature-compensated crystal oscillator a practical balance between frequency stability, power consumption, size, and cost.

GPS is one part of the broader Global Navigation Satellite System (GNSS) ecosystem, which also includes systems such as Galileo, BeiDou, and GLONASS. In a GNSS receiver, the local oscillator supports RF signal processing and synchronization. GPS.gov notes that GPS satellites carry atomic clocks and transmit highly precise timing information, which receivers use to synchronize their measurements.

Why Do GPS and GNSS Systems Need a Stable Frequency Reference?

A GNSS receiver relies on precise timing and frequency references to process satellite signals and calculate position, velocity, and time. A stable local GPS oscillator helps the receiver maintain an accurate frequency reference for signal acquisition and tracking.

Temperature changes can cause a quartz-based oscillator to drift from its nominal frequency. This can affect the receiver's ability to process incoming signals consistently, especially in equipment exposed to outdoor, automotive, or other variable-temperature environments.

For this reason, a crystal oscillator for GPS module applications should be evaluated by more than its nominal frequency. Key factors include TCXO frequency stability, operating temperature range, phase noise, aging, supply sensitivity, and load sensitivity. A stable reference helps provide more predictable GNSS performance under changing operating conditions.

Why Are TCXOs Used Instead of Standard Crystal Oscillators in GNSS?

A standard quartz crystal provides a resonant frequency, but a complete oscillator also requires circuitry to generate and maintain the electrical oscillation. The main limitation is that the frequency of an uncompensated crystal-based oscillator changes with temperature.

A TCXO for GPS addresses this problem by combining a quartz resonator with temperature-sensing and compensation circuitry. The circuit detects temperature-related frequency changes and applies a correction so that the oscillator's output remains closer to its nominal frequency. The distinction can be summarized as follows:

This does not mean that every GNSS receiver requires a TCXO. The appropriate frequency reference depends on receiver architecture, accuracy requirements, environmental conditions, power budget, and cost targets. High-end systems may use an OCXO or another higher-performance reference when their application requires substantially tighter stability.

The European Space Agency has also documented GNSS receiver architectures incorporating either TCXO or OCXO reference clocks, illustrating that oscillator selection is part of the receiver's overall performance design rather than an isolated component decision.

For many compact GNSS devices, however, the GPS TCXO offers a useful middle ground. It can provide substantially better temperature stability than a basic crystal oscillator without the size, power consumption, and thermal-control requirements associated with an oven-controlled design.

How Does a TCXO Improve GNSS Performance?

The value of a GPS TCXO comes from controlling one of the receiver's fundamental sources of frequency error. Its benefits can be considered across several areas.

1. Better frequency stability across temperature

The most direct advantage is improved TCXO frequency stability. Instead of allowing the oscillator's frequency to change freely as the ambient temperature moves, the compensation circuit counteracts temperature-dependent frequency changes.

For GNSS equipment, this can help maintain a more consistent local reference during changing operating conditions. The exact benefit depends on the receiver design and the oscillator specification, so the TCXO's data sheet should always be considered when selecting a component.

SJK's current TCXO portfolio lists frequency-stability options reaching ±0.05 ppm, while individual product series commonly specify ±0.5 ppm characteristics under defined conditions. Its products cover operating-temperature options including -40°C to +85°C for several series.

2. More reliable signal acquisition and tracking

GNSS receivers must search for and track weak satellite signals. A stable reference helps the receiver maintain an accurate local frequency against which incoming signals can be processed.

A crystal oscillator for GPS module with appropriate stability can therefore support the receiver's RF and digital processing stages by reducing frequency uncertainty. It does not independently determine positioning accuracy, but it contributes to the conditions needed for stable receiver operation.

This distinction is important: a better GPS oscillator cannot compensate for poor antenna performance, multipath, interference, satellite geometry, or weaknesses in receiver algorithms. Instead, the oscillator is one component within a larger GNSS signal chain.

3. A practical balance of size, power, and performance

Portable GNSS equipment often has strict space and power constraints. Smartphones, tracking devices, wearables, vehicle electronics, and IoT products cannot necessarily accommodate a large, power-intensive frequency reference.

A compact GPS TCXO can provide temperature-compensated performance in a small SMD package. SJK, for example, offers TCXO and VC-TCXO packages ranging from 1612 and 2016 to 2520, 3225, 5032, and 7050 sizes. Its portfolio covers frequencies from 32.768 kHz to 125 MHz.

4. Frequency adjustment when system design requires it

Some GNSS designs benefit from a voltage-controlled frequency reference. In these cases, a VC-TCXO combines temperature compensation with voltage-based frequency adjustment.

This can be useful where the receiver architecture needs to fine-tune the oscillator frequency or integrate it into a control loop. The appropriate choice between a fixed GPS TCXO and a VC-TCXO depends on the receiver's reference architecture and required control range.

For example, SJK's 8W 3225 series offers a VC-TCXO option with a specified frequency-control range, while the series is designed for applications including GPS/GNSS, telecommunications, IoT, and wireless equipment.

SJK GPS TCXO Solutions for GNSS Applications

SJK provides GPS TCXO and VC-TCXO products designed for applications where frequency accuracy and temperature stability are important. The company's TCXO portfolio includes multiple package sizes, output configurations, voltage options, and frequency ranges, allowing engineers to select a component according to their receiver architecture rather than relying on a single standard device.

For GNSS designs, several specifications deserve particular attention:

• Frequency stability: Determines how closely the output remains to its specified frequency under defined environmental conditions. SJK's product range includes models with ±0.5 ppm specifications and a portfolio-level maximum stability claim of up to ±0.05 ppm for selected solutions.
• Operating temperature: Products are available with temperature ranges such as -40°C to +85°C, which can be relevant for outdoor and automotive equipment.
• Package and frequency: Compact SMD options help designers balance PCB space with required frequency performance.
• Output and supply voltage: Depending on the series, SJK offers clipped-sine-wave or CMOS outputs and supply-voltage options from low-voltage 1.8 V designs to higher-voltage configurations.

The 5T SMD 5032 TCXO/VC-TCXO, for instance, uses a 5.0 × 3.2 mm package and supports 6.4–52 MHz frequencies. SJK identifies GPS/GNSS among its intended applications and offers both TCXO and VC-TCXO configurations in the series.

The 8W SMD 3225 series provides another compact option, with a 2.5 × 2.0 mm package and versions supporting 6.4–52 MHz. The product documentation specifies low-voltage operation, low phase noise, and GPS/GNSS applications.

When selecting a GPS oscillator, engineers should therefore compare the complete specification rather than focusing on nominal frequency alone. Frequency stability versus temperature, supply sensitivity, load sensitivity, aging, phase noise, current consumption, package dimensions, and output type can all affect whether a particular GPS TCXO is appropriate for the intended GNSS module.

SJK's published product information and datasheets allow these parameters to be evaluated before design selection, and the company also offers samples for application-level testing.

Conclusion

A GPS TCXO is widely considered when a GNSS receiver needs a more stable frequency reference than a basic crystal oscillator can provide, particularly when temperature changes are expected. By combining quartz resonance with temperature compensation, a TCXO for GPS can offer a practical balance of frequency stability, compact size, low power consumption, and cost for many GNSS designs.

For engineers seeking a crystal oscillator for GPS module applications, SJK offers a broad TCXO and VC-TCXO portfolio covering multiple frequencies, packages, output types, and stability specifications, making it a manufacturer worth evaluating for GNSS frequency-control requirements.

FAQ

What is a GPS TCXO?

A GPS TCXO is a temperature-compensated crystal oscillator designed to provide a stable frequency reference for GPS and other GNSS receiver applications. It reduces frequency drift caused by temperature changes.

Why is a TCXO used in GPS modules?

A TCXO for GPS helps maintain a more stable frequency reference when operating temperatures change. This can support consistent signal acquisition and tracking in GNSS receivers.

What is the difference between a GPS TCXO and a standard crystal oscillator?

The main difference is temperature compensation. A standard crystal oscillator can experience greater frequency drift as temperature changes, while a GPS TCXO uses compensation circuitry to improve frequency stability across its specified temperature range.

What TCXO frequency stability is suitable for GNSS applications?

The appropriate TCXO frequency stability depends on the GNSS receiver architecture and performance requirements. Applications with tighter timing requirements generally need a more stable oscillator, so engineers should evaluate stability, temperature range, phase noise, aging, and other specifications together.

Can a TCXO be used for applications other than GPS?

Yes. Although commonly used as a GPS oscillator, TCXOs are also suitable for telecommunications, wireless communication, IoT, networking, automotive electronics, and other applications that require stable frequency references.

How do I choose a crystal oscillator for a GPS module?

When selecting a crystal oscillator for GPS module applications, consider frequency, frequency stability over temperature, operating temperature range, supply voltage, output type, phase noise, package size, power consumption, and aging characteristics. The oscillator should match the electrical and environmental requirements of the specific GNSS receiver.
