HomeMEMS Oscillator
Products
| Series | Photo | Package | Frequency Range |
Output | Supply Voltage |
Frequency Stability |
Operating Temperature |
Datasheet |
|---|---|---|---|---|---|---|---|---|

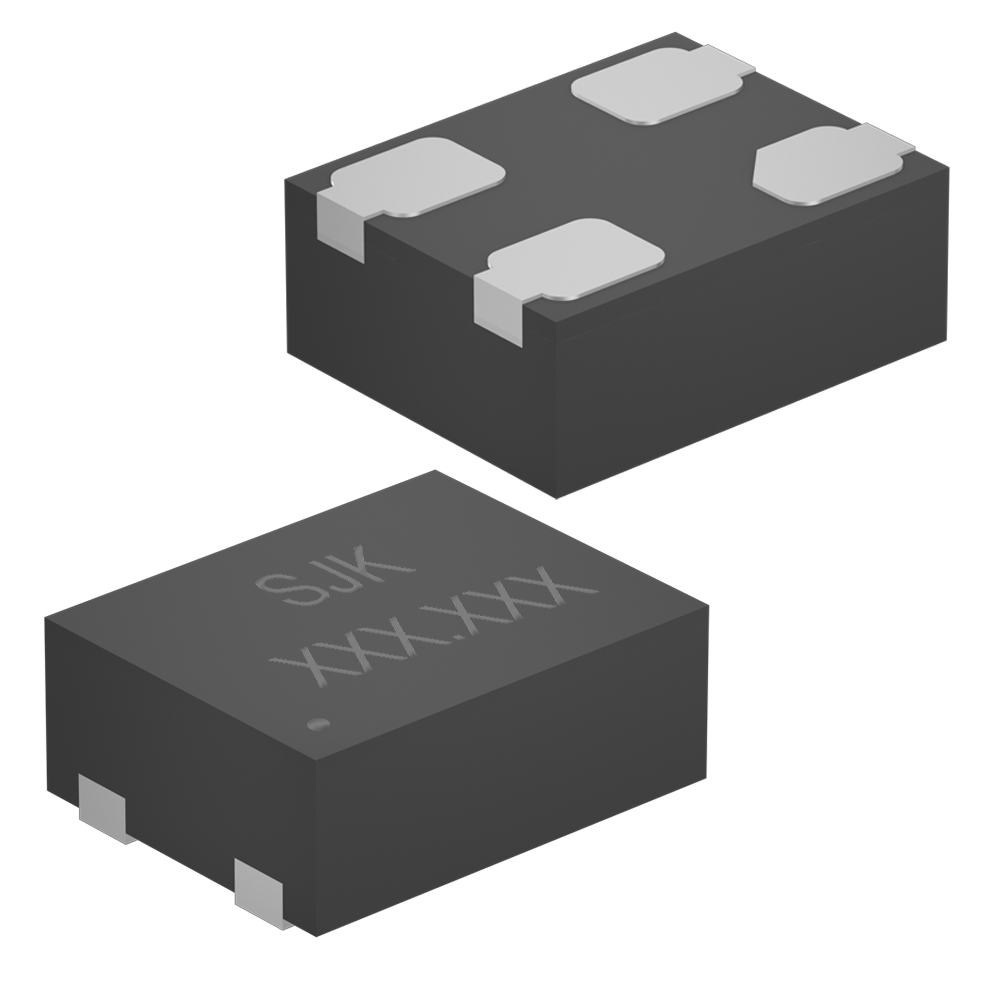

| SJK8008 Low Power |  |
2016 /2520 /3225 5032 /7050 4-SMD |
1~110MHz | LVCMOS | 1.8V~3.3V | ±20ppm | -40~+85℃ | Datasheet |

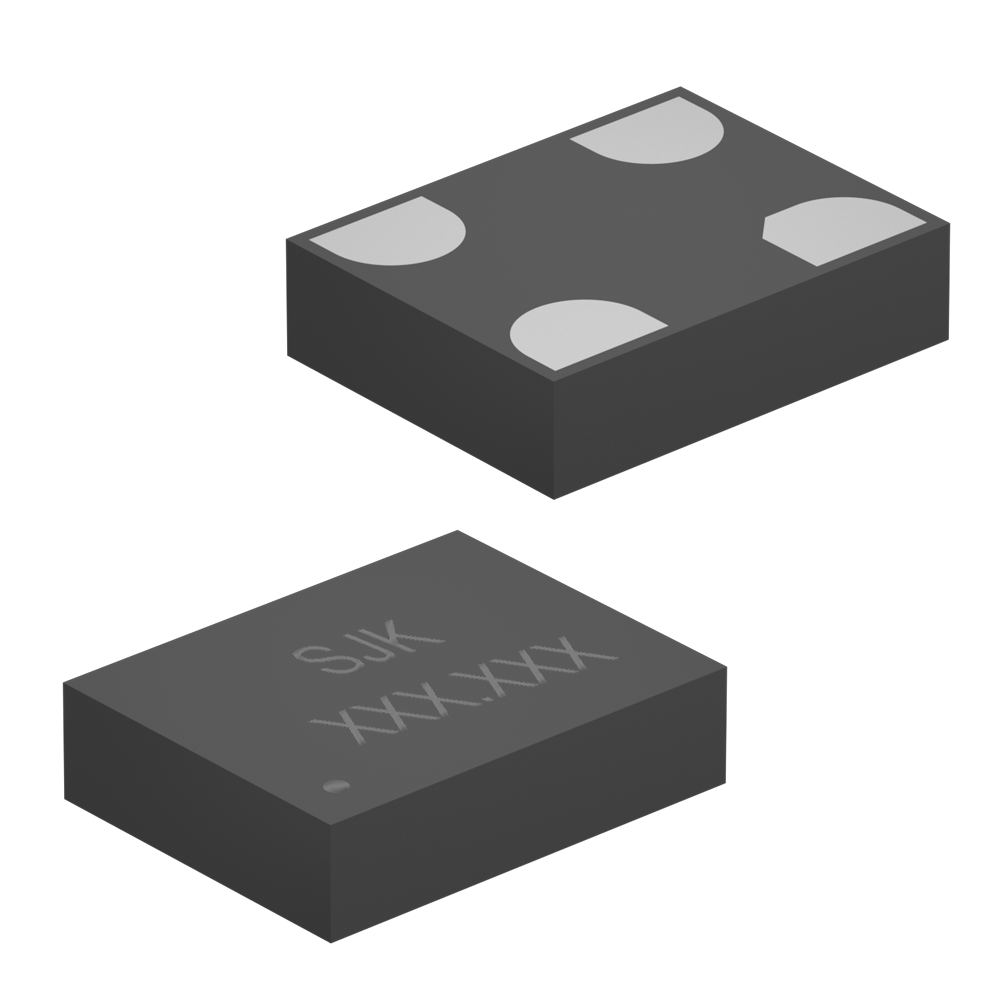

| SJK8009 Low Power | |
2016 /2520 /3225 5032 /7050 4-SMD |
115~137MHz | LVCMOS | 1.8V~3.3V | ±20ppm | -40~+85℃ | Datasheet |

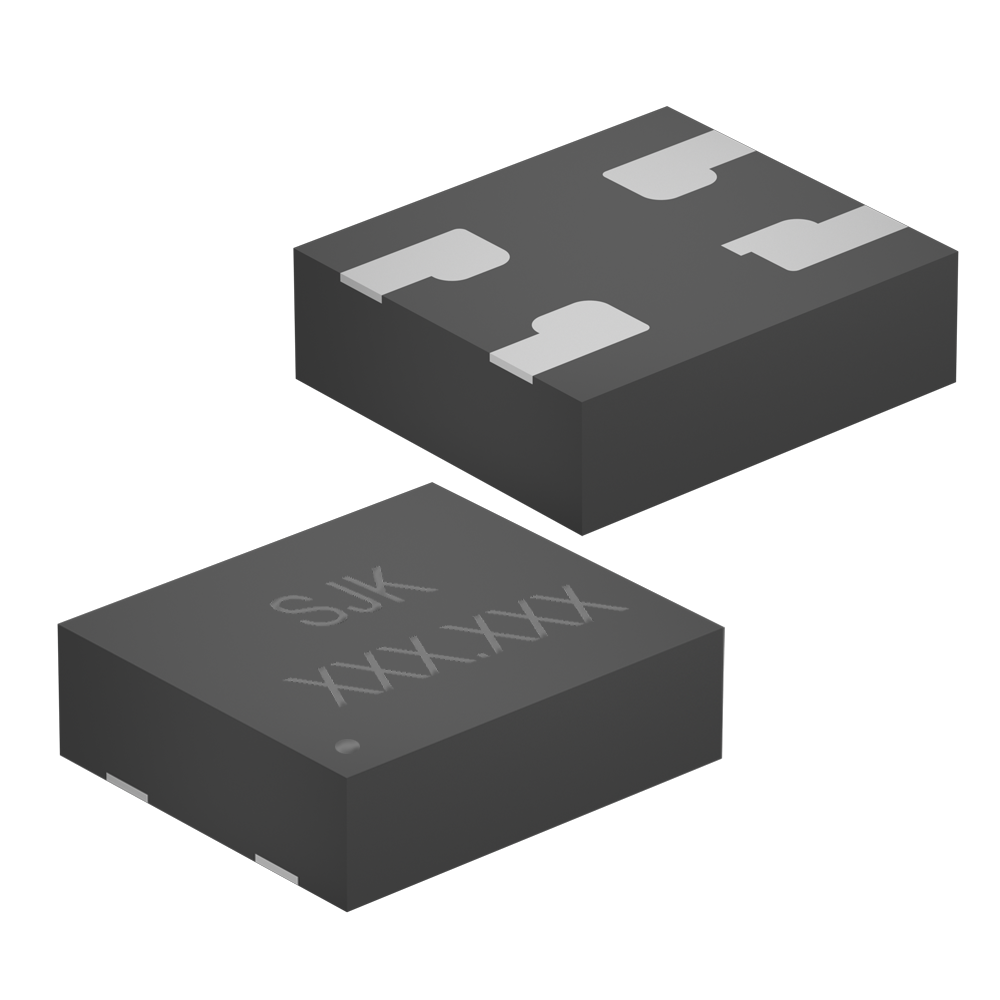

| SJK8208 High Performance | |
2520 /3225 /5032 /7050 4-SMD | 1~80MHz | LVCMOS | 1.8V~3.3V | ±10ppm | -40~+85℃ | Datasheet |

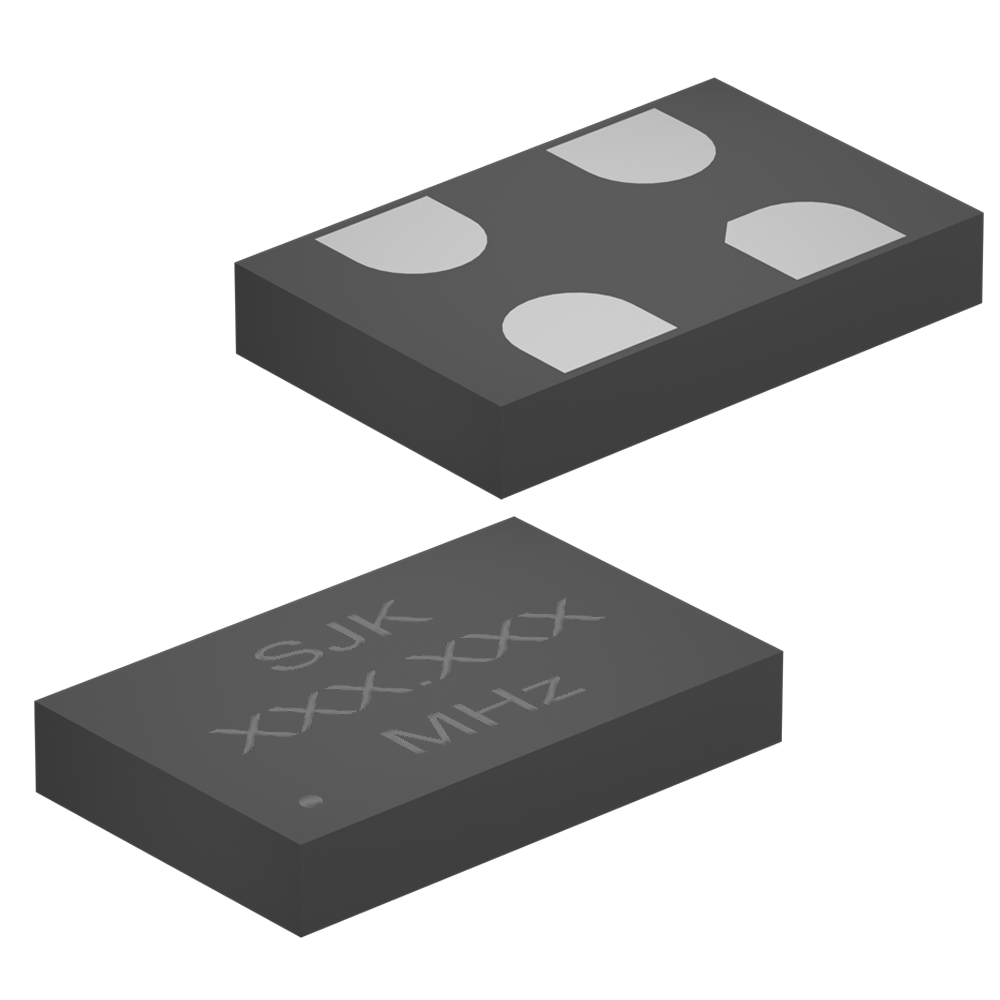

| SJK8209 High Performance | |
2520 /3225 /5032 /7050 4-SMD | 80~220MHz | LVCMOS | 1.8V~3.3V | ±10ppm | -40~+85℃ | Datasheet |

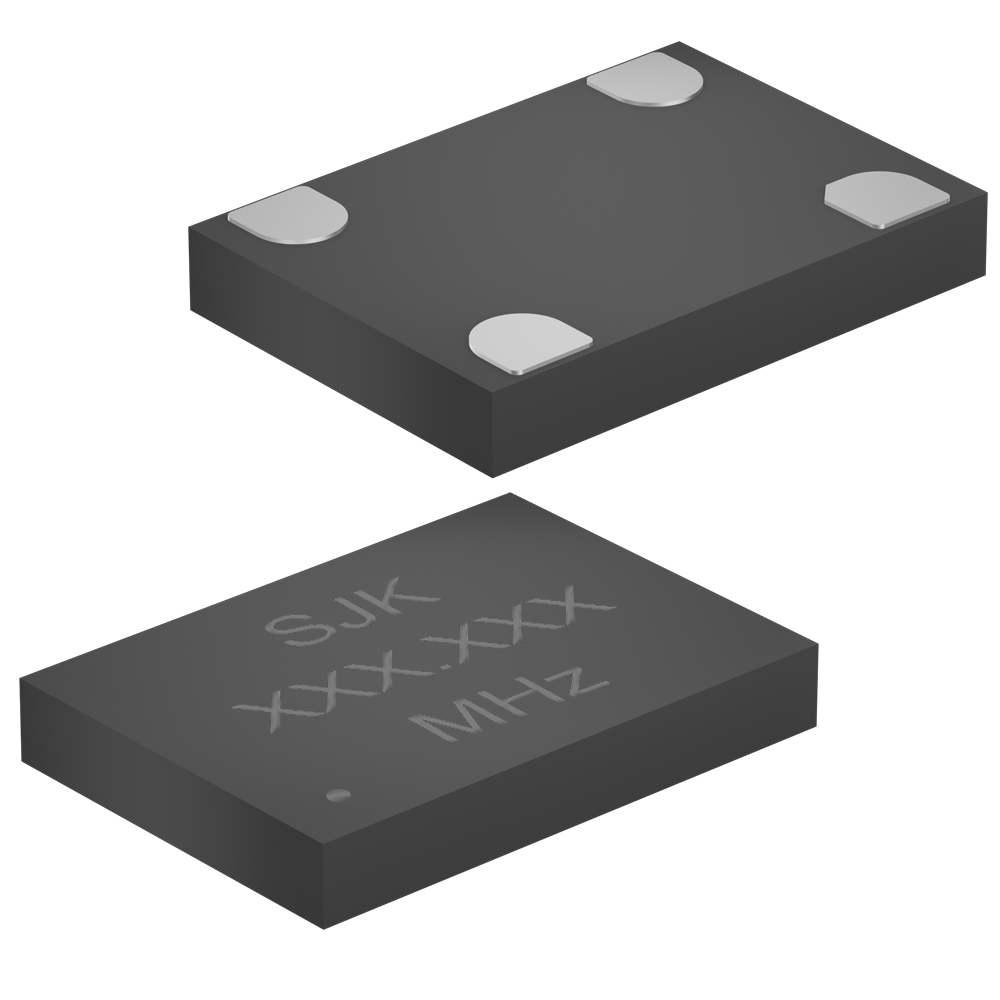

| SJK8918 High Temperature | |
2016 /2520 /3225 5032 /7050 4-SMD |
1~110MHz | LVCMOS | 1.8V~3.3V | ±20ppm | -40~+125℃ | Datasheet |
| SJK8919 High Temperature | |
2016 /2520 /3225 5032 /7050 4-SMD |
115~137MHz | LVCMOS | 1.8V~3.3V | ±20ppm | -40~+125℃ | Datasheet |
| SJK9005 Spread Spectrum | |
2016 /2520 /3225 4-SMD | 1~141MHz | LVCMOS | 1.8V~3.3V | ±20ppm | -40~+85℃ | Datasheet |
| SJK9121 Differential MEMS | |
3225 /5032 /7050 6-SMD | 1~220MHz | LVPECL /LVDS | 2.5V /3.3V | ±20ppm | -40~+85℃ | Datasheet |

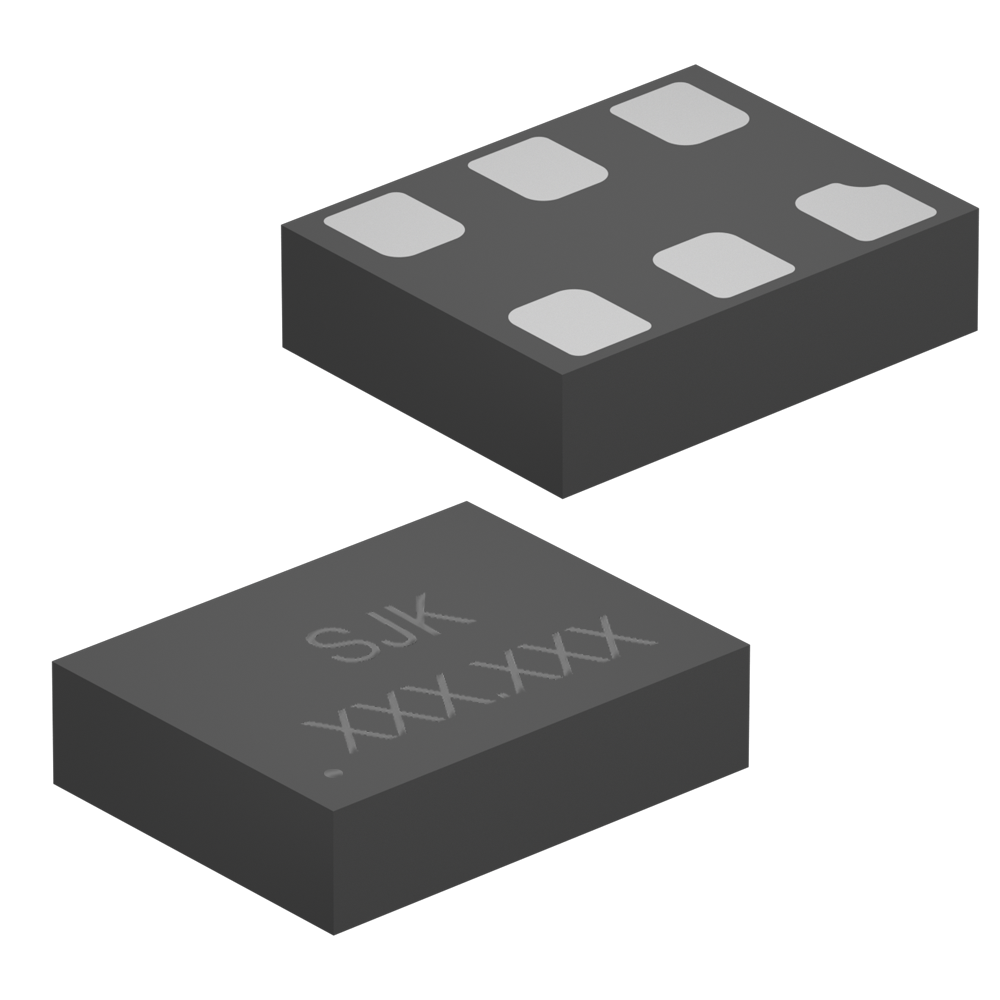

| SJK9122 Differential MEMS | |
3225 /5032 /7050 6-SMD | 220~625MHz | LVPECL /LVDS | 2.5V /3.3V | ±20ppm | -40~+85℃ | Datasheet |

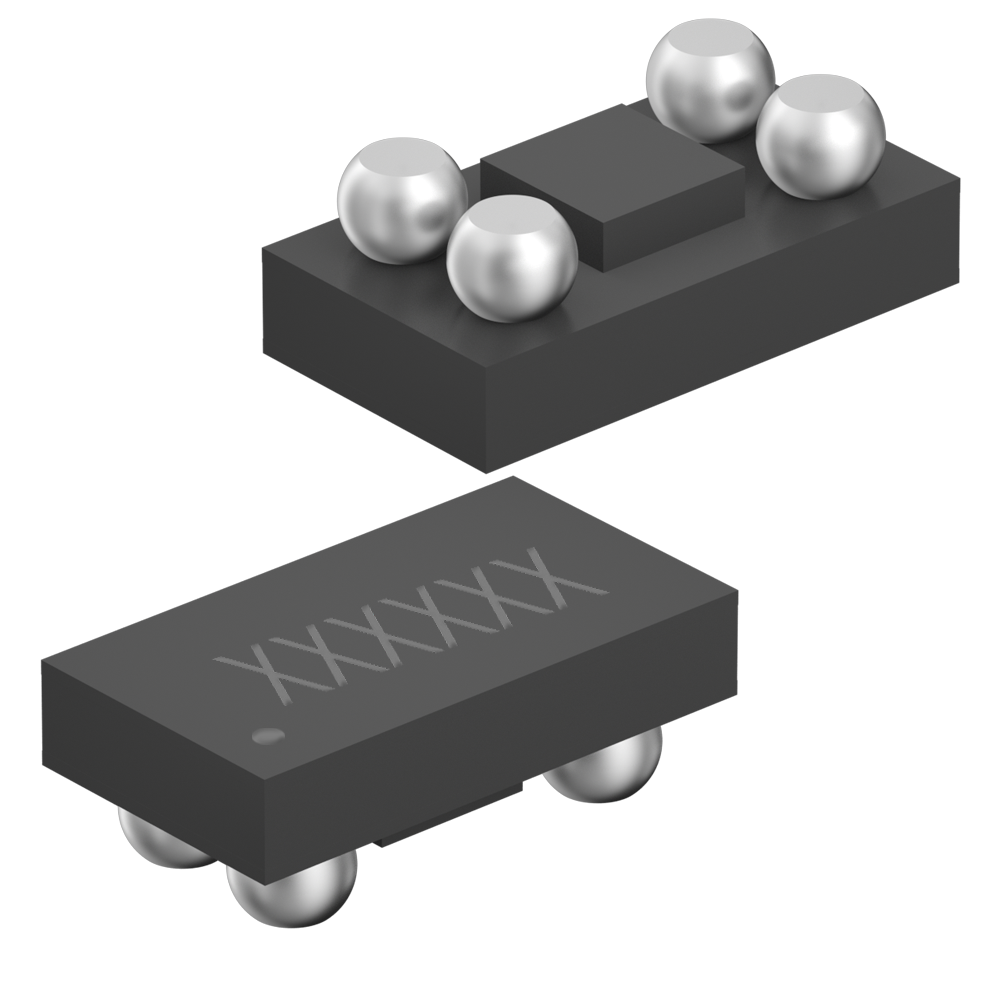

| SJK1532 SMD1508 32K MEMS | |
1508 4-SMD | 32.768KHz | LVCMOS | 1.8V~3.3V | ±10ppm | -40~+85℃ | Datasheet |
| SJK1532 SMD2012 32K MEMS | |
2012 4-SMD | 32.768KHz 16.384KHz |
LVCMOS | 1.8V~3.3V | ±20ppm | -40~+85℃ | N/A |
